Description
Tailstock

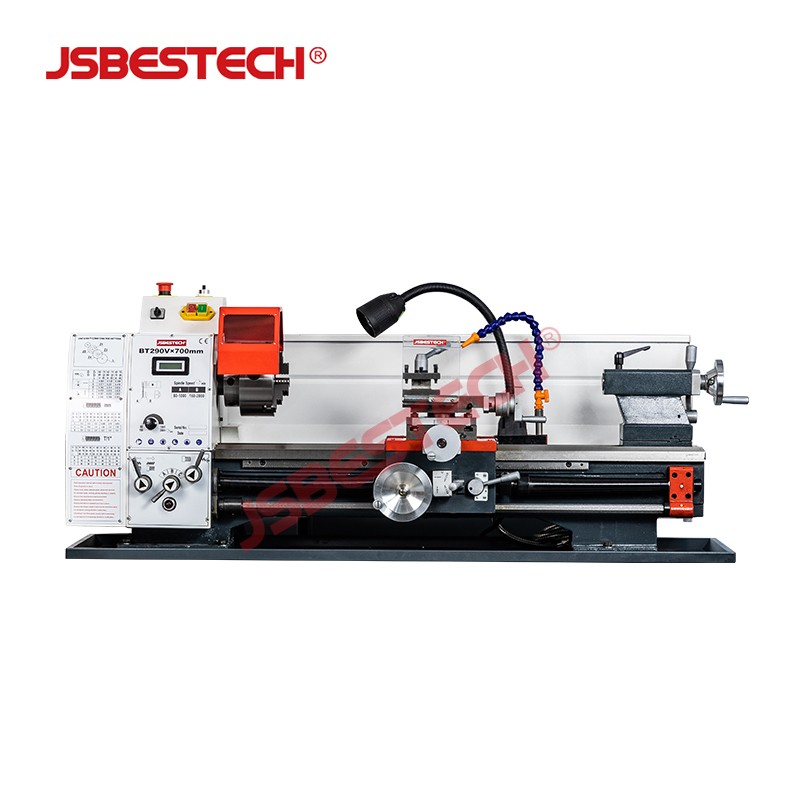

BT290V Bench Lathe Machine Technical Date
Machine Dates
Electrical Connection
110V--230V / 50--60Hz
Motor Power
1500W
Working Areas
Centre Height
145mm
Turning Diameter (Max.)
290mm
Bed Width
182mm
Distance Between Centers
700mm
Speeds
Electronically adjustable speed
50--2000 r.p.m
Headstock
Spindle Taper
MT 5
Spindle Drilling
φ38mm
Slide
Travel Top Slide
70mm
Travel Cross Slide
190mm
Range Of Metric Threads
0.2-3.5mm
Range Of Inch Threads
8-48T.P.l
Tool Holder Seat Height
MAX.16mmX16mm
Tailstock Taper
MT 3
Tailstock Sleeve Travel
70mm
Standard Accessories
Optional Accessories
3-jaw chuck
MT2 Dead center
4-jaw chuck
Follow rest
Change gear set
Wrench set
Steady rest
Face plate
Center MT2
Change gear
Lead screw cover
Working lamp
Tool box
Cooling pump
Quick change tool post
Stand
Tool post cover
Jiangsu Bestech Industrial Co, Ltd. is a professional machine tool supplier with 15 years experience.We are concentrated in
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, MIlling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
