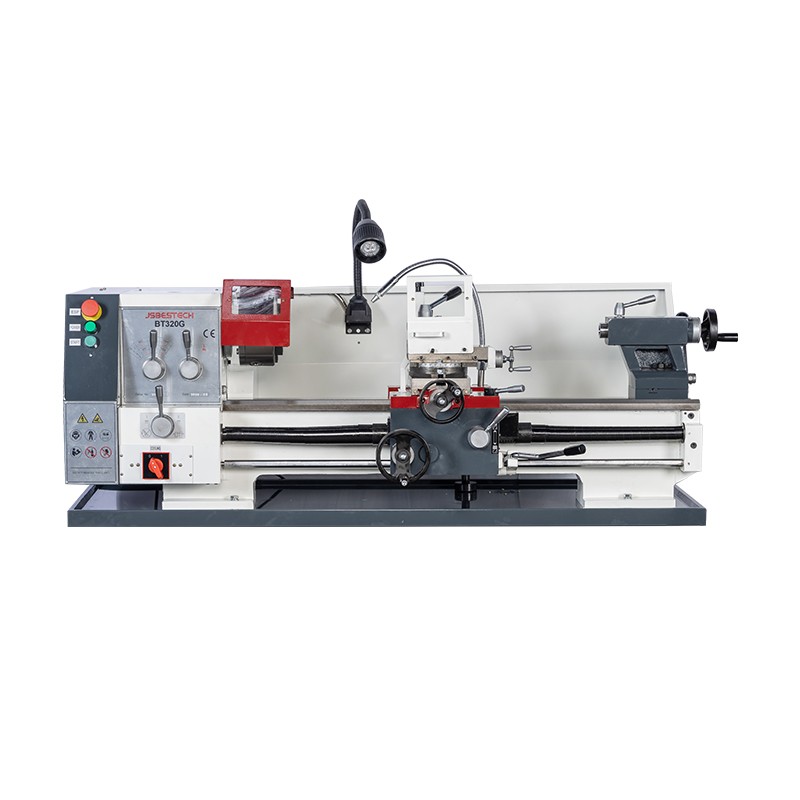

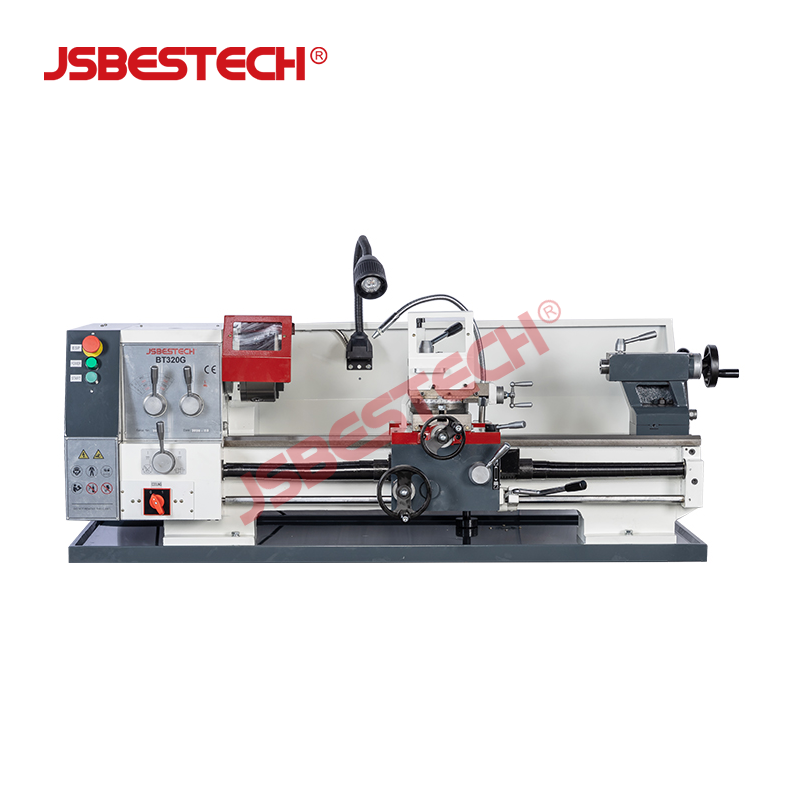

Professional BT320G 320mm Max. Swing Over Bed Lathe Machine for Mechanical Manufacturing

Professional BT320G Lathe Machine for Mechanical Manufacturing

The BT320G is a professional lathe machine engineered for precision turning in mechanical manufacturing environments. With a maximum swing over bed of 320 mm, it accommodates a wide range of workpieces while maintaining rigidity and accuracy. This model is ideal for workshops, tool rooms, and production facilities requiring reliable performance on medium-sized components.

Key Specifications

• Max. swing over bed: 320 mm
• Max. length of work piece: 750 mm
• Max. swing diameter over tool post: 210 mm
• Spindle bore: 38 mm

These specifications make the BT320G suitable for turning shafts, discs, and other cylindrical parts up to 750 mm in length. The 38 mm spindle bore allows for bar work and accommodates a variety of collets and chucks.

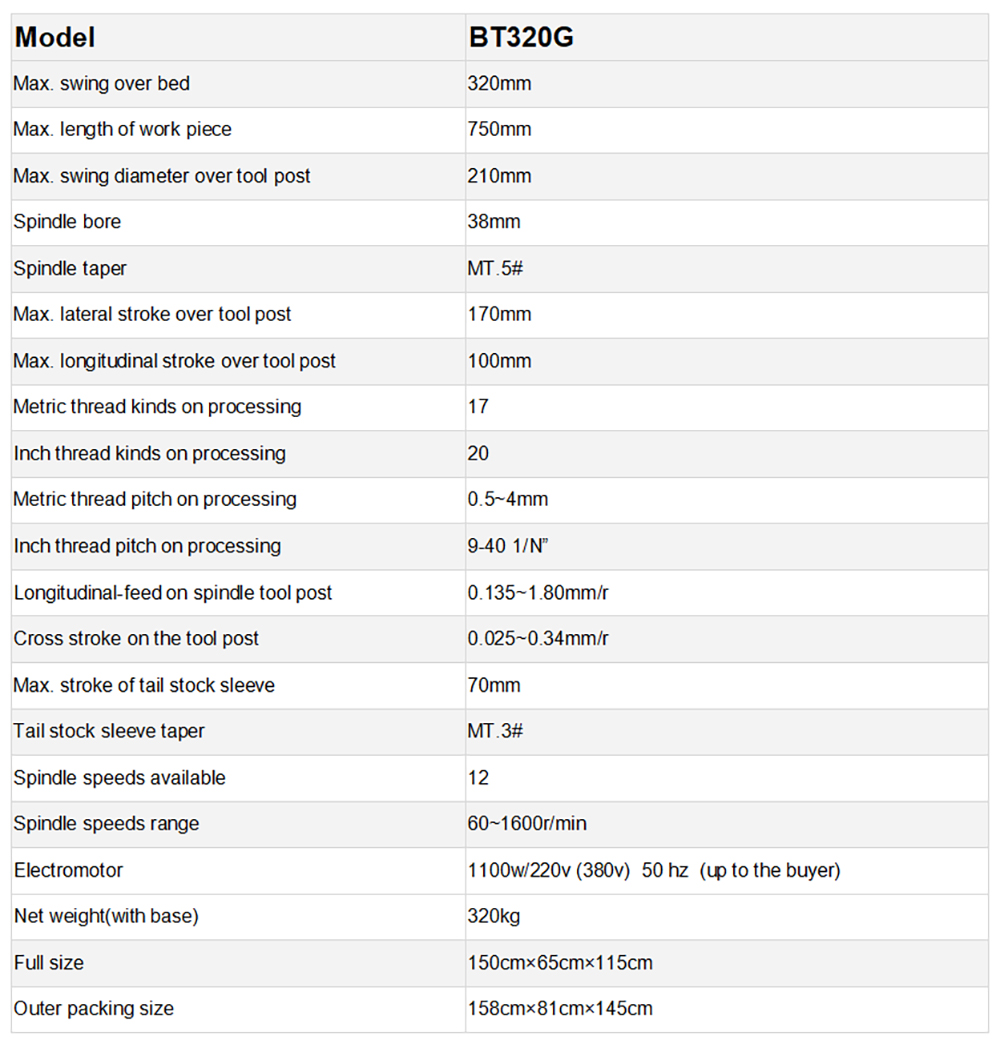

Model	BT320G
Turning Diameter (Max.)	Ø320mm
Swing Over Cross Slide	Ø210mm
Distance Between Centers	750mm
Center Height	160mm
Width Of Bed
Spindle Bore	Ø38mm
Taper Of Spindle Bore	MT5
Spindle Speed (12 Steps)	60~1600rpm
Top Slide Travel	100mm
Cross Slide Travel	170mm
Max. Section Of Tools	12x12mm
Range Of Metric Threads (17 Kinds)	0.5~4mm
Range Of Inch Threads (20 Kinds)	9~40T.P.l
Tailstock Quill Diameter
Tailstock Quill Travel	70mm
Taper Of Tailstock Quill	MT3
Motor Power (Double Motor)	1.1kw
Voltage	380V~440V (3PH)
Packing Size	1580x810x1450mm

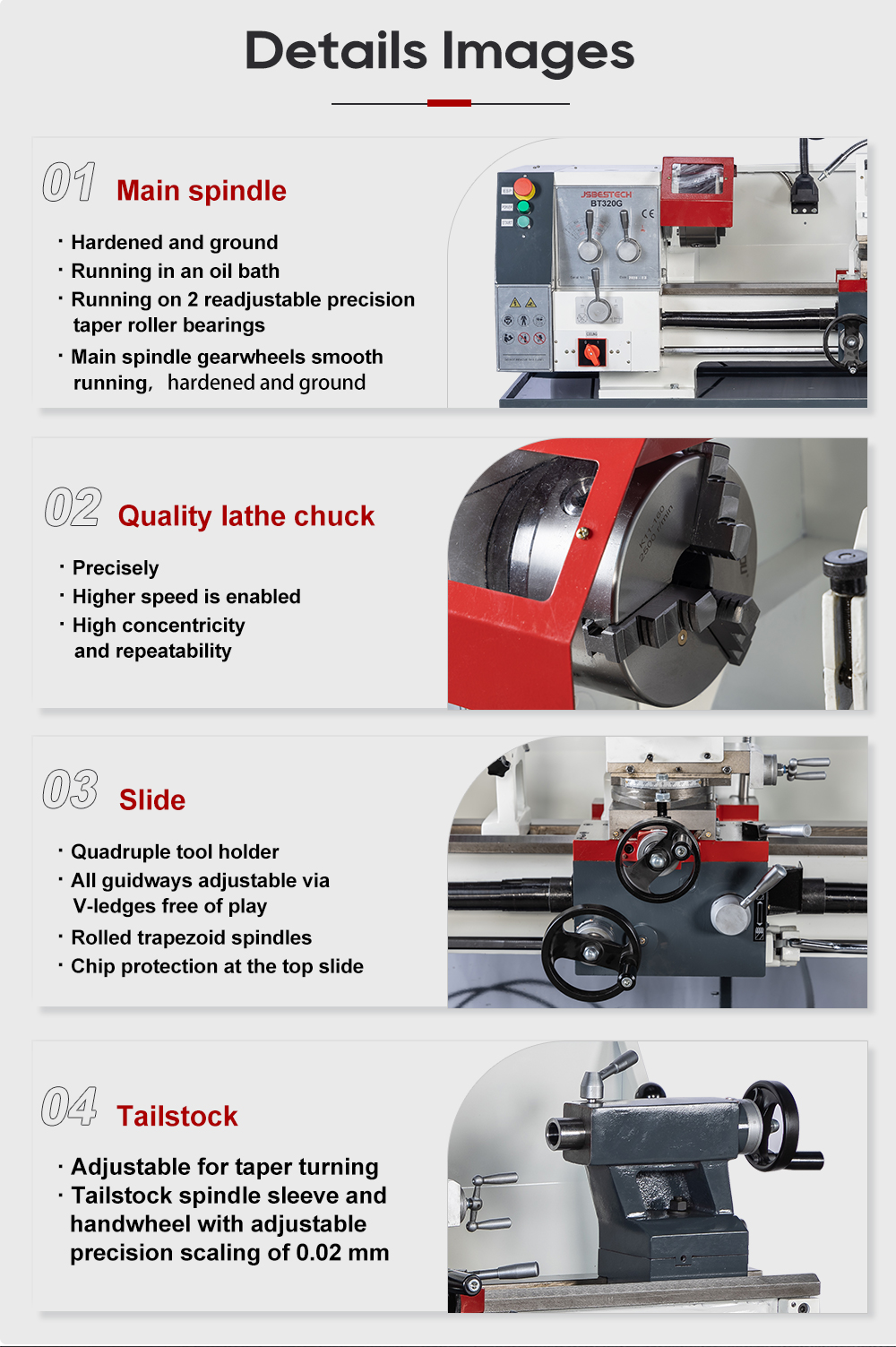

Construction and Design

Built with a robust bed and precision-ground guideways, the BT320G delivers stable cutting performance even under load. The headstock and tailstock are aligned for accurate turning, while the carriage and cross-slide provide smooth manual control. The machine is designed for ease of operation and maintenance, with accessible lubrication points and clear control layout.

Available in standard industrial colors and configurations, the BT320G can be tailored to specific workshop requirements. Its compact footprint and weight distribution ensure stability without requiring excessive floor space.

Applications

The BT320G is widely used in mechanical manufacturing for operations such as turning, facing, threading, and drilling. It is particularly effective for producing replacement parts, prototypes, and small-batch components. Whether used in a job shop or as part of a larger production line, this lathe provides consistent results.

Why Choose the BT320G?

• Generous 320 mm swing over bed for versatile workpiece handling
• 750 mm maximum workpiece length supports longer shafts
• 210 mm swing over tool post allows for larger diameter turning
• 38 mm spindle bore for bar feeding and collet work
• Professional-grade construction for demanding manufacturing environments

For mechanical manufacturing professionals seeking a dependable lathe with practical capacity, the BT320G offers a balanced combination of size, power, and precision. Contact Jiangsu Bestech Industrial Co., Ltd. for more information on configurations and availability.
