Parallel Lathe MP125 Hot Sales Multi-purpose Milling Lathe and Drilling Machine Combo

Parallel Lathe MP125: Multi-Purpose Milling, Lathe, and Drilling Combo

The MP125 from Jiangsu Bestech Industrial Co., Ltd. is a compact, versatile machine that combines turning, milling, and drilling functions in one unit. Designed for small workshops, hobbyists, and light industrial applications, it delivers reliable performance in a space-saving design.

Key Specifications

• Swing Diameter Over Bed: 125 mm
• Length of Work Piece: 180 mm
• Swing Diameter Over Tool Post: 60 mm
• Spindle Bore: 9 mm

These specifications make the MP125 suitable for machining small metal and plastic parts with precision. The 125 mm swing over bed allows for turning moderately sized workpieces, while the 180 mm length capacity accommodates a variety of projects.

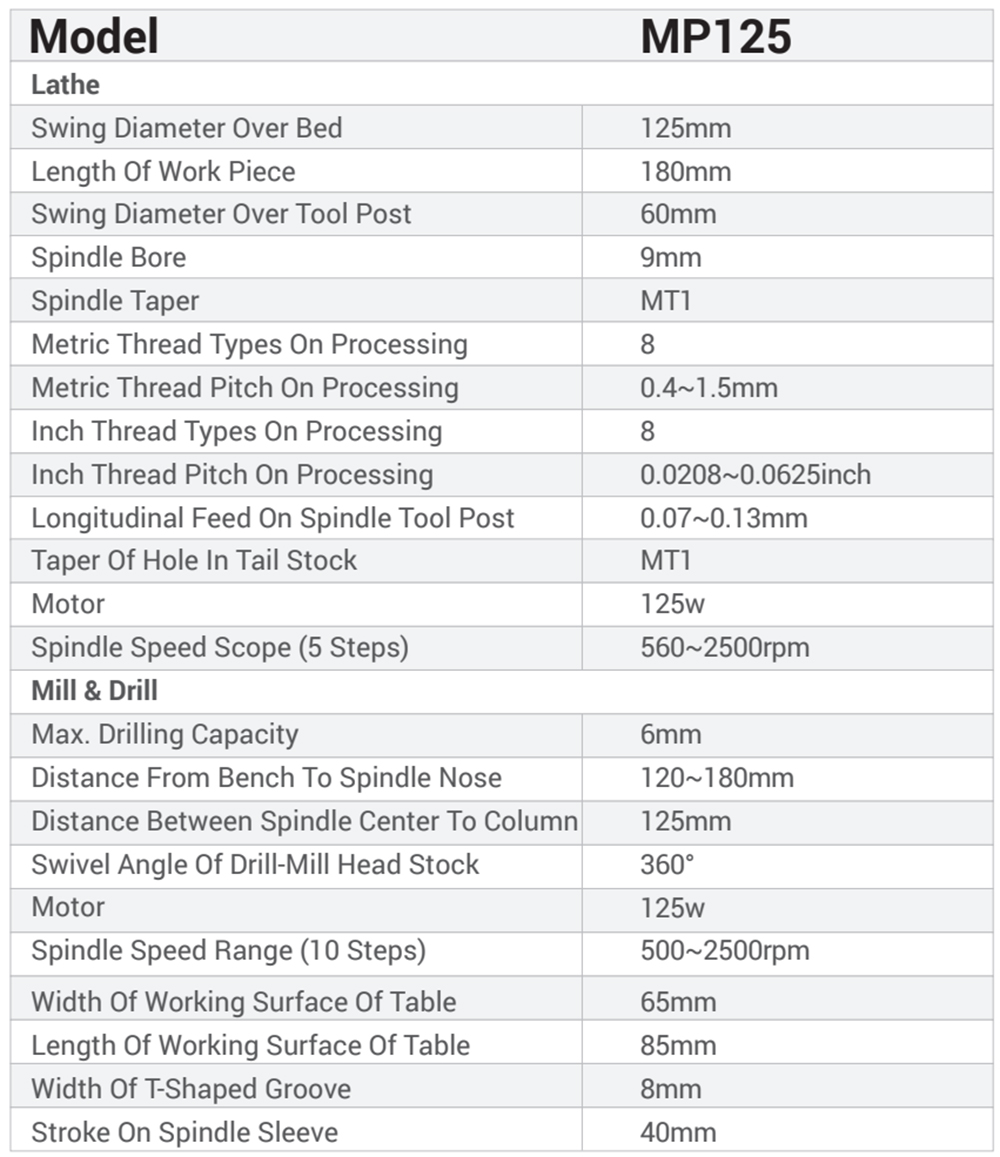

Model	MP125
Lathe
Swing Diameter Over Bed	125mm
Length Of Work Piece	180mm
Swing Diameter Over Tool Post	60mm
Spindle Bore	9mm
Spindle Taper	MT1
Metric Thread Types On Processing	8
Metric Thread Pitch On Processing	0.4~1.5mm
Inch Thread Types On Processing	8
Inch Thread Pitch On Processing	0.0208~0.0625inch
Longitudinal Feed On Spindle Tool Post	0.07~0.13mm
Taper Of Hole In Tail Stock	MT1
Motor	125w
Spindle Speed Scope (5 Steps)	560~2500rpm
Mill & Drill
Max. Drilling Capacity	6mm
Distance From Bench To Spindle Nose	120~180mm
Distance Between Spindle Center To Column	125mm
Swivel Angle Of Drill-Mill Head Stock	360°
Motor	125w
Spindle Speed Range (10 Steps)	500~2500rpm
Width Of Working Surface Of Table	65mm
Length Of Working Surface Of Table	85mm
Width Of T-Shaped Groove	8mm
Stroke On Spindle Sleeve	40mm

Multi-Function Capability

With the MP125, you can perform multiple operations without switching machines. The integrated milling and drilling functions expand its utility, making it a true multi-purpose tool for prototyping, repair work, and small-batch production.

• Turning: Ideal for creating cylindrical parts.
• Milling: Shape flat surfaces, slots, and grooves.
• Drilling: Bore holes accurately with the drilling attachment.

Additional Attributes

The MP125 is available in various sizes, colors, and weights to meet different user preferences. It is offered under the brand name of the manufacturer, ensuring quality and support. For specific details on size, color, weight, and brand, please refer to the product label or contact the supplier.

Why Choose the MP125?

This lathe combo is an excellent choice for those who need a compact, cost-effective solution for metalworking. Its robust construction and user-friendly design make it a popular option in the market. Whether you are a professional machinist or a DIY enthusiast, the MP125 offers the flexibility and performance you need.

For more information about the MP125 Parallel Lathe, please reach out to Jiangsu Bestech Industrial Co., Ltd.
