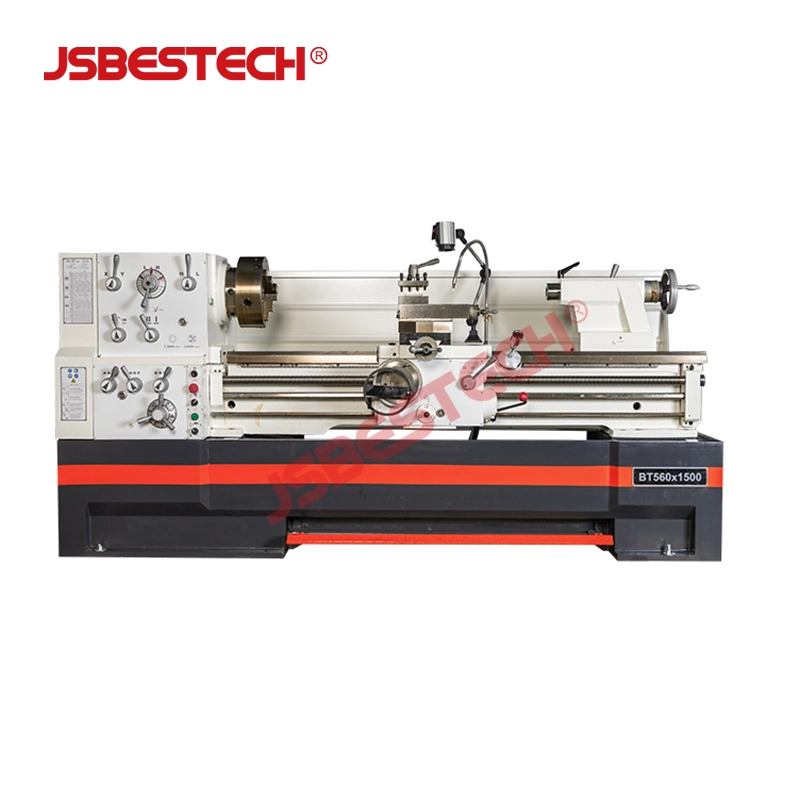

  • OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal - Image 1

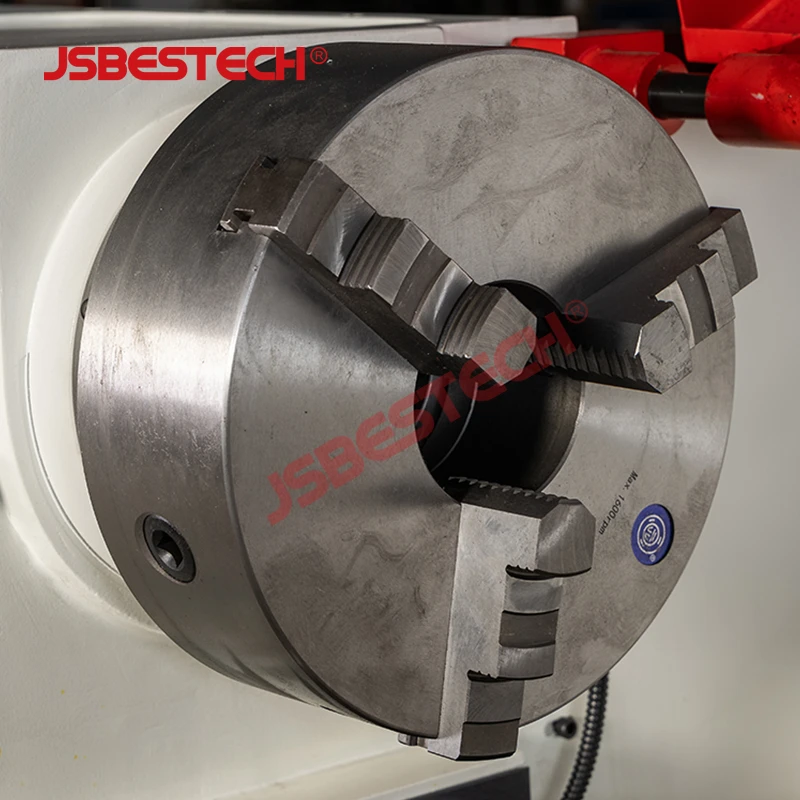

  • OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal - Image 2

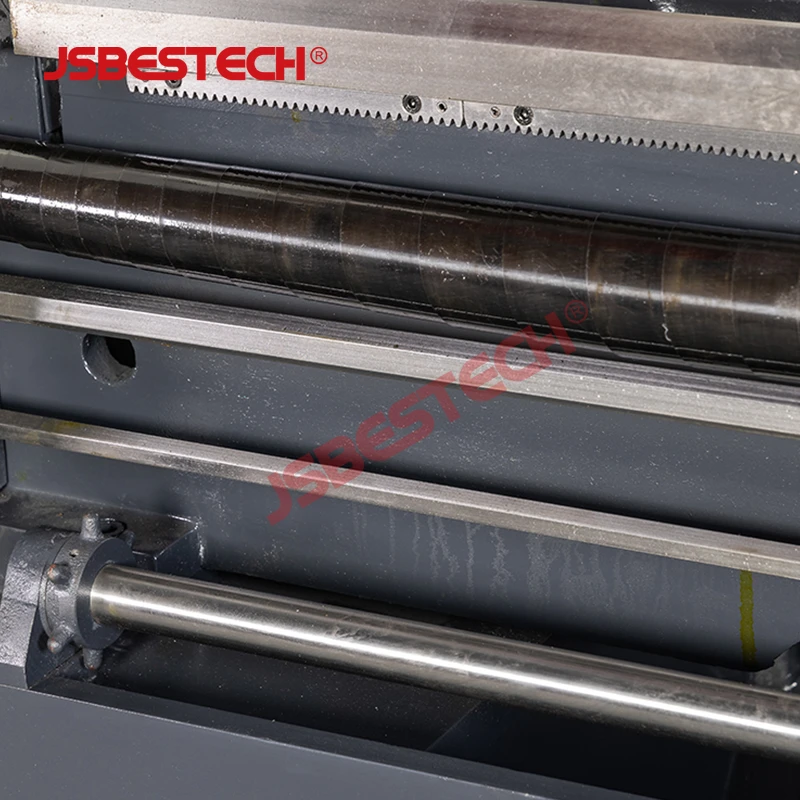

  • OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal - Image 3
OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal - Image 1OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal - Image 2OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal - Image 3

OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal

  • Swing over bed:560mm
  • Max.swing over cross slide:355mm
  • Swing in gap diameter:785mm
  • Distance between centers:1000mm/1500mm/2000mm/3000mm
    • iron lathe machine , industrial lathe machine , metal lathe for sale craigslist
    Inquiry Send Email

    OEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for MetalOEM/ODM Support 7.5KW BT560 Universal Lathe Machine Tornio for Metal

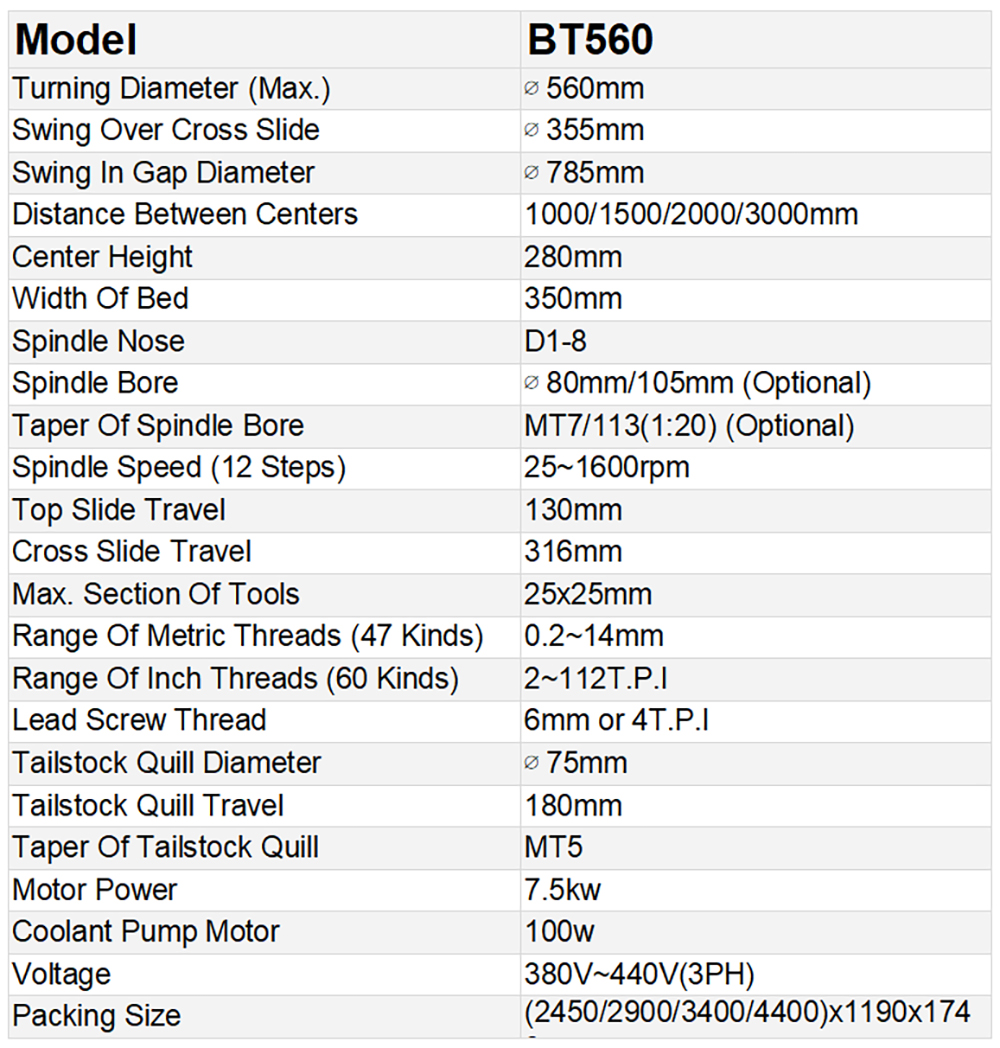

    Turning Diameter (Max.)
    		 Φ560mm
    Swing Over Cross Slide
    		 Φ355mm
    Swing In Gap Diameter
    		 Φ785mm
    Distance Between Centers
    		 1000/1500/2000/3000mm
    Center Height
    		 280mm
    Width Of Bed
    		 350mm
    Spindle Nose
    		 D1-8
    Spindle Bore
    		 Φ80mm/105mm (Optional)
    Taper Of Spindle Bore
    		 MT7/113(1:20) (Optional)
    Spindle Speed (12 Steps)
    		 25~1600rpm
    Top Slide Travel
    		 130mm
    Cross Slide Travel
    		 316mm
    Max. Section Of Tools
    		 25x25mm
    Range Of Metric Threads (47 Kinds)
    		 0.2~14mm
    Range Of Inch Threads (60 Kinds)
    		 2~112T.P.1
    Lead Screw Thread
    		 6mm or 4T.P.I
    Tailstock Quill Diameter
    		 Φ75mm
    Tailstock Quill Travel
    		 180mm
    Taper Of Tailstock Quill
    		 MT5
    Motor Power
    		 7.5kw
    Coolant Pump Motor
    		 100w
    Voltage
    		 380V~440V(3PH)

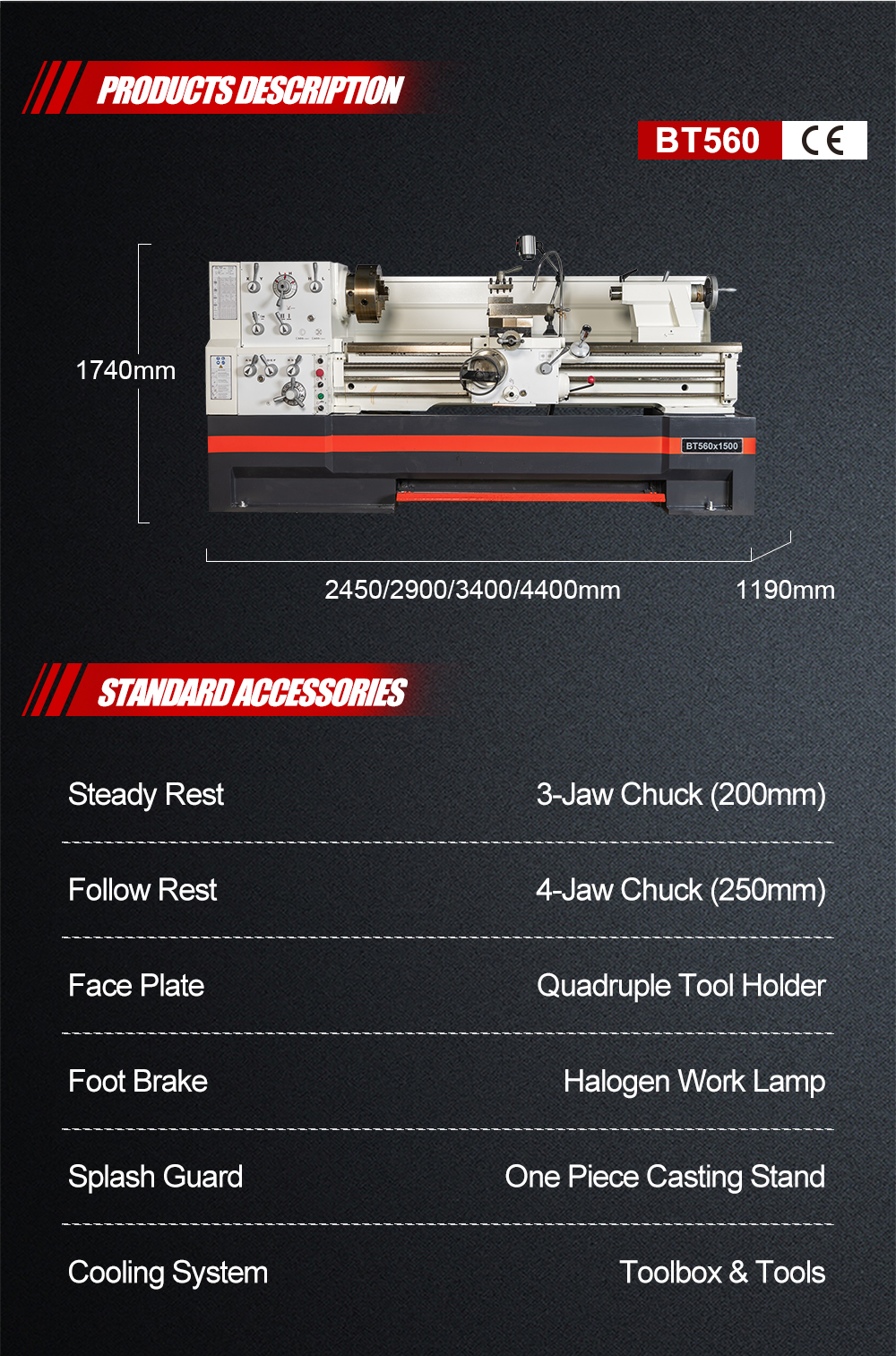

    Packing Size
    		 (2450/2900/3400/4400)x1190x174

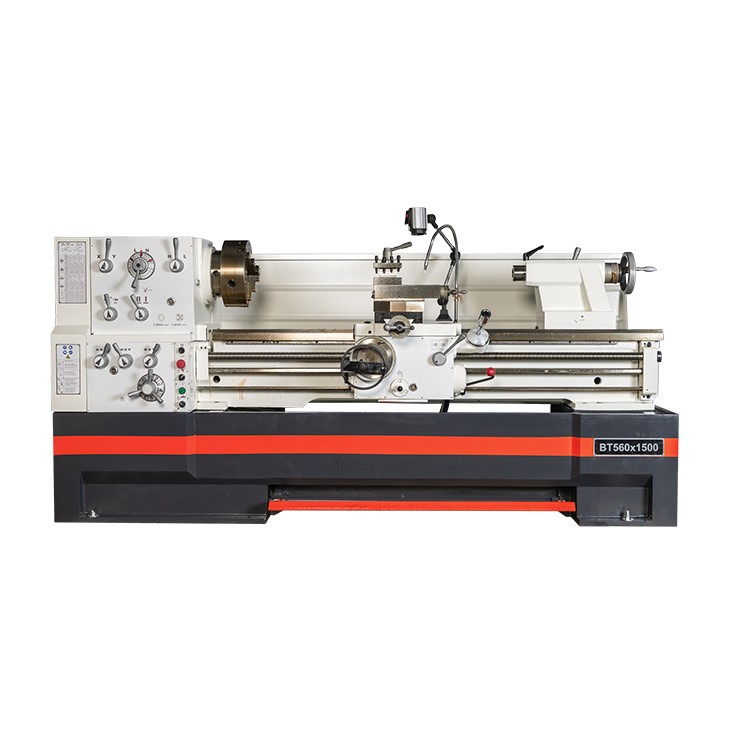

    BT560 Universal Lathe Machine for Metal

    The BT560 is a heavy-duty universal lathe designed for metal turning operations in workshops, maintenance facilities and production lines. With a 7.5KW main motor and a 560mm swing over bed, it handles a wide range of shaft, disc and sleeve workpieces. Jiangsu Bestech Industrial Co., Ltd. supplies this model with full OEM/ODM support, allowing buyers to adapt configuration, branding and packaging to their market.

    Key Specifications

    Swing over bed 560 mm
    Max. swing over cross slide 355 mm
    Swing in gap diameter 785 mm
    Distance between centers 1000 mm / 1500 mm / 2000 mm / 3000 mm
    Main motor power 7.5 KW

    Why Choose the BT560

    • Large swing capacity: 560mm over bed and 785mm in the gap allow turning of larger diameter parts without repositioning.
    • Flexible center distance: Four bed length options from 1000mm to 3000mm cover both short-shaft and long-shaft applications.
    • 7.5KW drive: Provides stable torque for roughing and finishing cuts in steel, cast iron and non-ferrous metals.
    • Universal function: Suitable for external turning, internal boring, facing, threading and grooving with standard tooling.
    • OEM/ODM support: Customizable size, color, weight configuration and brand marking to match your product line.


    Customization Options

    As an OEM/ODM partner, Jiangsu Bestech Industrial Co., Ltd. can adjust the following attributes according to your requirements:

    • Size: Bed length and overall machine dimensions to suit your target market.
    • Color: Machine paint and finish to match your brand identity.
    • Weight: Configuration-dependent; final weight is confirmed with the selected bed length and accessories.
    • Brand: Private-label nameplates and documentation available.

    Applications

    The BT560 is commonly used for machining shafts, axles, bushings, flanges, gears and general repair parts. Its combination of swing capacity and center distance makes it a practical choice for job shops, vocational training and light-to-medium production environments.

    Ordering Notes

    Please specify the required distance between centers (1000mm, 1500mm, 2000mm or 3000mm), color preference and branding details when requesting a quotation. Packaging and shipping arrangements are confirmed per order. For technical selection support, contact Jiangsu Bestech Industrial Co., Ltd. with your workpiece drawings and production requirements.
