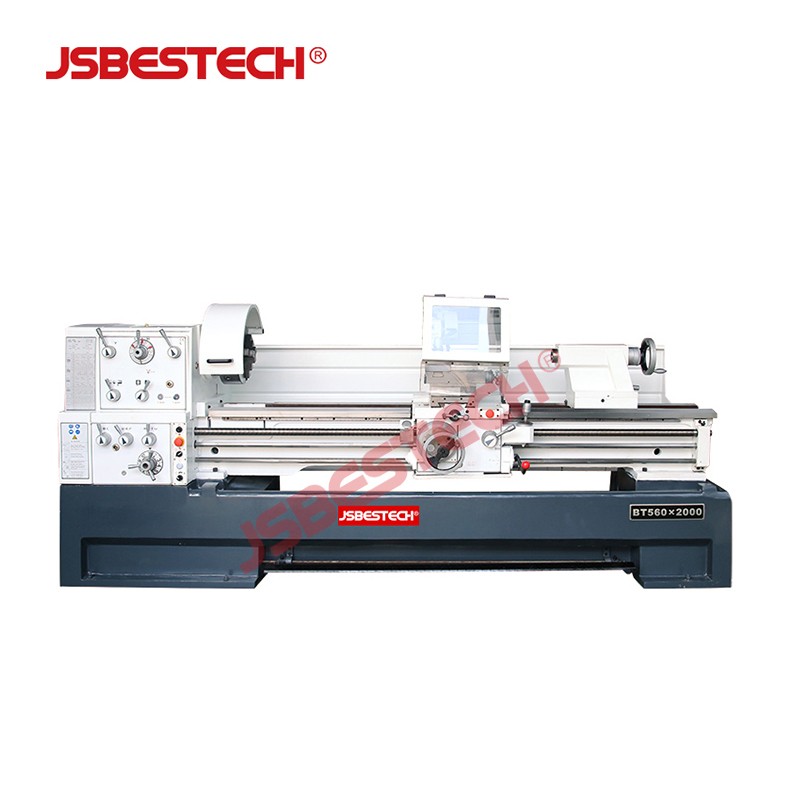

BT560 Bench Lathe Machine
The BT560 is a heavy-duty bench lathe engineered for precision metal turning. With a maximum turning diameter of Ø560 mm and a robust 350 mm bed width, it delivers stability and accuracy for a wide range of machining tasks. Whether you are working in a job shop, maintenance facility, or production environment, the BT560 offers the reliability and performance you need.
Key Features
- Large turning capacity: Ø560 mm max. turning diameter, Ø785 mm swing in gap
- Wide bed: 350 mm width for enhanced rigidity
- Spindle speeds: 12 steps from 25 to 1600 rpm
- Spindle bore: Ø80 mm standard, Ø105 mm optional
- Threading capability: 47 metric threads (0.2–14 mm) and 60 inch threads (2–112 T.P.I)
- Powerful 7.5 kW motor for demanding cuts
- Available with center distances: 1000, 1500, 2000, or 3000 mm
Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø560 mm |
| Swing over cross slide | Ø355 mm |
| Swing in gap diameter | Ø785 mm |
| Distance between centers | 1000 / 1500 / 2000 / 3000 mm |
| Center height | 280 mm |
| Width of bed | 350 mm |
| Spindle nose | D1-8 |
| Spindle bore | Ø80 mm / Ø105 mm (Optional) |
| Taper of spindle bore | MT7 / 113 (1:20) (Optional) |
| Spindle speed (12 steps) | 25–1600 rpm |
| Top slide travel | 130 mm |
| Cross slide travel | 316 mm |
| Max. section of tools | 25 x 25 mm |
| Range of metric threads (47 kinds) | 0.2–14 mm |
| Range of inch threads (60 kinds) | 2–112 T.P.I |
| Lead screw thread | 6 mm or 4 T.P.I |
| Tailstock quill diameter | Ø75 mm |
| Tailstock quill travel | 180 mm |
| Taper of tailstock quill | MT5 |
| Motor power | 7.5 kW |
| Coolant pump motor | 100 W |
| Voltage | 380V–440V (3PH) |

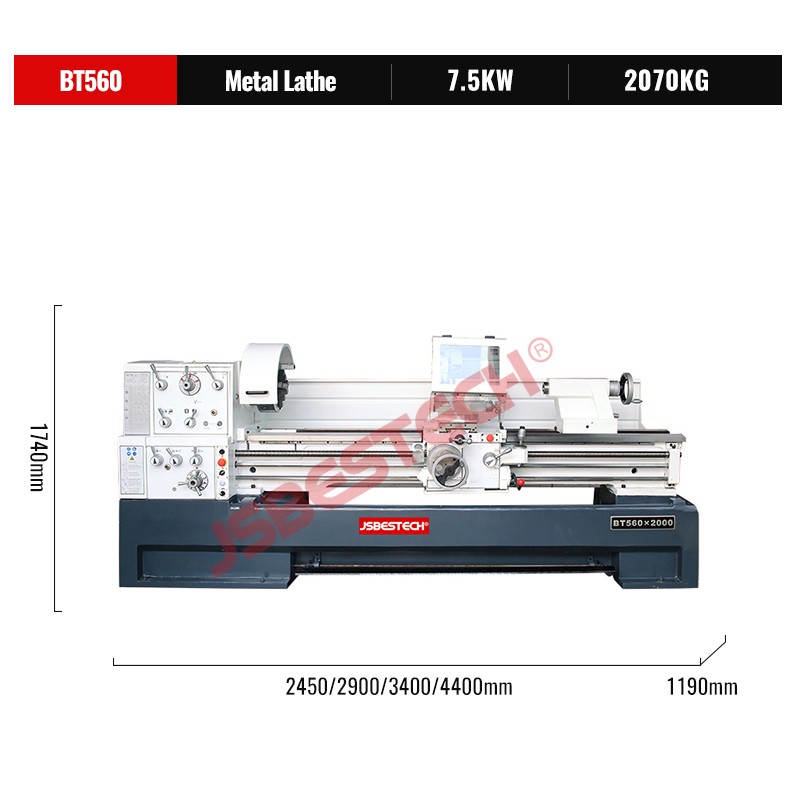

| Packing size | (2450/2900/3400/4400) x 1190 x 1740 mm |
Applications
The BT560 is suitable for turning, facing, threading, and boring operations on a variety of metals. Its gap bed design allows for larger diameter workpieces, making it ideal for repair shops, tool rooms, and general machining.

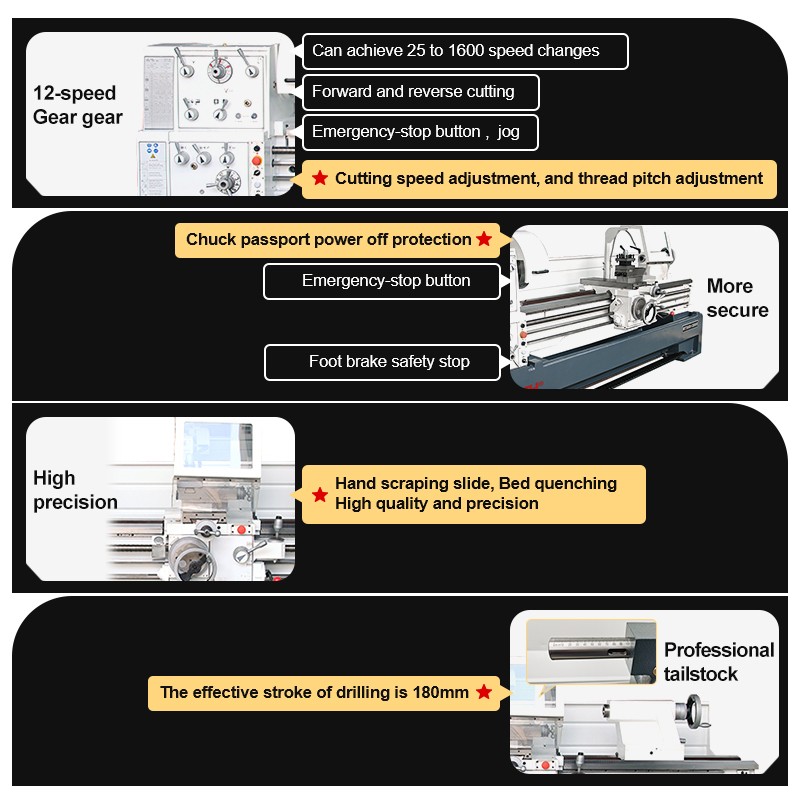

Why Choose the BT560?
Built with a rigid cast iron bed and precision-ground guideways, the BT560 ensures long-term accuracy and smooth operation. The 12-step spindle speed range provides flexibility for different materials and cutting conditions. Optional spindle bore and taper configurations allow you to tailor the machine to your specific needs.
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT560 bench lathe machine used metal lathe machine?
The BT560 is a bench lathe machine designed for metal turning operations, offering a maximum turning diameter of Ø560mm and a swing over cross slide of Ø355mm. It features a spindle nose of D1-8 and a spindle speed range of 25~1600rpm with 12 steps. The lathe supports metric and inch thread cutting, with a range of 0.2~14mm and 2~112 T.P.I respectively. It is suitable for a variety of machining tasks in workshops and small-scale production environments.
Applications
- Turning and facing of metal workpieces up to Ø560mm in diameter.
- Thread cutting, including metric and inch threads.
- Drilling and boring operations using the tailstock.
- Machining of shafts, bushings, and other cylindrical parts.
- General metalworking in maintenance shops and small batch production.
FAQ
What is the maximum turning diameter of the BT560 bench lathe?
The maximum turning diameter is Ø560mm.
What is the spindle speed range of this lathe?
The spindle speed range is 25~1600rpm, with 12 steps.
Can the BT560 cut both metric and inch threads?
Yes, it can cut 47 kinds of metric threads (0.2~14mm) and 60 kinds of inch threads (2~112 T.P.I).
What is the motor power of the BT560?
The motor power is 7.5kw.
What is the distance between centers available for this lathe?
The distance between centers options are 1000mm, 1500mm, 2000mm, and 3000mm.
