Multi Purpose 12 Steps Speed BT560 Manual Lathe Machine OEM/ODM Supported

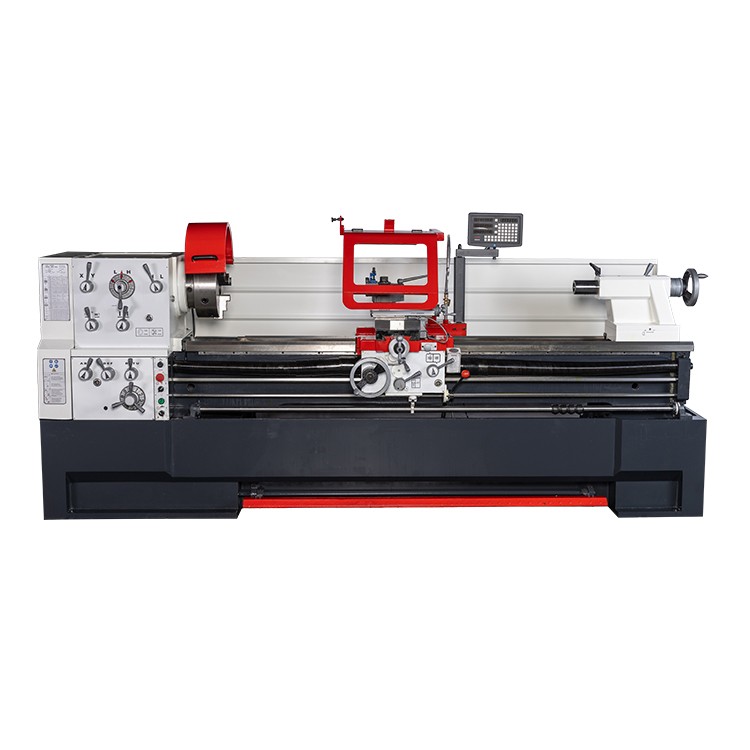

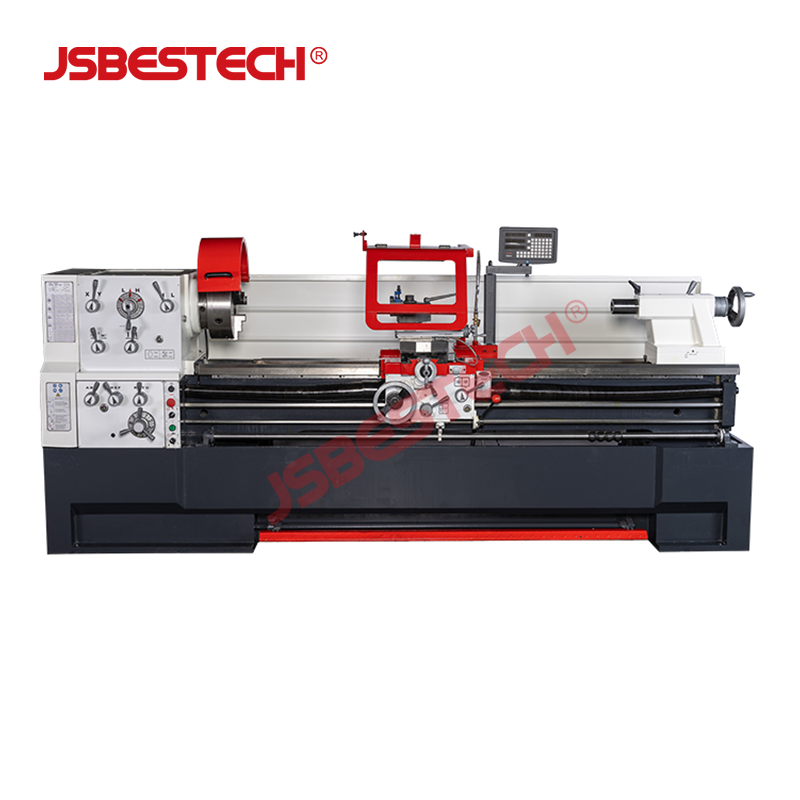

Multi Purpose 12 Steps Speed BT560 Manual Lathe Machine

Jiangsu Bestech Industrial Co., Ltd. presents the BT560 manual lathe, a versatile and reliable solution for a wide range of turning operations. With a swing over bed of 560mm and a distance between centers available in 1000mm, 1500mm, 2000mm, and 3000mm, this lathe is designed to handle diverse machining tasks with ease. The 12-step speed control allows precise adjustment for optimal cutting performance on various materials.

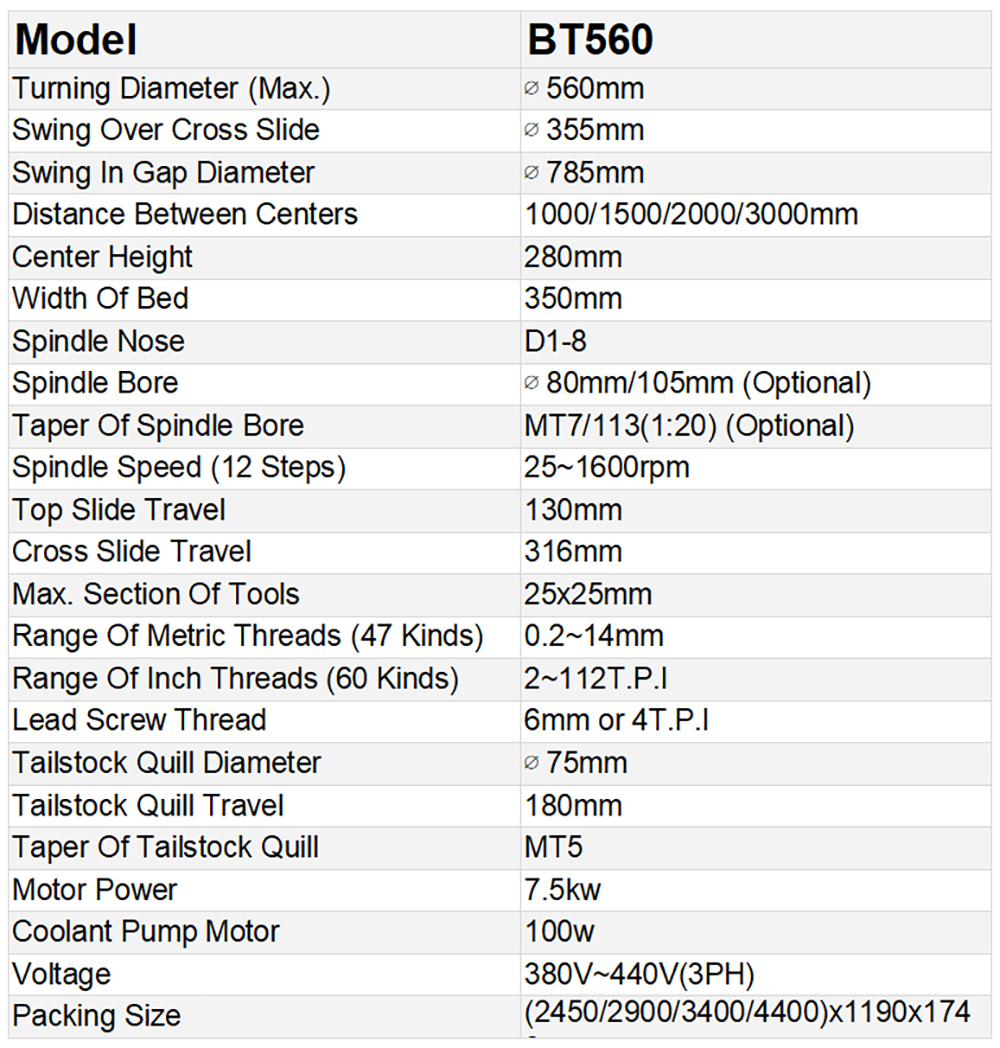

Turning Diameter (Max.)	Φ560mm
Swing Over Cross Slide	Φ355mm
Swing In Gap Diameter	Φ785mm
Distance Between Centers	1000/1500/2000/3000mm
Center Height	280mm
Width Of Bed	350mm
Spindle Nose	D1-8
Spindle Bore	Φ80mm/105mm (Optional)
Taper Of Spindle Bore	MT7/113(1:20) (Optional)
Spindle Speed (12 Steps)	25~1600rpm
Top Slide Travel	130mm
Cross Slide Travel	316mm
Max. Section Of Tools	25x25mm
Range Of Metric Threads (47 Kinds)	0.2~14mm
Range Of Inch Threads (60 Kinds)	2~112T.P.1
Lead Screw Thread	6mm or 4T.P.I
Tailstock Quill Diameter	Φ75mm
Tailstock Quill Travel	180mm
Taper Of Tailstock Quill	MT5
Motor Power	7.5kw
Coolant Pump Motor	100w
Voltage	380V~440V(3PH)

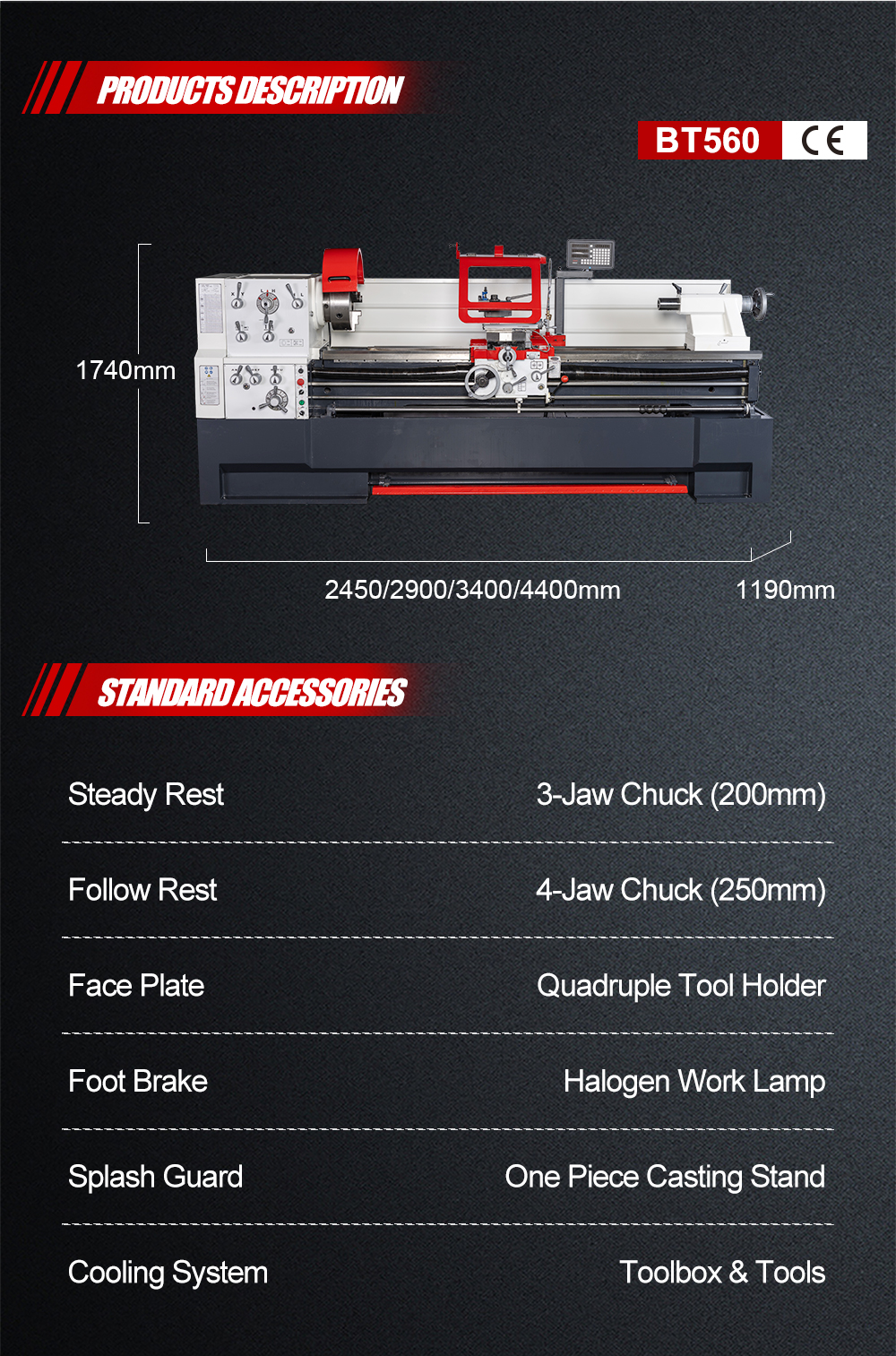

Packing Size	(2450/2900/3400/4400)x1190x174

Key Features

• Generous Swing Capacity: 560mm swing over bed and 355mm swing over cross slide accommodate large workpieces.
• Gap Bed Design: Swing in gap diameter of 785mm enables machining of larger diameter parts.
• 12-Step Speed Control: Provides a wide range of spindle speeds for different materials and operations.
• Multiple Center Distances: Choose from 1000mm, 1500mm, 2000mm, or 3000mm to match your workpiece length requirements.
• OEM/ODM Support: Customization options available to meet specific branding or functional needs.

Technical Specifications

Additional attributes such as size, color, weight, and brand can be tailored to your requirements. The BT560 is built with a robust construction to ensure stability and accuracy during operation. Its user-friendly design makes it suitable for both experienced machinists and those new to manual lathes.

Applications

The BT560 manual lathe is ideal for general machining, maintenance shops, tool rooms, and educational institutions. It efficiently handles turning, facing, threading, and boring operations on a variety of metals and plastics.

Why Choose Jiangsu Bestech Industrial Co., Ltd.?

As a leading manufacturer, we are committed to delivering high-quality machinery with dependable performance. Our OEM/ODM services allow you to customize the lathe to your specific needs, ensuring it integrates seamlessly into your operations. With a focus on precision and durability, the BT560 is a smart investment for your workshop.

For more information or to discuss your requirements, please contact us.
