High Accuracy 12 Steps Speed BT560 Horizontal Manual Lathe Machine for Metal

High Accuracy 12 Steps Speed BT560 Horizontal Manual Lathe Machine for Metal

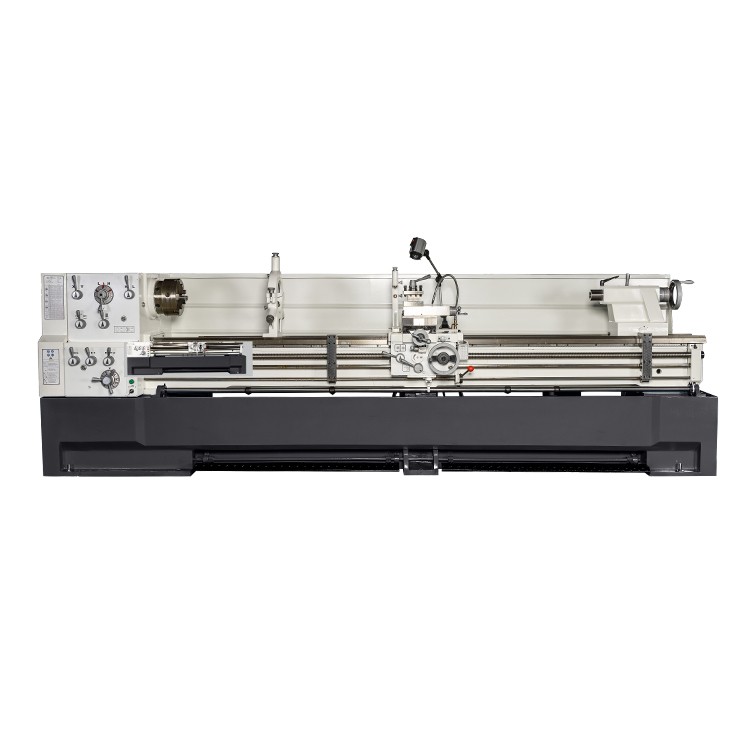

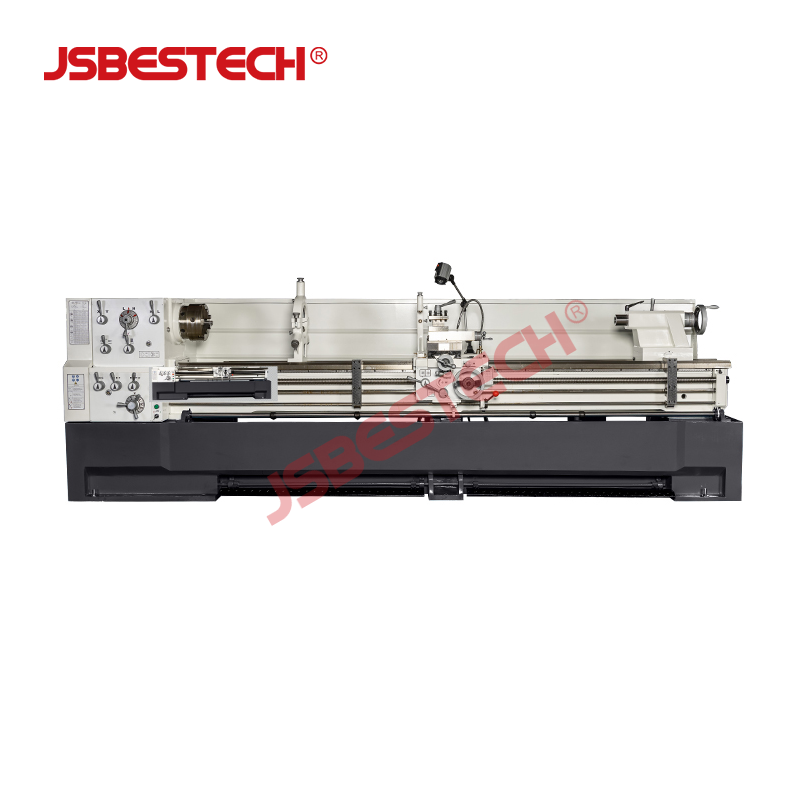

Jiangsu Bestech Industrial Co., Ltd. presents the BT560 horizontal manual lathe, engineered for precision metalworking. With a swing over bed of 560 mm and a 12-step speed control system, this lathe delivers reliable performance for a wide range of turning operations.

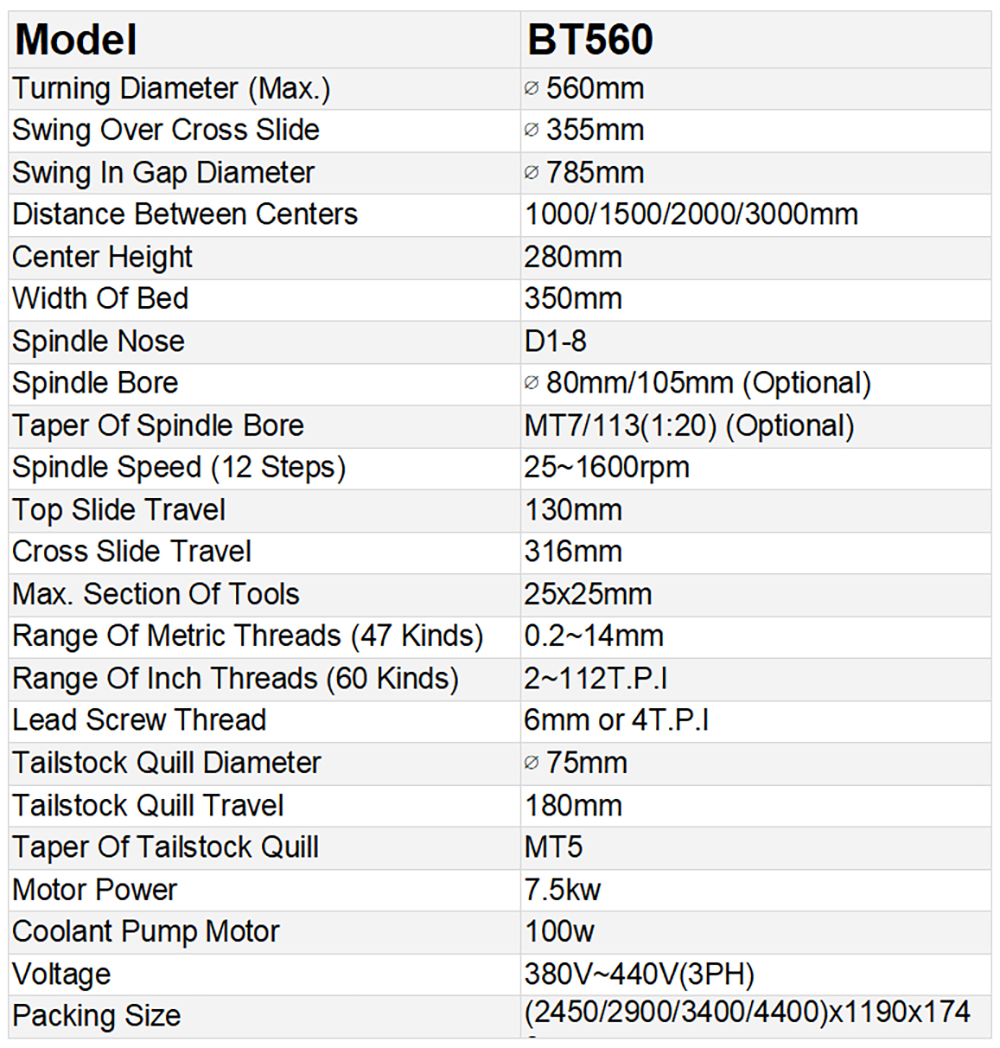

Turning Diameter (Max.)	Φ560mm
Swing Over Cross Slide	Φ355mm
Swing In Gap Diameter	Φ785mm
Distance Between Centers	1000/1500/2000/3000mm
Center Height	280mm
Width Of Bed	350mm
Spindle Nose	D1-8
Spindle Bore	Φ80mm/105mm (Optional)
Taper Of Spindle Bore	MT7/113(1:20) (Optional)
Spindle Speed (12 Steps)	25~1600rpm
Top Slide Travel	130mm
Cross Slide Travel	316mm
Max. Section Of Tools	25x25mm
Range Of Metric Threads (47 Kinds)	0.2~14mm
Range Of Inch Threads (60 Kinds)	2~112T.P.1
Lead Screw Thread	6mm or 4T.P.I
Tailstock Quill Diameter	Φ75mm
Tailstock Quill Travel	180mm
Taper Of Tailstock Quill	MT5
Motor Power	7.5kw
Coolant Pump Motor	100w
Voltage	380V~440V(3PH)

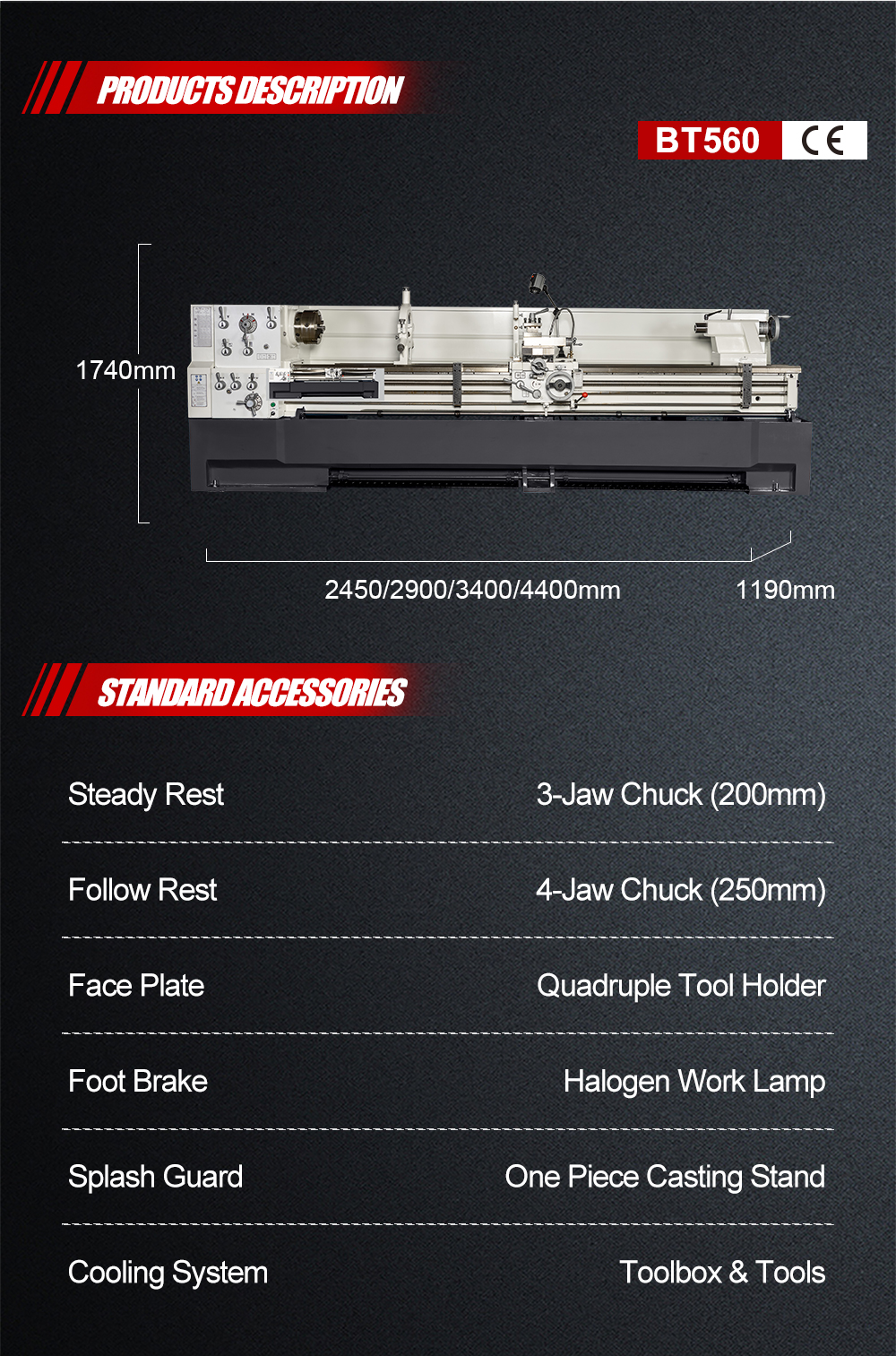

Packing Size	(2450/2900/3400/4400)x1190x174

Key Specifications

• Swing over bed: 560 mm
• Max. swing over cross slide: 355 mm
• Swing in gap diameter: 785 mm
• Distance between centers: 1000 mm / 1500 mm / 2000 mm / 3000 mm

These specifications make the BT560 suitable for machining large-diameter workpieces while maintaining accuracy. The gap bed design allows for turning parts with diameters up to 785 mm when the gap is removed.

Features and Benefits

12-Step Speed Control

The 12-step speed selection provides flexibility for different materials and operations. Operators can easily adjust spindle speeds to match the requirements of roughing or finishing cuts.

High Accuracy

Designed for precision, the BT560 incorporates rigid construction and quality components to ensure consistent results. This makes it ideal for job shops, maintenance facilities, and production environments where tolerances matter.

Versatile Distance Between Centers

Available in four bed lengths—1000 mm, 1500 mm, 2000 mm, and 3000 mm—the BT560 can be configured to handle workpieces of various lengths. This adaptability supports a broad range of applications, from small parts to long shafts.

Durable Construction

Built with a robust bed and headstock, the lathe offers stability during heavy cuts. The horizontal manual configuration gives operators direct control over the machining process.

Applications

The BT560 is suitable for turning, facing, threading, and boring operations on metals such as steel, cast iron, and aluminum. Common applications include manufacturing shafts, bushings, gears, and custom parts.

Why Choose the BT560?

With its combination of size capacity, speed range, and accuracy, the BT560 offers a practical solution for workshops seeking a reliable manual lathe. Jiangsu Bestech Industrial Co., Ltd. provides this model with a focus on quality and performance.

For more information or to discuss your specific requirements, please contact us.
