BF7550CW Milling Machine: Vertical and Horizontal Milling in One
The BF7550CW is a versatile milling machine that combines vertical and horizontal milling capabilities in a single unit. Designed for precision and efficiency, it is suitable for a wide range of machining tasks in workshops, tool rooms, and production environments.

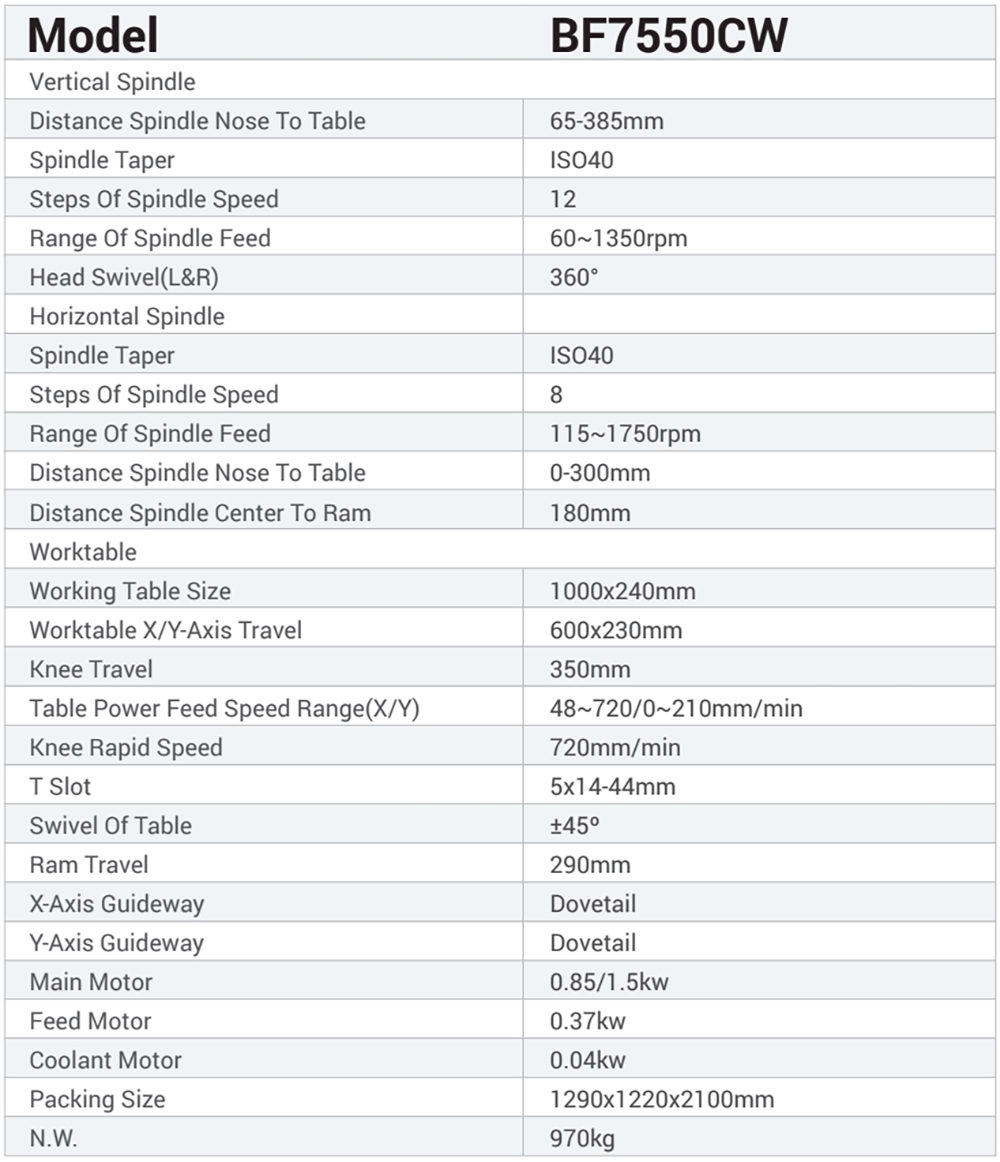

Key Specifications
- Distance Spindle Nose to Table: 65–385 mm
- Spindle Taper: ISO40
- Steps of Spindle Speed: 12
- Range of Spindle Feed: 60–1350 rpm
Features
- Dual Milling Function: Vertical and horizontal milling for flexible operation.
- Robust Construction: Built for stability and long service life.
- Precise Control: 12 spindle speed steps and a wide feed range for various materials.
- ISO40 Spindle Taper: Compatible with standard tooling.
Applications
Ideal for milling slots, grooves, and flat surfaces, as well as drilling and boring. The BF7550CW is commonly used in general machining, maintenance, and fabrication shops.
Additional Information
Available in various sizes, colors, weights, and brands to meet specific requirements. For detailed specifications and customization options, please contact us.
What is Good Quality BF7550CW Milling Machine Vertical Milling and Horizontal Milling?
The BF7550CW is a vertical and horizontal milling machine designed for versatile metalworking operations. It features a spindle taper of ISO40 and a distance from spindle nose to table ranging from 65 to 385 mm. The machine offers 12 steps of spindle speed, with a range of 60 to 1350 rpm, and a range of spindle feed. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is suitable for both vertical and horizontal milling tasks.
Applications
- Vertical milling of flat surfaces, slots, and grooves
- Horizontal milling of workpieces requiring side and face milling
- Drilling and boring operations in metal components
- Machining of small to medium-sized parts in job shops and maintenance workshops
- Production of tools, dies, and fixtures
FAQ
What is the spindle taper of the BF7550CW milling machine?
The spindle taper is ISO40.
What is the range of spindle speeds available?
The spindle speed range is 60 to 1350 rpm, with 12 steps.
What is the distance from the spindle nose to the table?
The distance from spindle nose to table is 65-385 mm.
Can this machine perform both vertical and horizontal milling?
Yes, the BF7550CW is designed for both vertical and horizontal milling operations.
What is the range of spindle feed?
The range of spindle feed is 60~1350 rpm.
