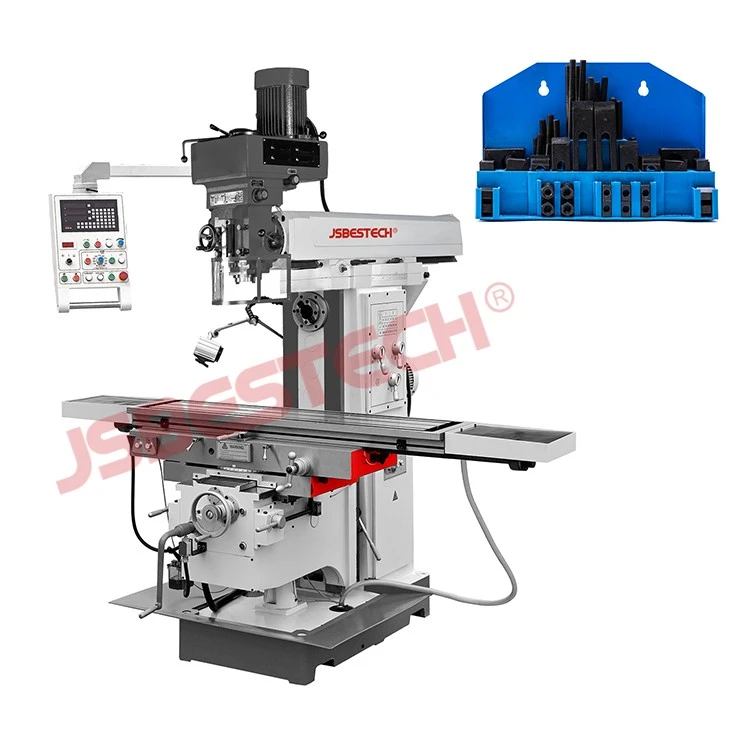

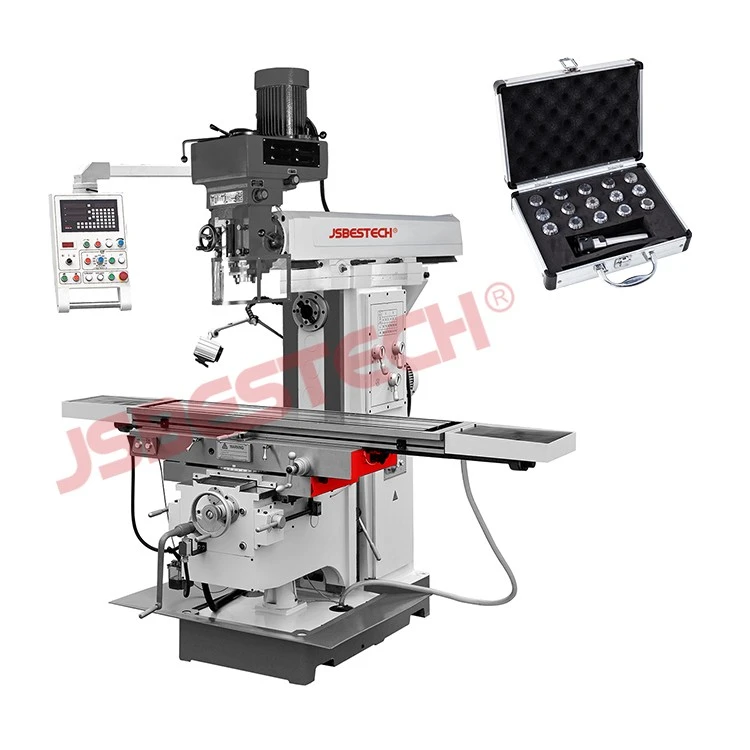

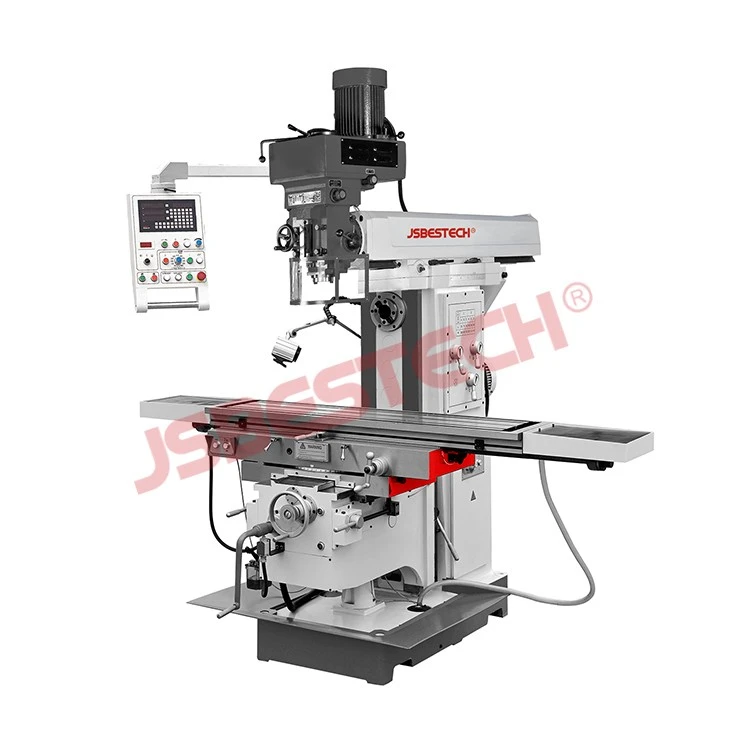

FX6336 Universal High Precision Vertical & Horizontal Dual-purpose Milling Machine
Model
BFX6336
Vertical Spindle
Distance Spindle Nose To Table
160~660mm
Spindle Taper
ISO40
Steps Of Spindle Speed
10
Range Of Spindle Feed
70~3620rpm
Head Swivel(L&R)
±45°
Horizontal Spindle
Spindle Taper
IS050
Steps Of Spindle Speed
12
Range Of Spindle Feed
52~1800rpm
Distance Spindle Nose To Table
0-420mm
Worktable
Working Table Size
1650x360mm
Worktable X/Y/Z-Axis Travel
1300x300x420mm
Longitudinal /Cross Feed Speed
25~800mm/min
Vertical Feed Speed
8~267mm/min
T-Slot Of Table (Number/Width/Distance)
3/14/95mm
Table Of Swivel
±35°
Ram Travel
500mm
Main Motor
5.5kw(H)/3.7kw(V)
Feed Motor
2.36kw
Coolant Motor
0.09kw
Packing Size
2550x2070x2650mm
N.W./G.W.
2500/2800kg
The BFX6336 is a universal milling machine designed for high-precision machining in both vertical and horizontal configurations. Manufactured by Jiangsu Bestech Industrial Co., Ltd., this dual-purpose machine supports a wide range of milling operations on a single platform, making it suitable for tool rooms, maintenance workshops, and production environments.
Key Specifications
- Model: BFX6336
- Spindle taper: ISO40
- Distance from spindle nose to column: 160–660 mm
- Steps of spindle speed: 10
- Range of spindle feed: 70–3620 rpm
Vertical and Horizontal Capability
The BFX6336 combines vertical and horizontal milling functions in one machine. This dual-purpose design allows operators to switch between vertical and horizontal setups without moving the workpiece to a different machine, reducing setup time and improving workflow efficiency. The universal configuration is particularly useful for complex parts that require multiple machining angles.
High Precision and Rigid Construction
Built for high-precision work, the BFX6336 features a robust structure that minimizes vibration during cutting. The spindle taper ISO40 provides a secure and accurate tool interface, while the 10-step spindle speed range (70–3620 rpm) offers flexibility for different materials and operations. The distance from spindle nose to column (160–660 mm) accommodates a variety of workpiece sizes and setups.
Applications
This universal milling machine is suitable for:
- Metalworking and machining of flat, angled, and complex surfaces
- Tool and die making
- Maintenance and repair shops
- Small to medium batch production
- Educational and training workshops
Additional Information
Available properties include size, color, weight, and brand. For detailed technical specifications, options, and availability, please contact Jiangsu Bestech Industrial Co., Ltd. directly.
What is Milling Machine BFX6336 Universal High Precision Vertical&Horizontal Dual-purpose Milling Machine?
The Milling Machine BFX6336 is a universal high-precision dual-purpose machine that operates in both vertical and horizontal milling modes. It features a spindle taper of ISO40 and a distance from spindle nose to column ranging from 160 to 660 mm. The spindle speed is adjustable in 10 steps, with a range of 70 to 3620 rpm. This machine is designed for precision milling applications in various industries.
Applications
- Precision milling of metal parts in vertical and horizontal orientations
- Machining of complex components in tool rooms and job shops
- Manufacturing of dies, molds, and fixtures
- General milling operations in maintenance and repair workshops
- Production of small to medium-sized batches of machined parts
FAQ
What is the spindle taper of the BFX6336 milling machine?
The spindle taper is ISO40.
What is the range of spindle speeds for this machine?
The spindle speed range is 70 to 3620 rpm, with 10 steps.
What is the distance from the spindle nose to the column?
The distance ranges from 160 to 660 mm.
Can the BFX6336 be used for both vertical and horizontal milling?
Yes, it is a dual-purpose machine that supports both vertical and horizontal milling operations.
