Description

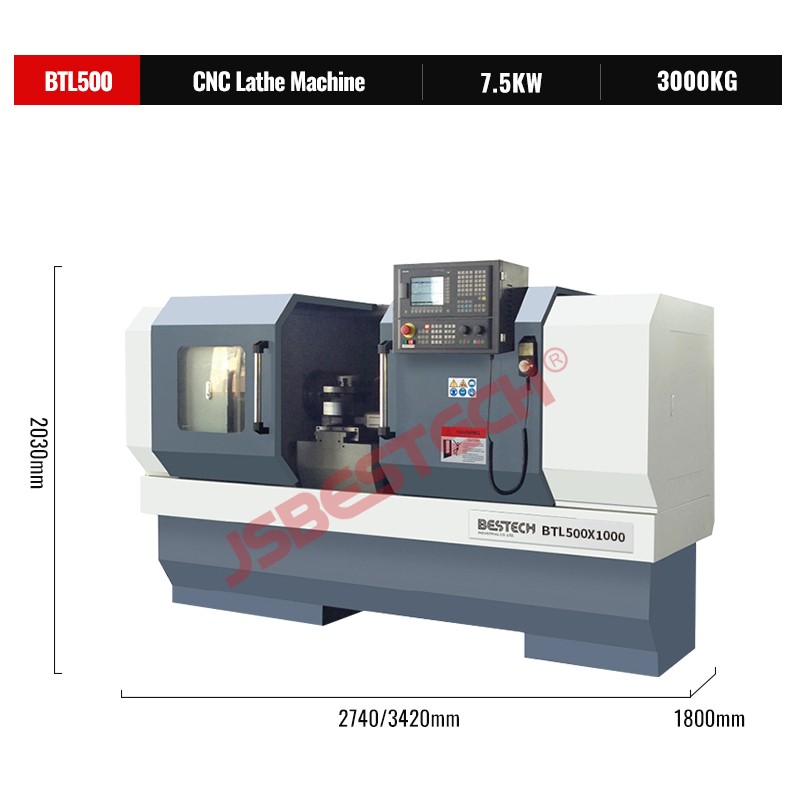

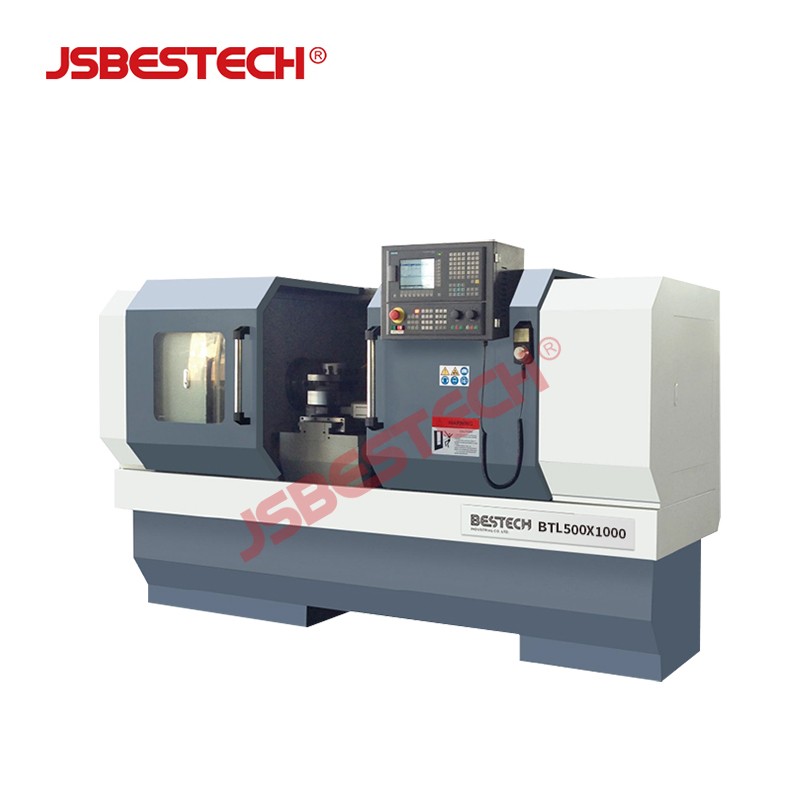

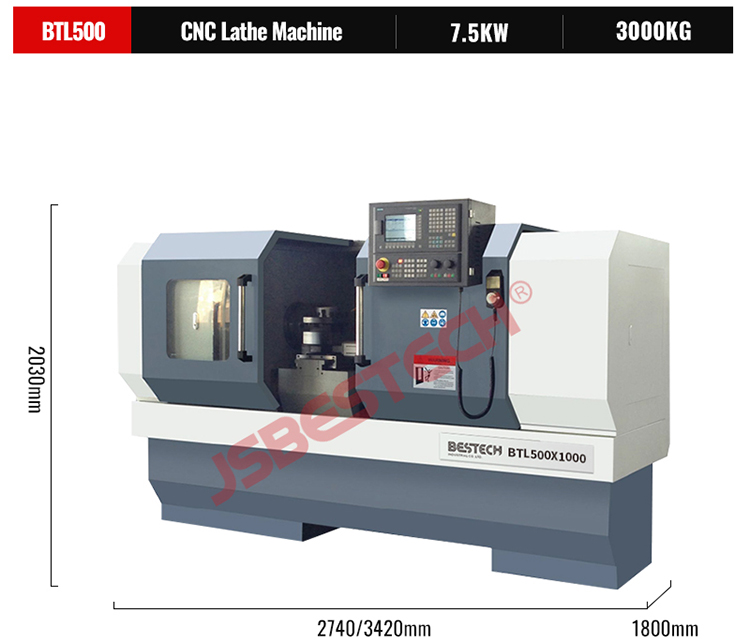

CNC Lathe Machine BTL500:
1. 500mm swing over bed2. 1100mm and 1500mm center distance
3. 4 or 6 or 8 tool carrier for choose
4. 82mm or 86mm big spindle bore
5. Auto lubrication coolant system
|
Model |
BTL500 |
|
Max Swing over bed |
Ø500mm |
|
Max Swing over carriage |
Ø280mm |
|
Max Length of Work Piece |
1500/1000mm |
|
Rail width |
400mm |
|
Spindle nose |
A2-8 |
|
Spindle Bore |
Ø 82mm |
|
Spindle Taper |
MT6 |
|
Chuck |
10"or 8" |
|
G/N weight |
2750/3000kg&3100/3450kg |
|
Standard Accessories |
Optional Accessories |
|

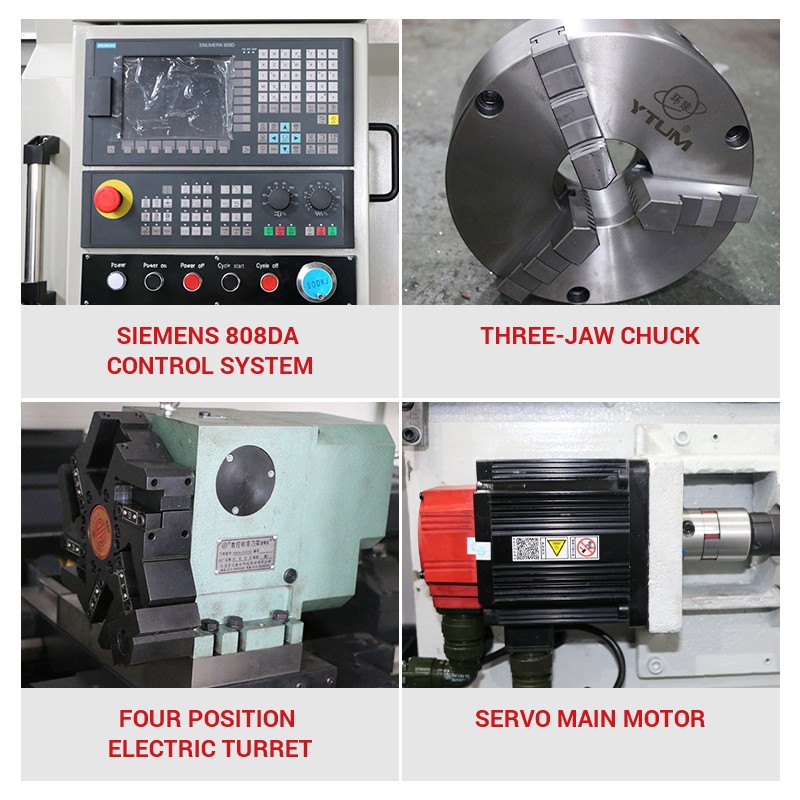

1.Wrenches 2.Reduction sleeve 3.Alloy center 4.Three-jaw chuck 5.Frequency main motor 6.Four position electric turret 7.Auto lubrication coolant system |
1.AC servo motor 2.Pneumatic or hydraulic chuck 3.Teach-in function 4.Horizontal six or eight-station |
