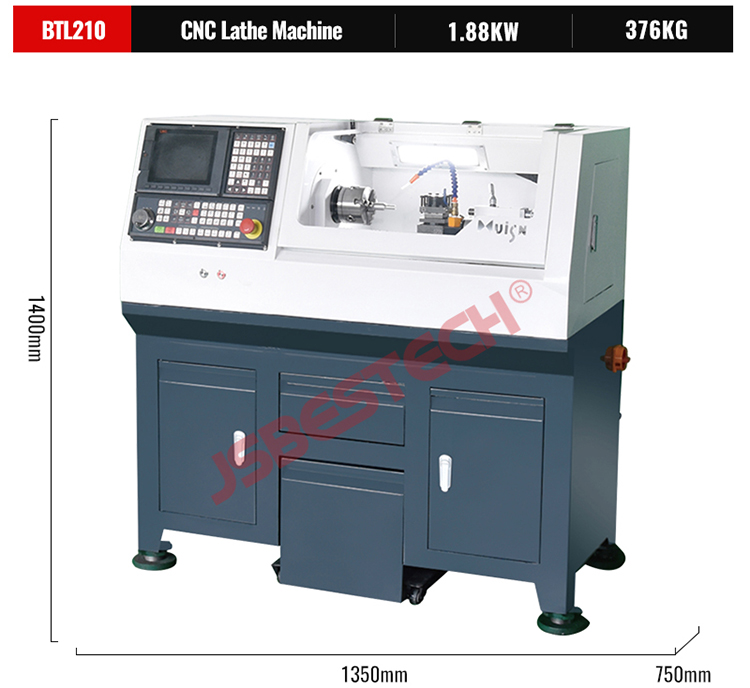

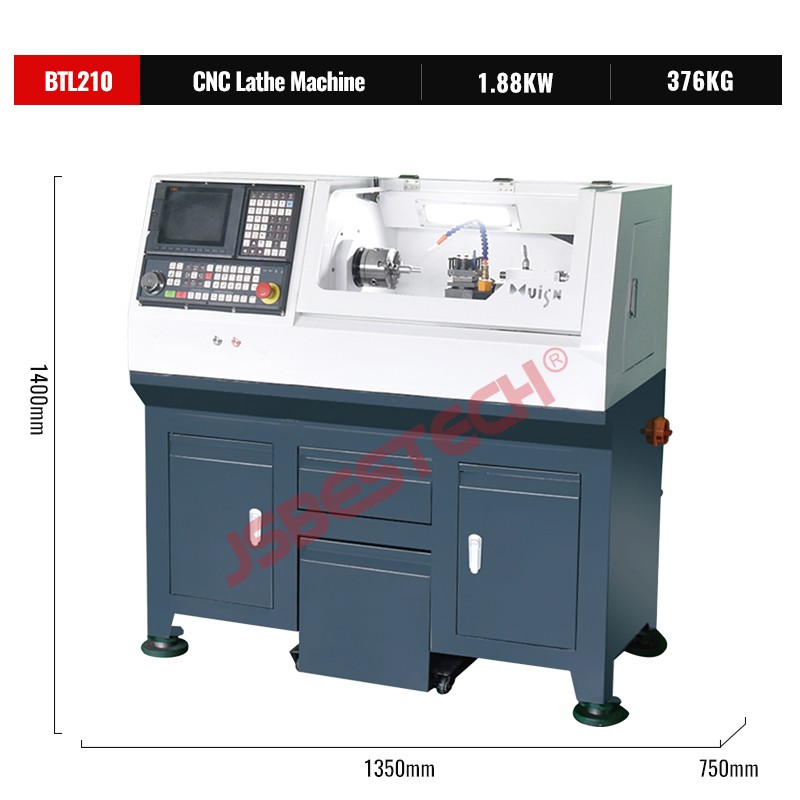

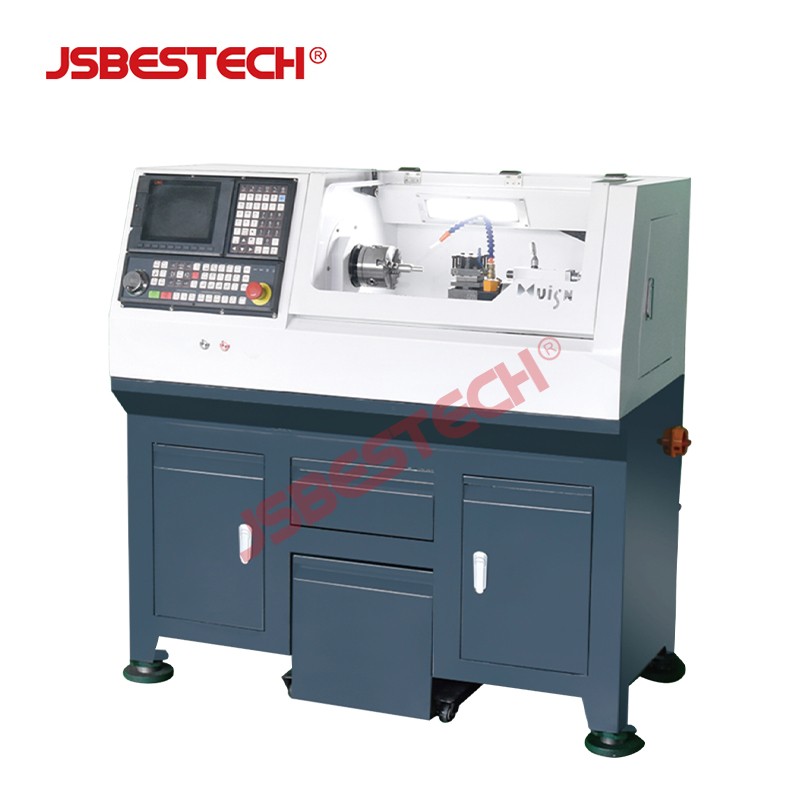

BTL210 Mini CNC Lathe with Fanuc Control
The BTL210 is a compact CNC lathe engineered for precision turning of small to medium-sized parts. Equipped with a Fanuc control system, it delivers reliable performance and ease of operation for workshops, job shops, and production environments where space and accuracy matter.
Key Features
- Fanuc control for smooth, consistent operation
- Max. turning diameter of Ø210 mm
- Swing over cross slide: Ø100 mm
- Distance between centers: 300 mm
- Spindle bore: Ø26 mm with MT4 taper
- Spindle speed up to 3000 rpm
- 4-station electric tool holder
- Tool size: 10 x 10 mm
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø210 mm |
| Swing over cross slide | Ø100 mm |
| Distance between centers | 300 mm |
| Spindle torque | 6 N.m |
| Spindle bore | Ø26 mm |
| Spindle taper | MT4 |
| Spindle speed | 3000 rpm |
| Spindle chuck | 100 mm |
| X-axis travel | 110 mm |
| Z-axis travel | 300 mm |
| Electric knife holder | 4 |
| Tool size | 10 x 10 mm |
| Maximum feed rate (X/Z-axis) | 3 m/min; 5 m/min |
Applications
Ideal for turning small shafts, bushings, pins, and other precision components. The BTL210 suits prototyping, small-batch production, and educational settings.
Why Choose the BTL210?
With its Fanuc control, compact footprint, and robust spindle, the BTL210 offers a practical solution for workshops seeking a reliable mini CNC lathe. The 4-station tool holder and 3000 rpm spindle speed support efficient machining of various materials.
For more information about the BTL210 or other models, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BTL210 with fanuc control mini cnc lathe machine?
The BTL210 with Fanuc control is a mini CNC lathe machine designed for precision turning of small to medium-sized parts. It features a maximum turning diameter of Ø210mm, a swing over cross slide of Ø100mm, and a distance between centers of 300mm. Equipped with a Fanuc control system, it offers reliable and efficient performance for various machining tasks. This lathe is suitable for both production and prototyping environments.
Applications
- Precision turning of small metal and plastic components
- Prototyping and small-batch production
- Educational and training purposes in CNC machining
- Manufacturing of automotive and aerospace parts
- Production of medical device components
FAQ
What is the maximum turning diameter of the BTL210 CNC lathe?
The maximum turning diameter is Ø210mm.
What is the spindle speed of this machine?
The spindle speed is 3000rpm.
What type of control system does the BTL210 use?
It uses a Fanuc control system.
What is the distance between centers?
The distance between centers is 300mm.
What is the spindle bore size?
The spindle bore is Ø26mm.
