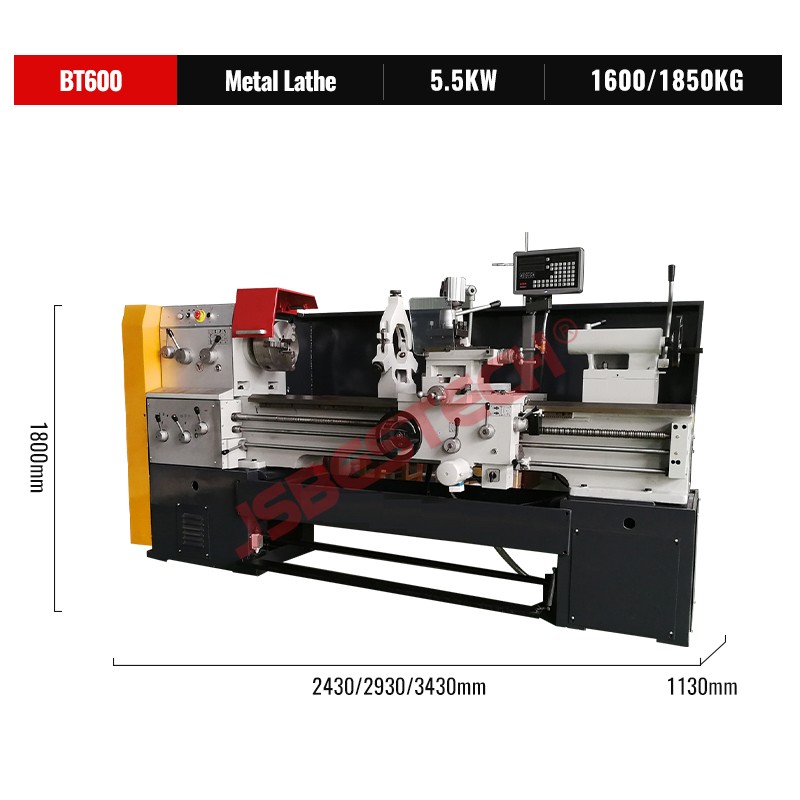

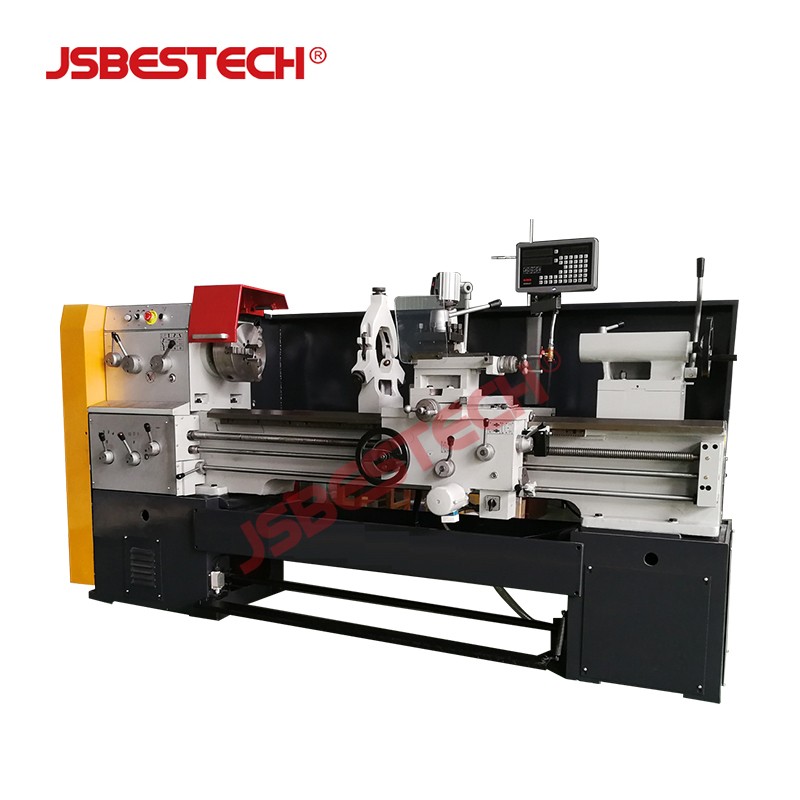

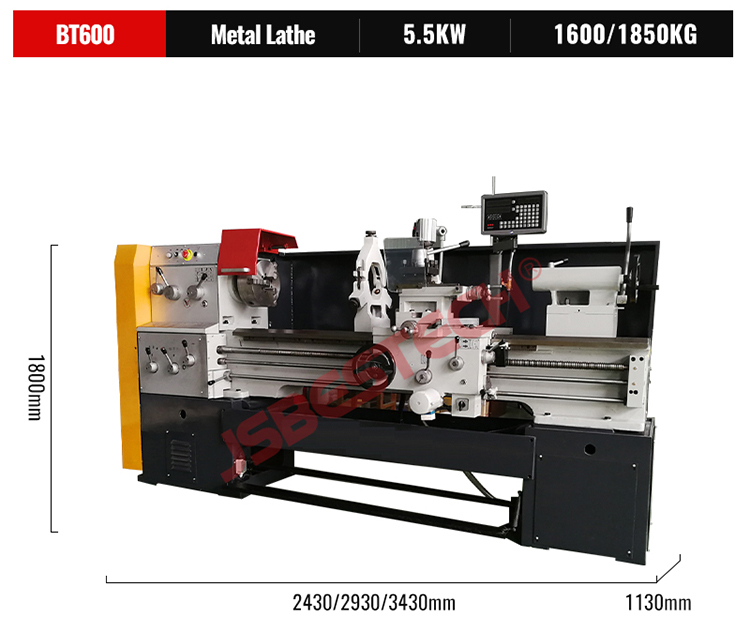

BT600 Precision Lathe: Made in Taiwan with CE Approval
The BT600 is a high-precision lathe manufactured in Taiwan and CE approved, designed for international markets. It delivers reliable performance for a wide range of turning applications.
Key Features
- Max. turning diameter: Ø600mm
- Swing over cross slide: Ø360mm
- Swing in gap diameter: Ø760mm
- Distance between centers: 1000/1500/2000mm
- Spindle bore: Ø52 or Ø82mm (optional)
- Spindle speed: 40~1300rpm (9 steps)
- Motor power: 5.5kW
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø600mm |
| Swing over cross slide | Ø360mm |
| Swing in gap diameter | Ø760mm |
| Valid length of gap | 200mm |
| Distance between centers | 1000/1500/2000mm |
| Center height | 300mm |
| Width of bed | 360mm |
| Spindle nose | ISO-C6 or ISO A2-8 |
| Spindle bore | Ø52 or Ø82mm (Optional) |
| Taper of spindle bore | MT6 or MT8 |
| Spindle speed (9 steps) | 40~1300rpm |
| Top slide travel | 95mm |
| Cross slide travel | 300mm |
| Max. section of tools | 20x20mm |
| Range of metric threads (29 kinds) | 0.25~14mm |
| Range of inch threads (33 kinds) | 2~40T.P.I |
| Threads diametral pitches (50 kinds) | 4~112D.P |
| Threads module pitches (17 kinds) | 0.25~3.5M.P |
| Tailstock quill diameter | Ø75mm |
| Tailstock quill travel | 150mm |
| Taper of tailstock quill | MT5 |
| Motor power | 5.5kW |
| Coolant pump motor | 90W |
| Rapid drive motor | 125W |
| Voltage | 380V~440V (3PH) |
| Packing size | (2430/2930/3430)x1130x1800mm |
Applications
The BT600 is suitable for precision turning in industries such as automotive, aerospace, and general engineering. Its robust construction and wide range of thread cutting capabilities make it a versatile choice for workshops and production environments.
Why Choose the BT600?
- Made in Taiwan with CE approval, ensuring quality and safety.
- Large turning capacity with a 600mm diameter.
- Flexible distance between centers to suit various workpiece lengths.
- Comprehensive threading options: metric, inch, diametral, and module pitches.
- Reliable 5.5kW motor for consistent performance.
For more information about the BT600 precision lathe or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT600 made in Taiwan CE approval precision international lathes machine?
The BT600 is a precision metalworking lathe manufactured in Taiwan and carrying CE approval. It offers a maximum turning diameter of Ø600mm and a swing over cross slide of Ø360mm, with a spindle bore taper of MT6 or MT8. The machine is designed for accurate turning, threading, and general machining operations. It is supplied by Jiangsu Bestech Industrial Co., Ltd. as part of their international lathe range.
Applications
- Precision turning of medium to large cylindrical metal parts
- Thread cutting including metric, inch, diametral pitch, and module threads
- General machining in tool rooms, maintenance workshops, and job shops
- Manufacturing of shafts, bushings, and other rotational components
- Suitable for use in industries such as automotive, aerospace, and general engineering
FAQ
What is the maximum turning diameter of the BT600 lathe?
The maximum turning diameter is Ø600mm.
What is the swing over cross slide for this lathe?
The swing over cross slide is Ø360mm.
What is the taper of the spindle bore?
The taper of the spindle bore is MT6 or MT8.
Does the BT600 lathe have CE approval?
Yes, the BT600 lathe is made in Taiwan and carries CE approval.
What is the tailstock quill diameter?
The tailstock quill diameter is Ø75mm.
