Description
| Max.drilling capacity | 50mm |
| Max. Tapping diameter | M33 |
| Spindle taper | MT4 |
| Spindle stroke | 210mm |
| Spindle center to column surface | 375mm |
| Spindle nose to worktable | 80-800mm |
| Spindle nose to base | 1325mm |
| Spindle speeds range (12steps) | 55~1450rpm |
| Speed power feed range (4steps) | 0.1/0.2/0.3/0.4mm/r |
| Diameter of column | 180mm |
| Worktable size | 580x580mm |
| Base size | 860x580mm |
| Width of T-slot | 4-18mm |
| Main motor | 3kw |

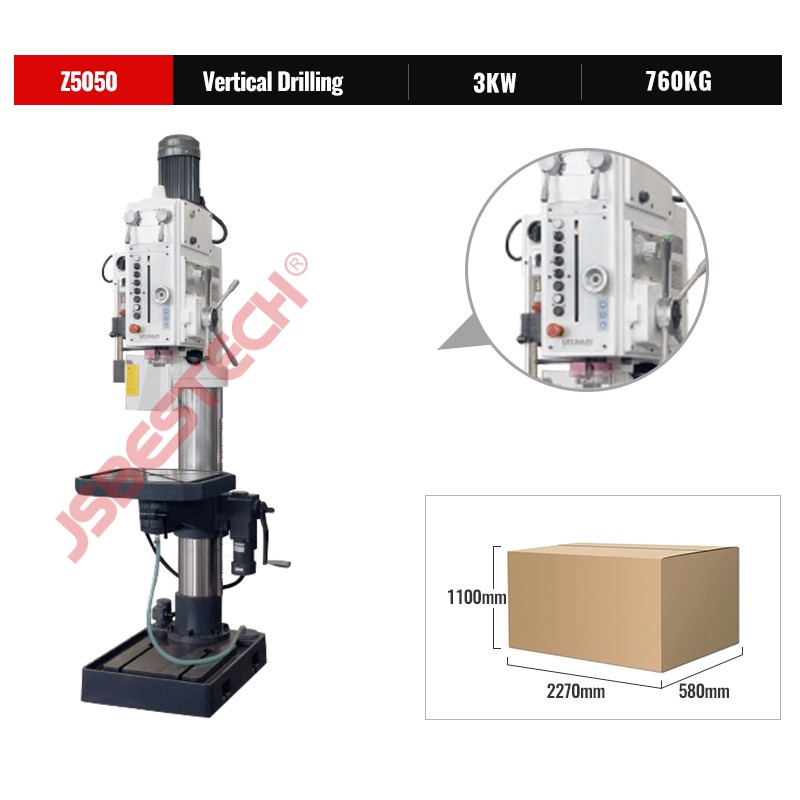

| Packing size | 2270x580x1100 |
| N.W/G.W | 760/860kg |
