Description

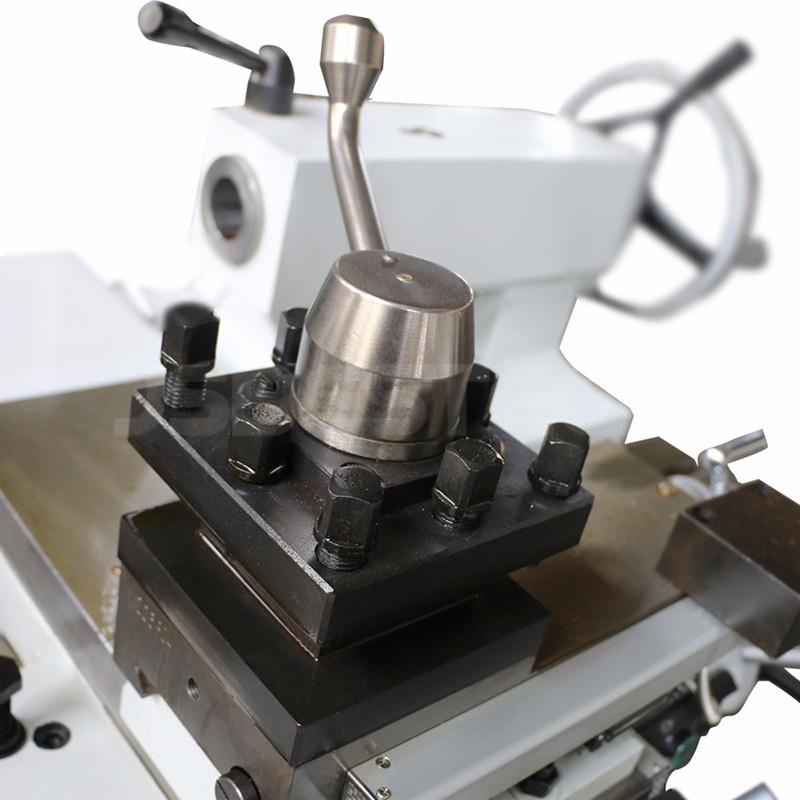

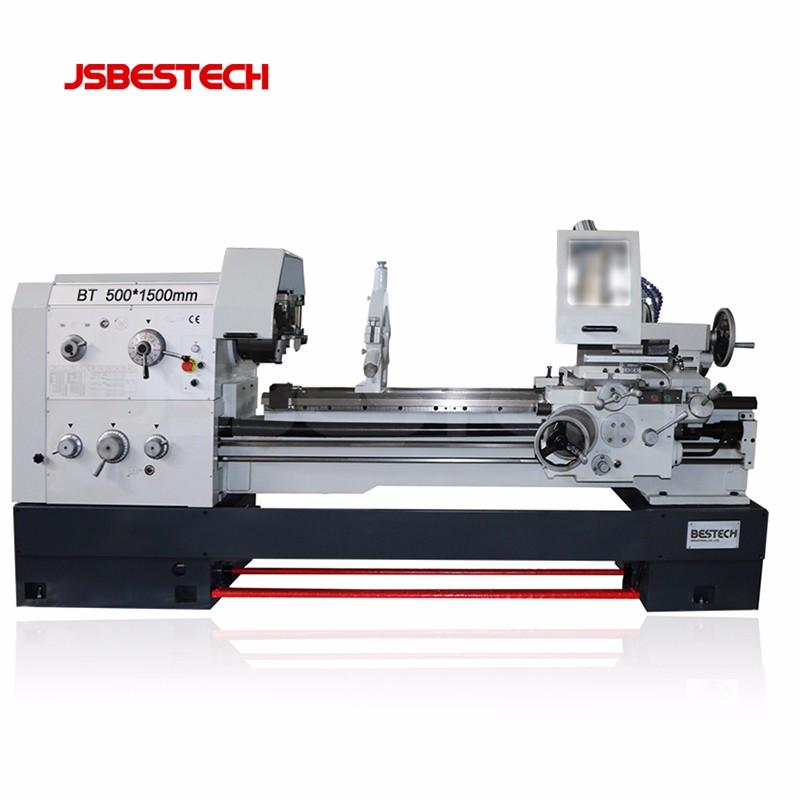

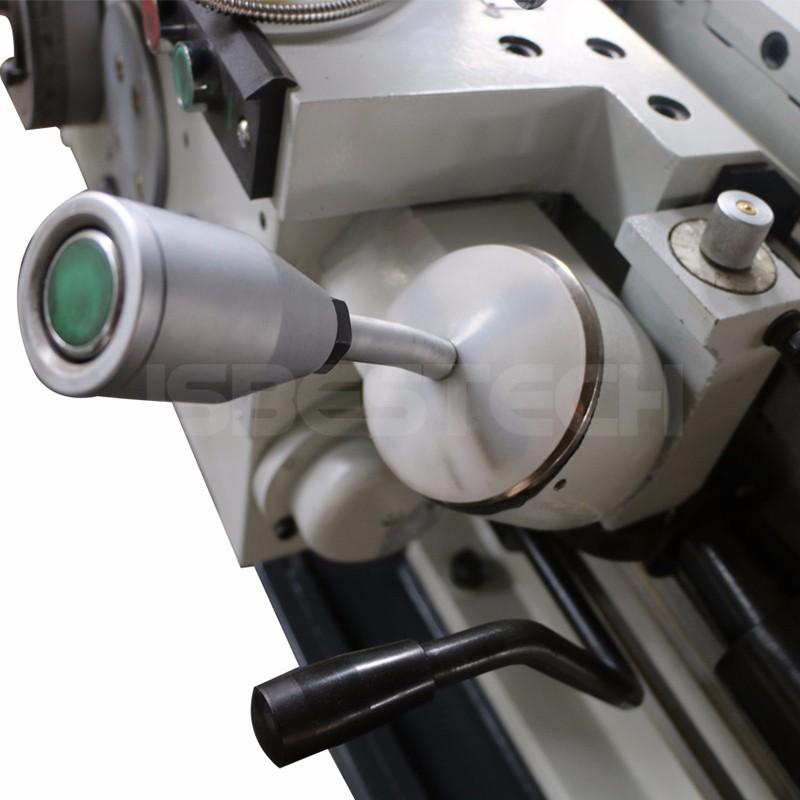

Lathe machine BT500:
1. The guide surface hardened by super-frequency and precision ground
2. All gears hardened &precision ground
3. Spindle with high rigidity and accuracy

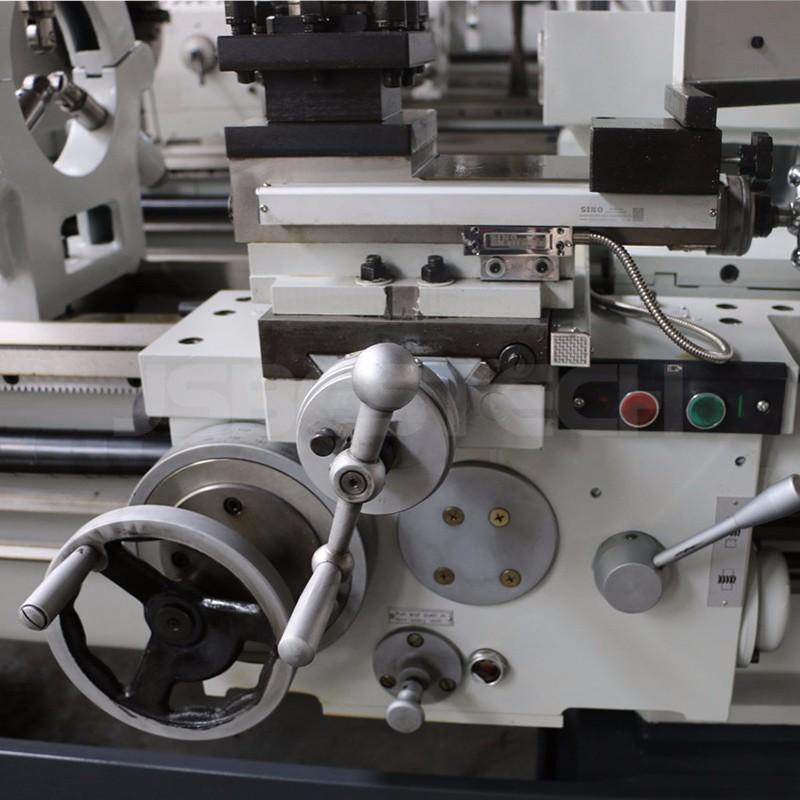

4. Rapid feed structure in apron
5. Adopt clutch system in head stock.
6. Foot brake
|
Model |
BT500 |
|
Max.swing over bed |
500mm(20'') or 660mm(26'') or800mm(31'') |
|
Max.swing over carriage |
300mm(12'') or 420mm(17'') or 560mm(22'') |
|
Max swing in gap |
710mm(28'') or 870mm(34'') or 1010mm(40'') |
|
Max.length of workpiece |
1000/1500/2000/3000mm |
|
Valid length of gap |
230mm |
|
Bed width |
405mm |
|
Spindle bore |
Ø105mm |
|
Spindle nose |
D8/D11 |
|
Taper of spindle bore |
113(1.20) |
|
Power of the main motor |
7.5kw |
|
Net weight(500mm) |
2850/3150/3400/4200kg |
|
Net weight(660mm) |
3200/3500/4000/4500kg |
|
Net weight(800mm) |
3350/3650/4200/4750kg |
|
Packing size |
(2700/3200/3700/4700)x1150x1800mm |
|
Standard Accessories |
Optional Accessories |
|
|
