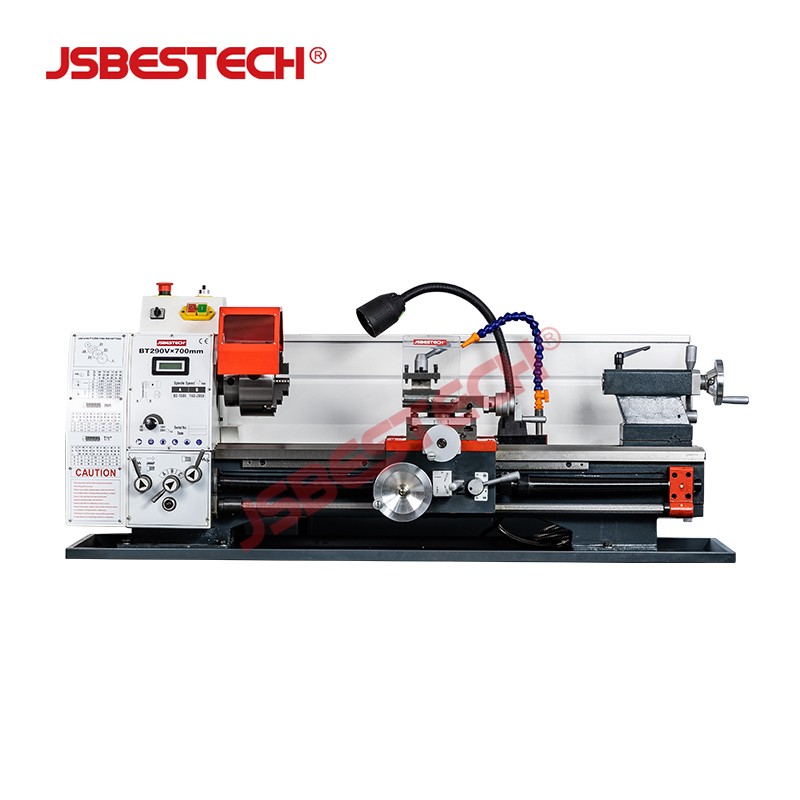

BT290V Variable Speed Mini Lathe for Metal
The BT290V is a compact, variable-speed horizontal lathe designed for precision metal turning in small workshops, maintenance shops, and educational settings. With a 1500W motor and a speed range of 50–2000 rpm, it delivers consistent performance for a variety of turning, facing, and threading operations.

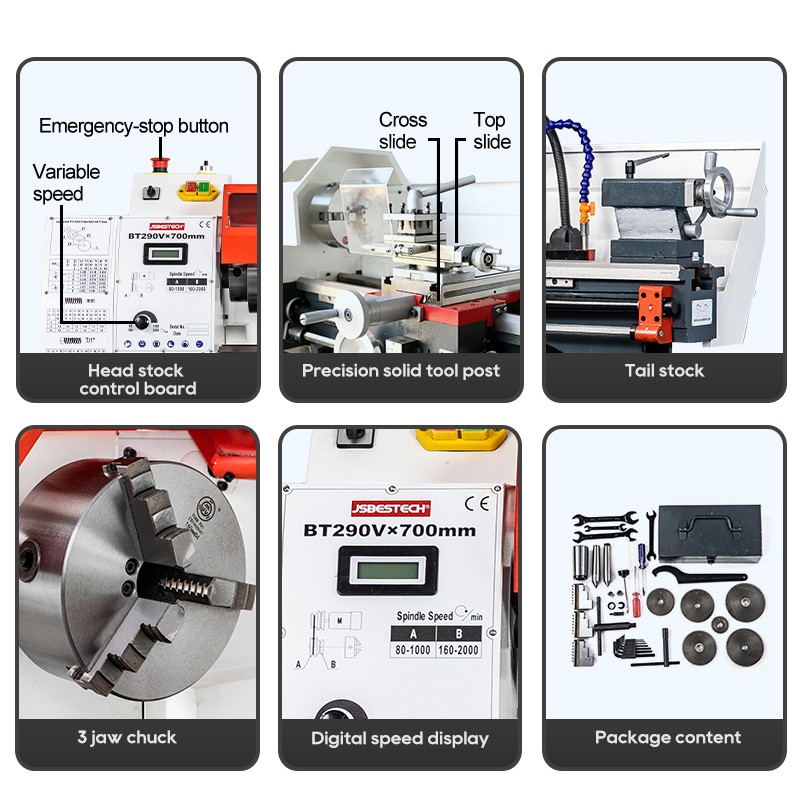

Key Features
- Variable speed control from 50 to 2000 rpm for optimal cutting conditions
- Max. turning diameter of Ø290mm and swing over cross slide of Ø178mm
- Distance between centers: 700mm or 800mm (optional)
- Spindle bore of Ø38mm with MT5 taper
- Metric thread range: 0.2–3.5mm; inch thread range: 8–48 T.P.I.
- Top slide travel: 70mm; cross slide travel: 180mm
- Tailstock quill diameter Ø38mm, travel 70mm, MT3 taper
- Accepts tool bits up to 16x16mm
- Wide bed width of 182mm for stability
- Single-phase voltage: 110V–240V
Specifications
| Item | Value |
|---|---|
| Turning diameter (Max.) | Ø290mm |
| Swing over cross slide | Ø178mm |
| Distance between centers | 700mm/800mm (Optional) |
| Width of bed | 182mm |
| Spindle bore | Ø38mm |
| Spindle taper | MT5 |
| Variable speed | 50~2000rpm |
| Top slide travel | 70mm |
| Cross slide travel | 180mm |
| Max. section of tools | 16x16mm |
| Range of metric threads | 0.2~3.5mm |
| Range of inch threads | 8~48T.P.I |
| Tailstock quill diameter | Ø38mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1500W |
| Voltage | 110V~240V(1PH) |

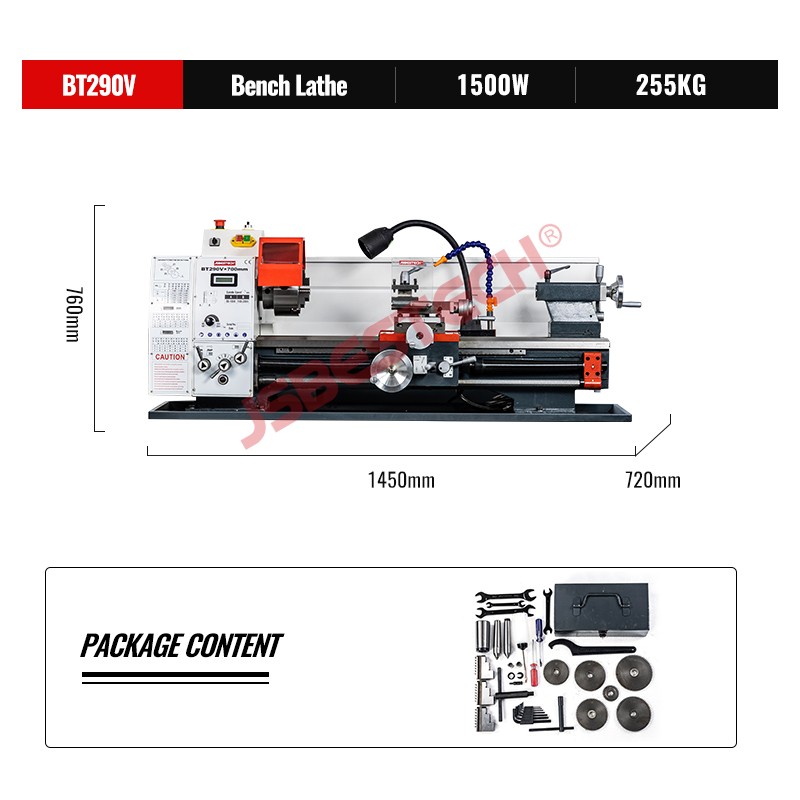

| Packing size | 1450x720x760mm |
Applications
This mini lathe is suitable for turning small metal parts, threading, facing, and drilling. It is commonly used in job shops, prototyping, hobbyist workshops, and vocational training. The variable speed drive allows users to adjust spindle speed to match the material and operation, improving surface finish and tool life.
Why Choose the BT290V?
With its robust construction, wide bed, and versatile threading capabilities, the BT290V offers a practical balance of size and performance. The optional distance between centers (700mm or 800mm) lets you choose the model that best fits your workspace. The single-phase voltage range makes it easy to install in most workshops.
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT290V Variable speed mini tornos horizontal lathe machine for metal?
The BT290V is a variable speed mini lathe designed for metal turning, manufactured by Jiangsu Bestech Industrial Co., Ltd. It offers a maximum turning diameter of Ø290mm and a distance between centers of 700mm or 800mm (optional). The spindle speed is variable from 50 to 2000 rpm, powered by a 1500W motor. It is a compact horizontal lathe suitable for workshop, educational, and light industrial applications.
Applications
- Turning small metal parts and components
- Thread cutting (metric and inch threads)
- Facing, drilling, and boring operations
- Suitable for hobbyist and educational workshops
- Light production and repair tasks
FAQ
What is the maximum turning diameter of the BT290V?
The maximum turning diameter is Ø290mm.
What is the spindle speed range of this lathe?
The spindle speed is variable from 50 to 2000 rpm.
What is the motor power of the BT290V?
The motor power is 1500W.
What is the distance between centers available?
The distance between centers is 700mm or 800mm (optional).
What is the voltage requirement?
The voltage requirement is 110V to 240V, single phase.
