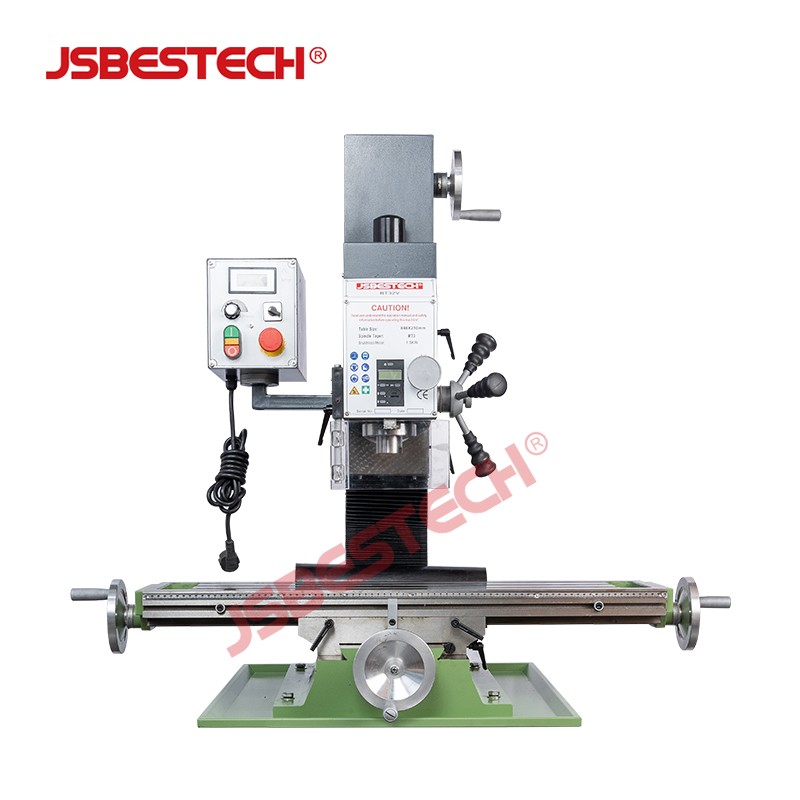

Taladro Fresador BT32V Auto Vertical Drilling Milling Machine

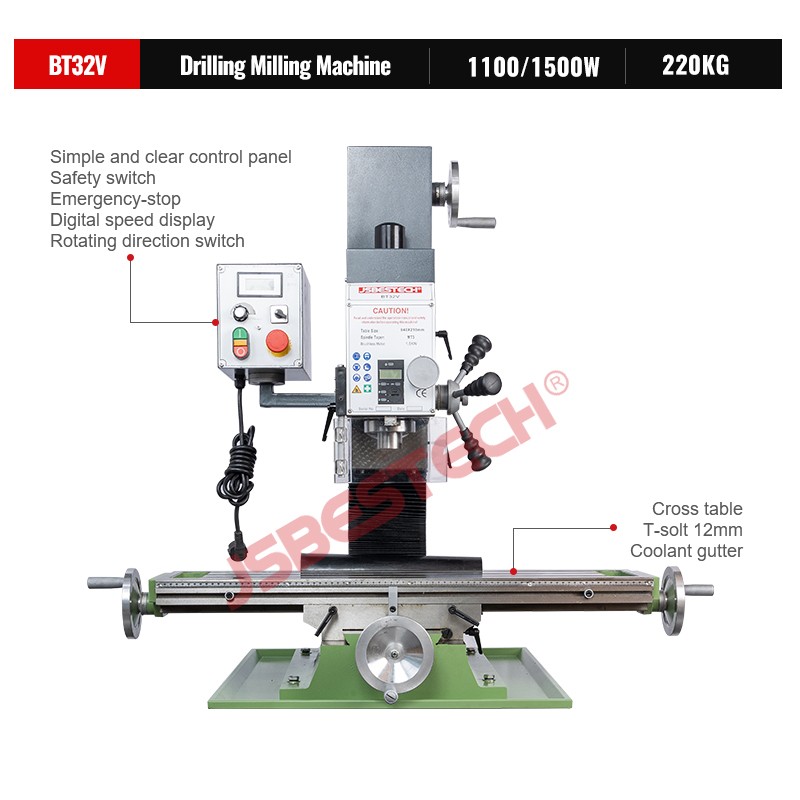

Jiangsu Bestech Industrial Co., Ltd. presents the BT32V, a vertical drilling and milling machine designed for workshops that need reliable hole-making and light milling in one unit. It combines a geared head, a tilting spindle, and a generous worktable to handle everyday metalworking tasks.
Key features
- Max. drilling capacity of Ø32 mm for general drilling work
- End milling capacity of Ø25 mm and face milling capacity of Ø80 mm

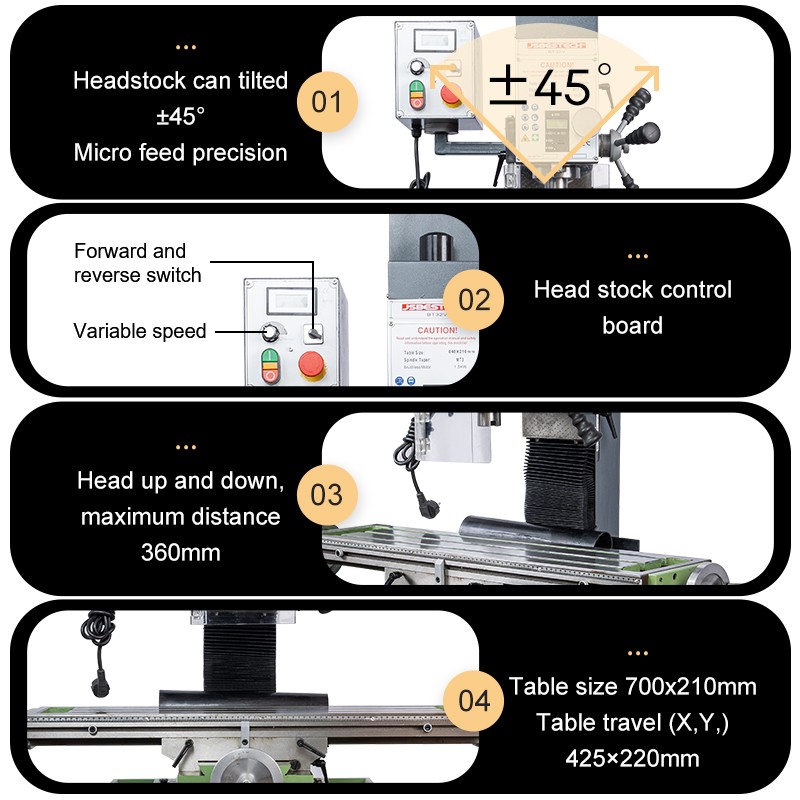

- Head tilts left and right by ±45° for angled operations
- Variable spindle speed from 50 to 2250 rpm
- MT3 spindle taper with 70 mm spindle travel
- Worktable available in 700×210 mm or 840×210 mm (optional)
- 1100 W / 1500 W brushless motor options
- T slot: 3×14 mm for clamping fixtures
Specifications
| Mill & Drill | |
|---|---|
| Max. drilling capacity | Ø32 mm |
| End milling capacity | Ø25 mm |
| Face milling capacity | Ø80 mm |
| Taper of spindle bore | MT3 |
| Spindle travel | 70 mm |
| Spindle speed | 50–2250 rpm |
| Head tilt left and right | ±45° |
| Worktable | |
| Working table size | 700×210 mm / 840×210 mm (Optional) |
| X-axis travel | 425 / 565 mm (Optional) |
| Y-axis travel | 220 mm |
| Z-axis travel | 360 mm |
| T slot | 3×14 mm |
| Distance between spindle and column | 215 mm |
| Motor power | 1100 W / 1500 W (Brushless Motor) |
| Packing size | 850×890×1150 mm |
| N.W/G.W | 220 / 240 kg |
Applications
The BT32V suits maintenance shops, fabrication workshops, and small-batch production where drilling, end milling, and face milling are required. The tilting head and adjustable table travel support a range of set-ups without moving the workpiece frequently.
Why choose the BT32V
With a compact footprint, brushless motor options, and a worktable that can be specified to match your space, the BT32V offers a practical balance of capacity and control for daily drilling and milling operations.
What is Taladro Fresador BT32V Auto Vertical Drilling Milling Machine?
The Taladro Fresador BT32V Auto Vertical Drilling Milling Machine is a vertical drilling and milling machine designed for metalworking. It offers a maximum drilling capacity of Ø32mm, end milling capacity of Ø25mm, and face milling capacity of Ø80mm. The machine features a spindle speed range of 50–2250rpm, a spindle travel of 70mm, and a head that tilts ±45° left and right. It is equipped with a worktable of 700x210mm (840x210mm optional) and T-slots of 3x14mm.
Applications
- Drilling holes up to Ø32mm in metal workpieces
- End milling slots and edges with up to Ø25mm cutters
- Face milling surfaces with up to Ø80mm cutters
- Angular drilling and milling with head tilted ±45°
- General maintenance and repair tasks in workshops
FAQ
What is the maximum drilling capacity of the BT32V?
The maximum drilling capacity is Ø32mm.
What is the spindle speed range of this machine?
The spindle speed range is 50 to 2250 rpm.
Can the head be tilted for angled operations?
Yes, the head can tilt left and right by ±45°.
What are the worktable dimensions?
The standard worktable size is 700x210mm, with an optional 840x210mm size.
What is the weight of the machine?
The net weight is 220kg and the gross weight is 240kg.
