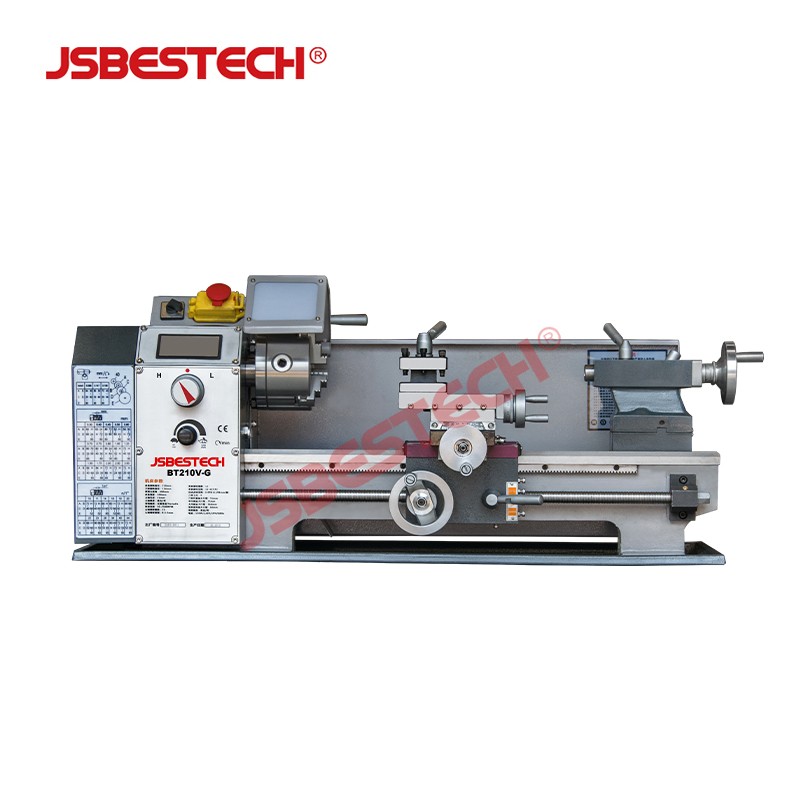

BT210V-G Small Mini Metal Lathe Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT210V-G, a compact and versatile mini metal lathe designed for precision turning in small workshops, hobbyist studios, and light industrial applications. With a 600W brushless motor and variable speed control, this lathe delivers reliable performance for a wide range of machining tasks.
Key Features
- Powerful Brushless Motor: 550W brushless motor provides smooth, efficient power with minimal maintenance.
- Variable Speed: Spindle speed ranges from 50 to 2500 RPM, allowing optimal cutting speeds for different materials.
- Compact Design: Small footprint with a 400mm distance between centers, ideal for space-limited workshops.
- Precision Turning: Maximum turning diameter of Ø210mm and swing over cross slide of Ø140mm.
- Threading Capability: Cuts metric threads from 0.5 to 3mm and inch threads from 10 to 44 T.P.I.
- Sturdy Construction: 100mm bed width ensures stability and reduces vibration during operation.
- Wide Voltage Compatibility: Operates on 110V to 240V single-phase power, suitable for various regions.
Technical Specifications
| Specification | Value |
|---|---|
| Turning diameter (Max.) | Ø210mm |
| Swing over cross slide | Ø140mm |
| Distance between centers | 400mm |
| Width of bed | 100mm |
| Spindle bore | Ø21mm |
| Spindle taper | MT3 |
| Variable speed | 50~2500rpm |
| Top slide travel | 55mm |
| Cross slide travel | 75mm |
| Max. section of tools | 10x10mm |
| Range of metric threads | 0.5~3mm |
| Range of inch threads | 10~44T.P.I |
| Tailstock quill diameter | Ø22mm |
| Tailstock quill travel | 60mm |
| Taper of tailstock quill | MT2 |
| Brushless motor | 550W |
| Voltage | 110V~240V (1PH) |

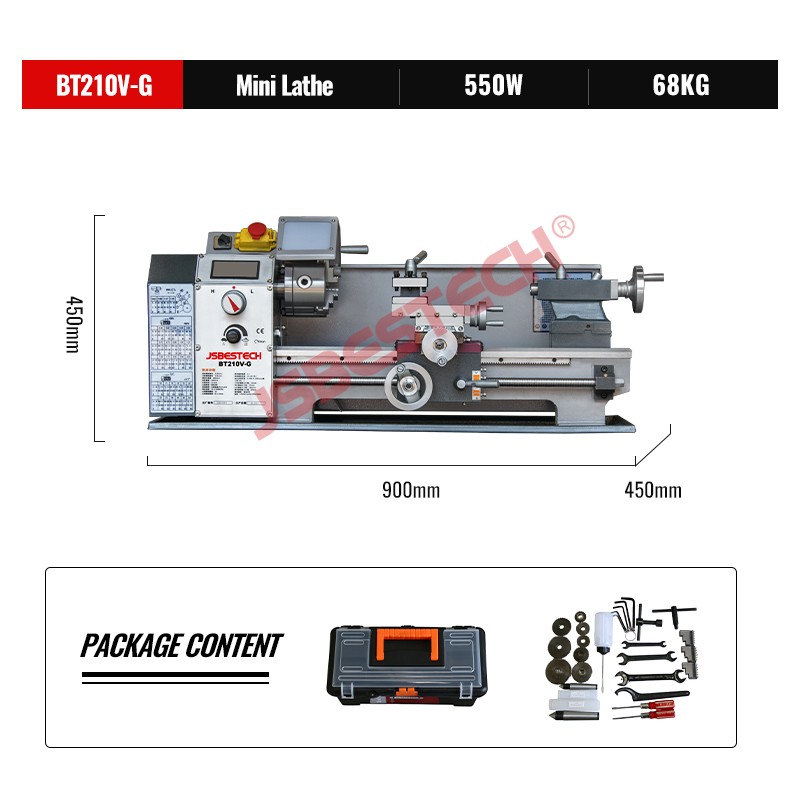

| Packing size | 900x450x450mm |
Applications
The BT210V-G is suitable for turning, facing, drilling, threading, and knurling operations on small metal workpieces. It is an excellent choice for model making, prototyping, repair shops, and educational settings.
Why Choose the BT210V-G?
This mini lathe combines robust construction with user-friendly features, making it a reliable tool for both beginners and experienced machinists. Its brushless motor ensures longevity and consistent performance, while the variable speed control offers flexibility across different materials.
For more information or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT210V-G Small mini metal 210mm 600W lathe machine?
The BT210V-G is a small mini metal lathe with a maximum turning diameter of 210mm and a distance between centers of 400mm. It is equipped with a 550W brushless motor and variable speed control from 50 to 2500 rpm. The lathe features a 100mm wide bed, a spindle bore of 21mm, and supports both metric and inch threading. It is designed for precision machining of small metal parts.
Applications
- Turning and facing small metal workpieces
- Thread cutting in metric and inch systems
- Drilling and boring operations on metal parts
- Suitable for hobbyist and small workshop use
- Prototype development and repair tasks
FAQ
What is the maximum turning diameter of the BT210V-G lathe?
The maximum turning diameter is 210mm.
What is the spindle speed range of this lathe?
The variable speed range is 50 to 2500 rpm.
What is the power of the motor?
It uses a 550W brushless motor.
What is the distance between centers?
The distance between centers is 400mm.
What threading capabilities does it have?
It can cut metric threads from 0.5 to 3mm and inch threads from 10 to 44 T.P.I.
