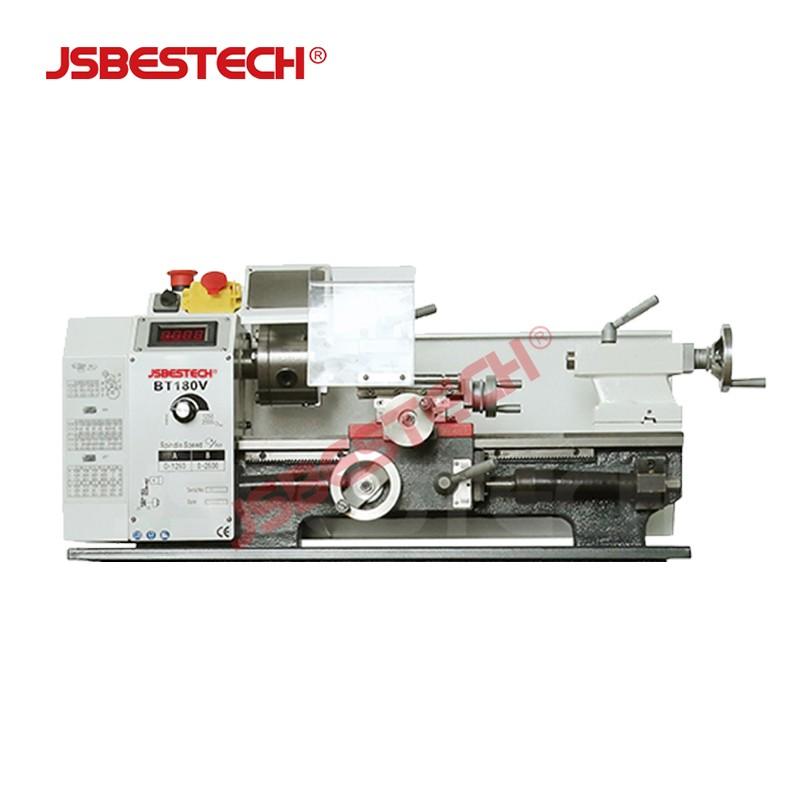

BT180V Mini Bench Lathe — Compact, Durable, Brushless
The BT180V is a single-phase mini bench lathe built for workshops, prototyping labs, and maintenance benches where space is limited but capability is not. A brushless motor and variable-speed drive deliver smooth power across a wide spindle range, while the cast bed and precision slides support accurate turning, facing, and threading.
Key Features
- Brushless motor rated 600W for quiet, low-maintenance operation
- Variable spindle speed from 50 to 2500 rpm
- Single-phase voltage: 110V or 220V (110V~240V, 1PH)
- Distance between centers: 400mm or 500mm (optional)
- Spindle bore Ø21mm with MT3 spindle taper
- Metric and inch threading capability
- Compact bench-top footprint with a 100mm bed width
Applications
Ideal for turning small shafts, bushings, spacers, and model parts. The threading range supports both metric and inch work, making the lathe suitable for repair shops, education, and light production.
Specifications
| Turning diameter (Max.) | Ø180mm |
|---|---|
| Swing over cross slide | Ø110mm |
| Distance between centers | 400mm / 500mm (Optional) |
| Width of bed | 100mm |
| Spindle bore | Ø21mm |
| Spindle taper | MT3 |
| Variable speed | 50~2500rpm |
| Top slide travel | 75mm |
| Cross slide travel | 95mm |
| Max. section of tools | 10x10mm |
| Range of metric threads | 0.3~3mm |
| Range of inch threads | 10~44 T.P.I |
| Tailstock quill diameter | Ø25mm |
| Tailstock quill travel | 50mm |
| Taper of tailstock quill | MT2 |
| Motor power | 600W |
| Voltage | 110V~240V (1PH) |

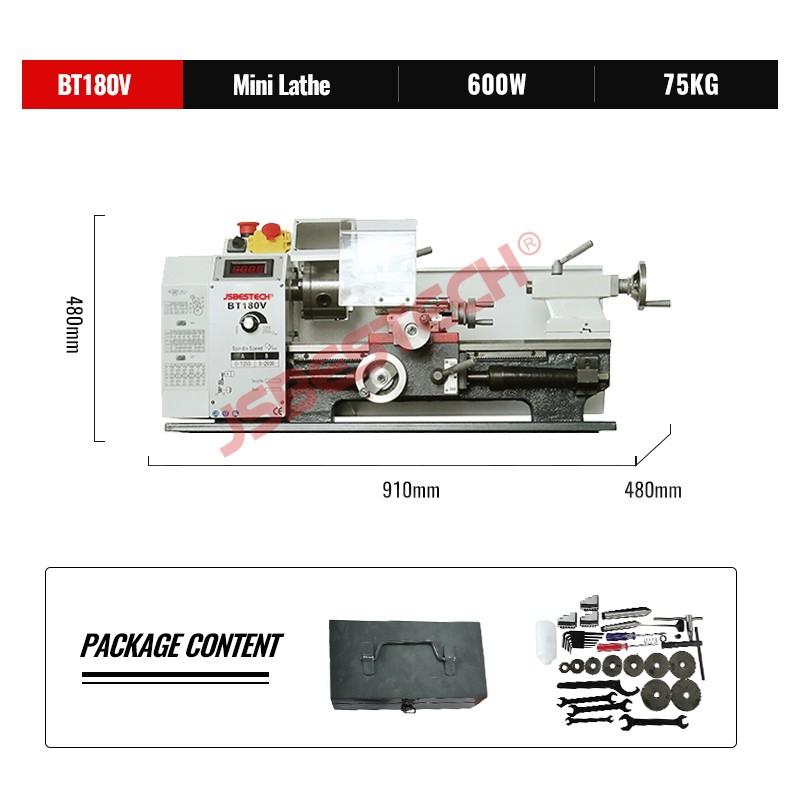

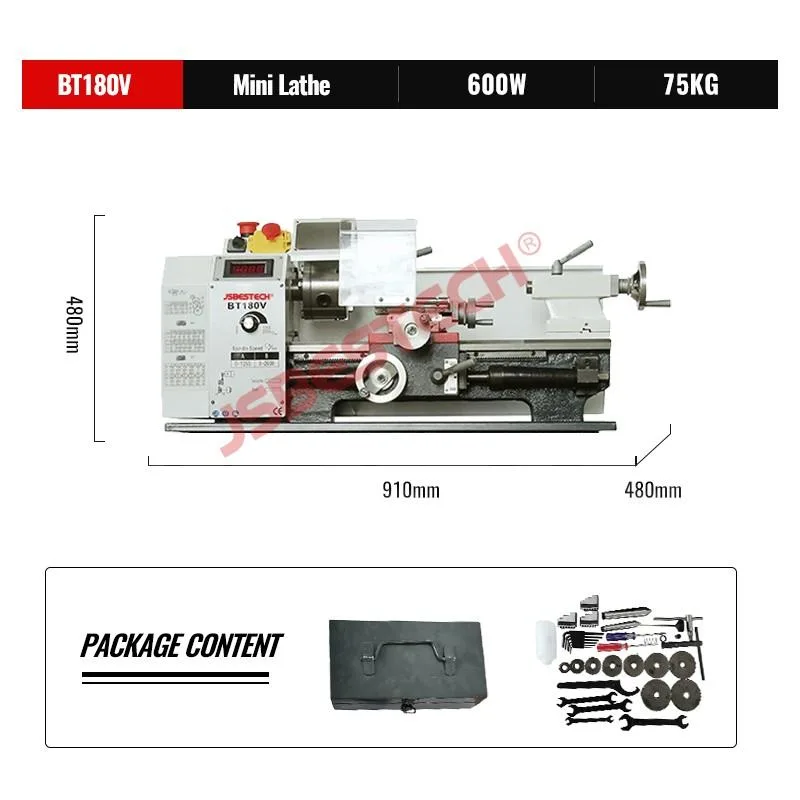

| Packing size | 910x480x480mm |
Why Choose the BT180V
The brushless motor reduces brush wear and maintenance compared with conventional motors, while the variable-speed control lets you match speed to material and operation. The rigid bed and precise slides help maintain repeatability on small-diameter work.
Ordering Options
Choose 110V or 220V single-phase input, and select 400mm or 500mm distance between centers. For export inquiries, contact Jiangsu Bestech Industrial Co., Ltd. with your required configuration.
What is BT180V 110V or 220V single phase Durable brushless motor mini bench lathe machine?
The BT180V is a single-phase mini bench lathe designed for compact workshops, prototyping labs, and maintenance benches. It features a 600W brushless motor and variable spindle speed from 50 to 2500 rpm, providing smooth power for turning, facing, and threading. The lathe supports 110V or 220V single-phase input and offers a distance between centers of 400mm or 500mm (optional). With a Ø21mm spindle bore and MT3 spindle taper, it handles small-diameter workpieces with precision.
Applications
- Turning small shafts, bushings, and spacers in repair shops
- Model making and hobbyist projects requiring precision turning
- Educational settings for teaching basic lathe operations
- Light production of custom parts in small batches
- Maintenance and prototyping in engineering workshops
FAQ
What is the motor power of the BT180V mini bench lathe?
The BT180V is equipped with a 600W brushless motor.
What is the spindle speed range of this lathe?
The spindle speed is variable from 50 to 2500 rpm.
What voltage options are available for the BT180V?
It operates on single-phase 110V or 220V power.
What is the distance between centers for this lathe?
The distance between centers is 400mm or 500mm (optional).
What is the spindle bore size of the BT180V?
The spindle bore is Ø21mm.
