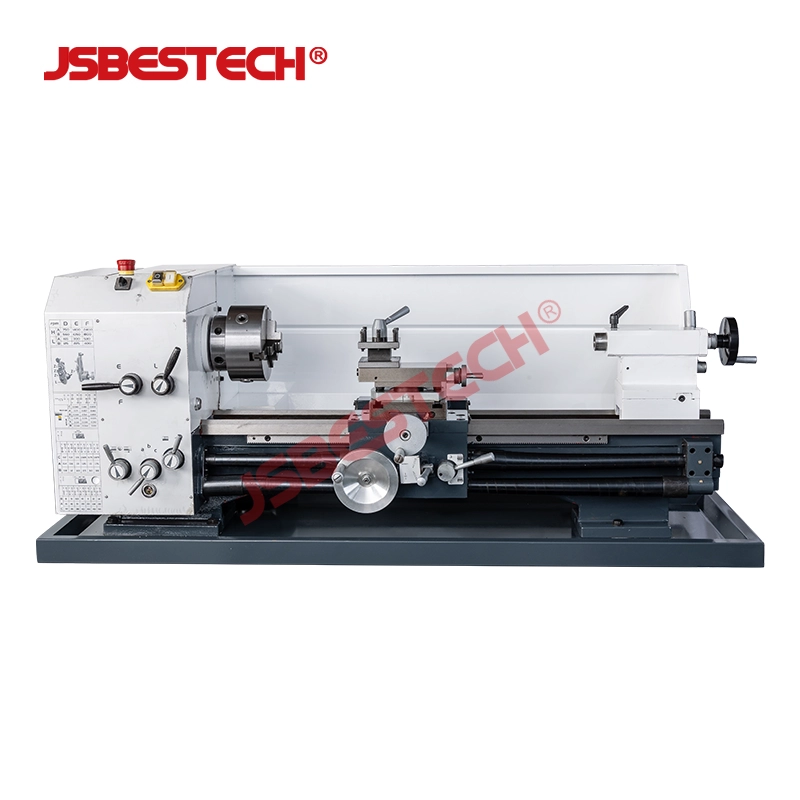

Factory Direct Sales BT310G Manual Lathe for Multi - Variety Parts Production

BT310G Manual Lathe: Reliable Performance for Multi-Variety Parts Production

The BT310G manual lathe from Jiangsu Bestech Industrial Co., Ltd. is engineered for workshops and factories that require a dependable, versatile machine for producing a wide range of parts. With a maximum turning diameter of Ø310mm and a swing over cross slide of Ø190mm, this lathe handles diverse workpieces with ease. Its 180mm bed width provides stability during operation, while the Ø38mm spindle bore accommodates a variety of bar stock sizes.

Key Specifications

• Turning Diameter (Max.): Ø310mm
• Swing Over Cross Slide: Ø190mm
• Width of Bed: 180mm
• Spindle Bore: Ø38mm

These specifications make the BT310G suitable for machining a variety of parts, from small precision components to larger cylindrical workpieces. The robust bed width ensures minimal vibration, contributing to smooth surface finishes and extended tool life.

Designed for Multi-Variety Production

Whether you are producing one-off parts or running small batches, the BT310G offers the flexibility needed for multi-variety production. Its manual controls provide direct operator feedback, making it ideal for job shops, maintenance facilities, and educational institutions. The lathe's construction emphasizes durability and ease of use, allowing operators to quickly set up and machine different part types.

Turning Diameter (Max.)	Ø310mm
Swing Over Cross Slide	Ø190mm
Distance Between Centers	700mm
Center Height	155mm
Width Of Bed	180mm
Spindle Bore	Ø38mm
Taper Of Spindle Bore	MT5
Spindle Speed (12 Steps)	125~2400rpm
Top Slide Travel	65mm
Cross Slide Travel	150mm
Max. Section Of Tools	16x16mm
Range Of Metric Threads (18 Kinds)	0.2~3.5mm
Range Of Inch Threads (18 Kinds)	8~56T.P.I
Tailstock Quill Diameter	Ø38mm
Tailstock Quill Travel	70mm
Taper Of Tailstock Quill	MT3
Motor Power (Double Motor)	1.5KW
Voltage	380V~440V (3PH)
Packing Size	1500x720x680mm

Features at a Glance

• Generous turning capacity for diverse part sizes
• Stable bed design for accurate machining
• Spindle bore suitable for common bar stock
• Manual operation for precise control
• Factory direct sales for cost-effective acquisition

As a factory direct offering, the BT310G provides a practical solution for businesses seeking a reliable lathe without unnecessary intermediaries. Jiangsu Bestech Industrial Co., Ltd. focuses on delivering industrial machinery that meets the demands of modern production environments.

Applications

The BT310G is well-suited for turning, facing, threading, and drilling operations on materials such as steel, aluminum, and plastics. Its capacity to handle multiple part varieties makes it a valuable asset in general machining, repair work, and small-scale manufacturing.

For more information about the BT310G manual lathe or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd. Our team can provide details on specifications, options, and availability.
