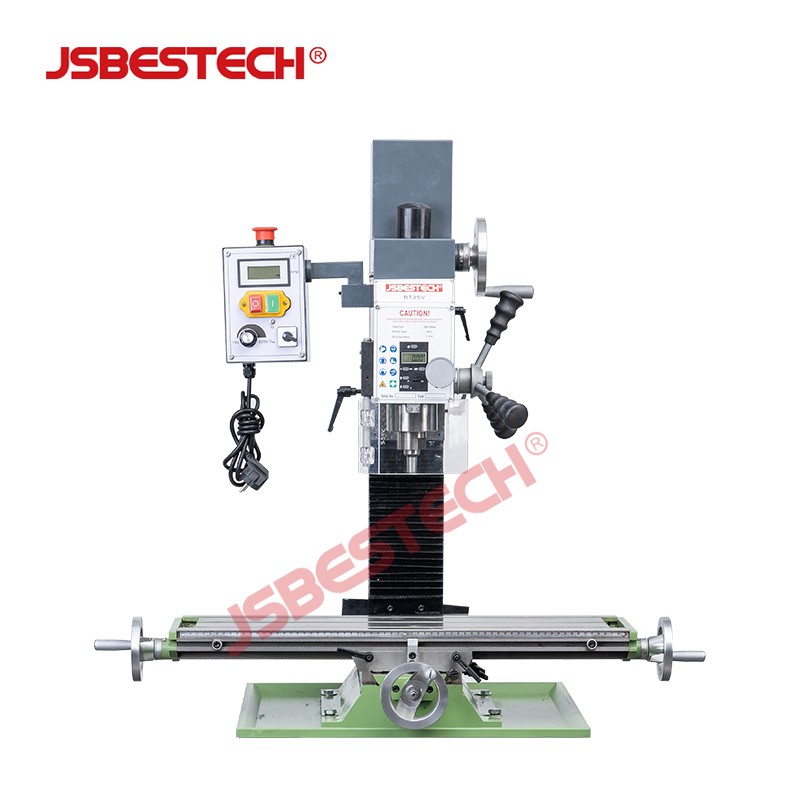

BT25V Mini Manual Drilling and Milling Machine
The BT25V is a compact manual drilling and milling machine designed for workshops, maintenance departments, and small-batch production. It combines drilling and milling functions in one bench-friendly unit, making it a practical choice where space is limited but machining versatility is required.
Key Features

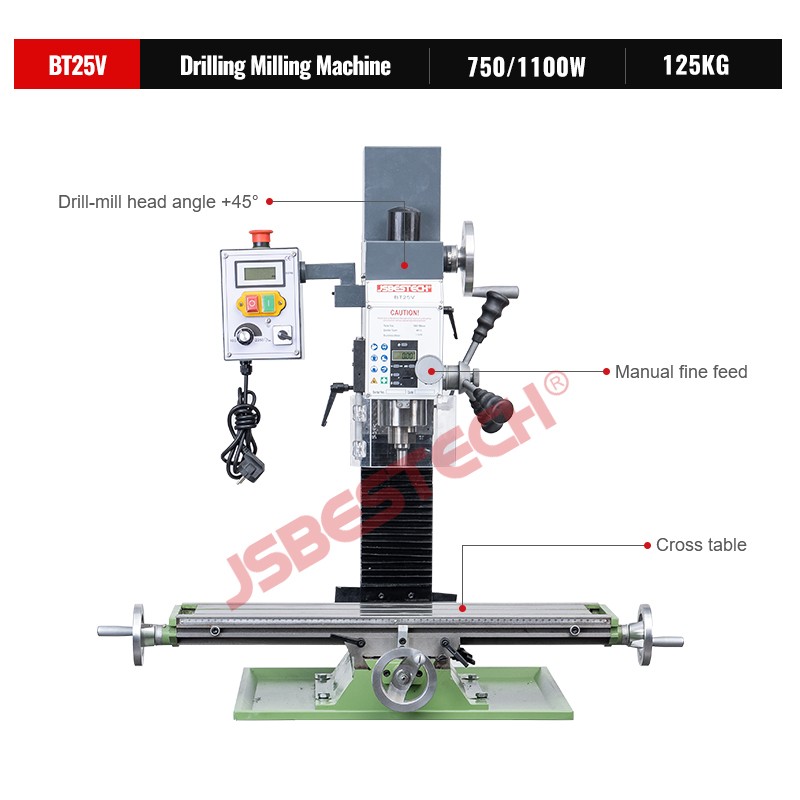

- Combined drilling and milling capability in a single manual machine
- Spindle speed range of 50–2250 rpm for use across different materials and tool sizes

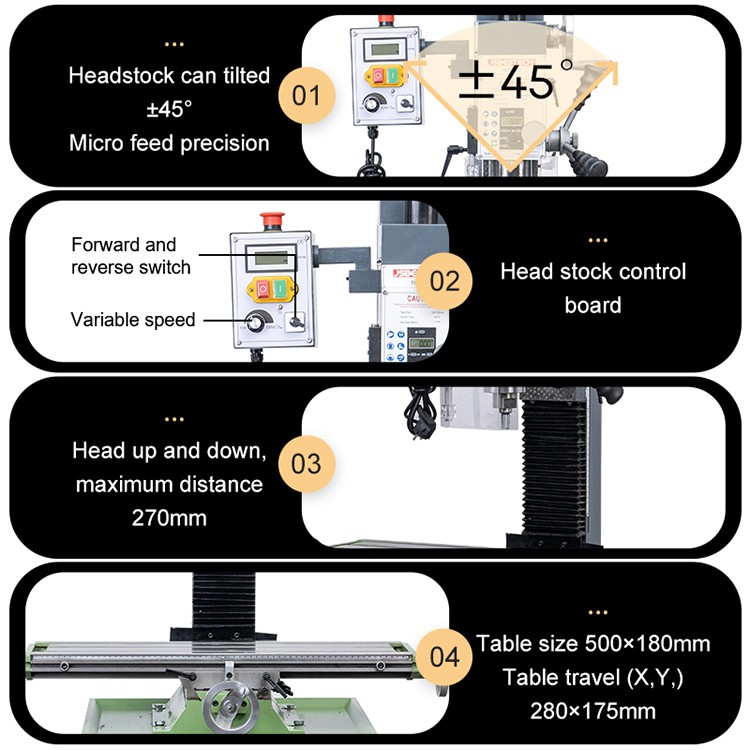

- Head tilts left and right up to ±45° for angled work
- MT3 spindle bore taper
- Choice of worktable sizes to suit different workpiece lengths
Specifications
| Mill & Drill | |
|---|---|
| Max. drilling capacity | Ø25 mm |
| End milling capacity | Ø20 mm |
| Face milling capacity | Ø63 mm |
| Taper of spindle bore | MT3 |
| Spindle travel | 50 mm |
| Spindle speed | 50–2250 rpm |
| Head tilt left and right | ±45° |
| Worktable | |
| Working table size | 500 × 180 mm / 700 × 180 mm (optional) |
| X-axis travel | Cross travel: 175 mm |
| Longitudinal travel | 320 / 520 mm |
Applications
The BT25V is suited to general workshop drilling and light milling tasks, including hole making, slotting, and face milling on small to medium workpieces. Its manual control layout keeps operation straightforward for operators who prefer direct, hands-on control of the feed and positioning.
Why Choose the BT25V
With a 500 × 180 mm table as standard and an optional 700 × 180 mm table, the machine can be matched to different workpiece sizes. The 175 mm cross travel and 320 / 520 mm longitudinal travel provide useful working range within a compact footprint. The wide spindle speed range and tilting head add flexibility for varied jobs.
Manufactured by Jiangsu Bestech Industrial Co., Ltd., the BT25V is built for reliable day-to-day use in workshops and maintenance settings.
What is BT25V Mini Manual Drilling and Milling Machine?
The BT25V Mini Manual Drilling and Milling Machine is a compact, manually operated machine that combines drilling and light milling in one unit. It offers a spindle speed range of 50–2250 rpm, an MT3 spindle taper, and a head that tilts ±45° for angled work. With a 500 × 180 mm worktable (700 × 180 mm optional), 175 mm cross travel, and 320/520 mm longitudinal travel, it is designed for workshops, maintenance departments, and small-batch production where space is limited.
Applications
- General workshop drilling and hole making on small to medium workpieces
- Light milling such as slotting and face milling
- Maintenance and repair tasks requiring combined drilling and milling
- Small-batch production with manual feed and positioning control
- Angled drilling and milling using the ±45° tilting head
FAQ
What is the spindle speed range of the BT25V?
The BT25V has a spindle speed range of 50–2250 rpm.
What is the maximum drilling capacity of the BT25V?
The maximum drilling capacity is Ø25 mm.
What are the worktable size options for the BT25V?
The standard worktable size is 500 × 180 mm, with an optional 700 × 180 mm worktable.
What is the spindle taper of the BT25V?
The spindle bore taper is MT3.
Can the BT25V head be tilted for angled work?
Yes, the head tilts left and right up to ±45°.
