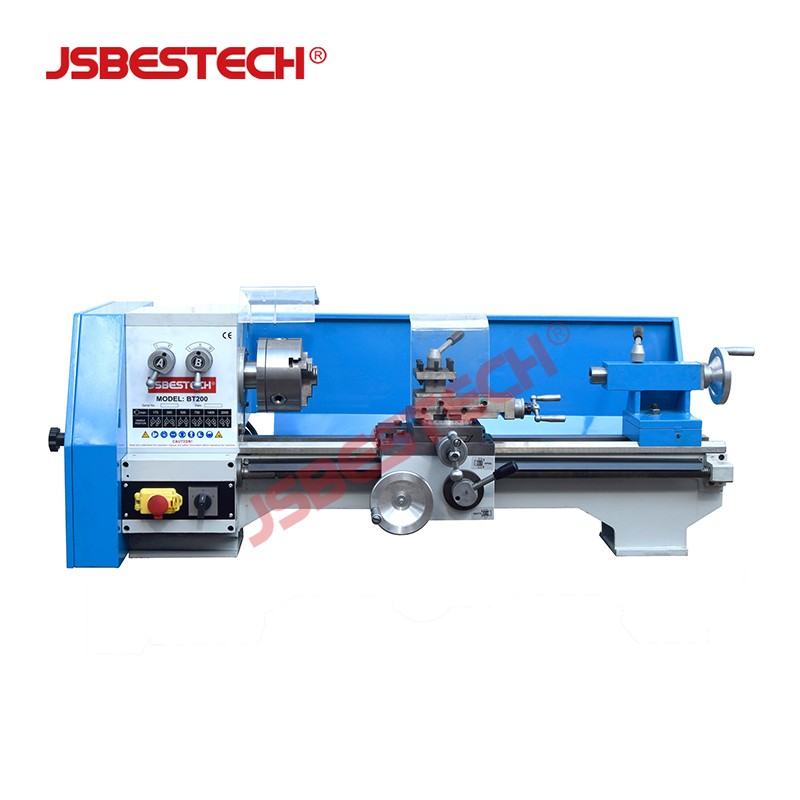

BT200 Between Centers 350mm Metal Lathe Equipment
Jiangsu Bestech Industrial Co., Ltd. presents the BT200, a compact metal lathe designed for precision turning between centers. With a 350mm distance between centers (520mm optional), this machine is suitable for small to medium-sized workshops, maintenance facilities, and educational settings.
Key Features
- Max. turning diameter: Ø200mm
- Swing over cross slide: Ø115mm
- Distance between centers: 350mm (520mm optional)
- Spindle bore: Ø20mm with MT3 taper
- 6-step spindle speed: 140~1710rpm
- Metric thread range: 0.4~3mm; inch thread range: 8~32 T.P.I.
- Motor power: 550W, voltage: 110V~240V (1PH)
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø200mm |
| Swing over cross slide | Ø115mm |
| Distance between centers | 350mm/520mm (Optional) |
| Width of bed | 125mm |
| Spindle bore | Ø20mm |
| Spindle taper | MT3 |
| Spindle speed (6 steps) | 140~1710rpm |
| Top slide travel | 78mm |
| Cross slide travel | 119mm |
| Max. section of tools | 10x10mm |
| Range of metric threads | 0.4~3mm |
| Range of inch threads | 8~32 T.P.I |
| Tailstock quill diameter | Ø22mm |
| Tailstock quill travel | 35mm |
| Taper of tailstock quill | MT2 |
| Motor power | 550W |
| Voltage | 110V~240V (1PH) |

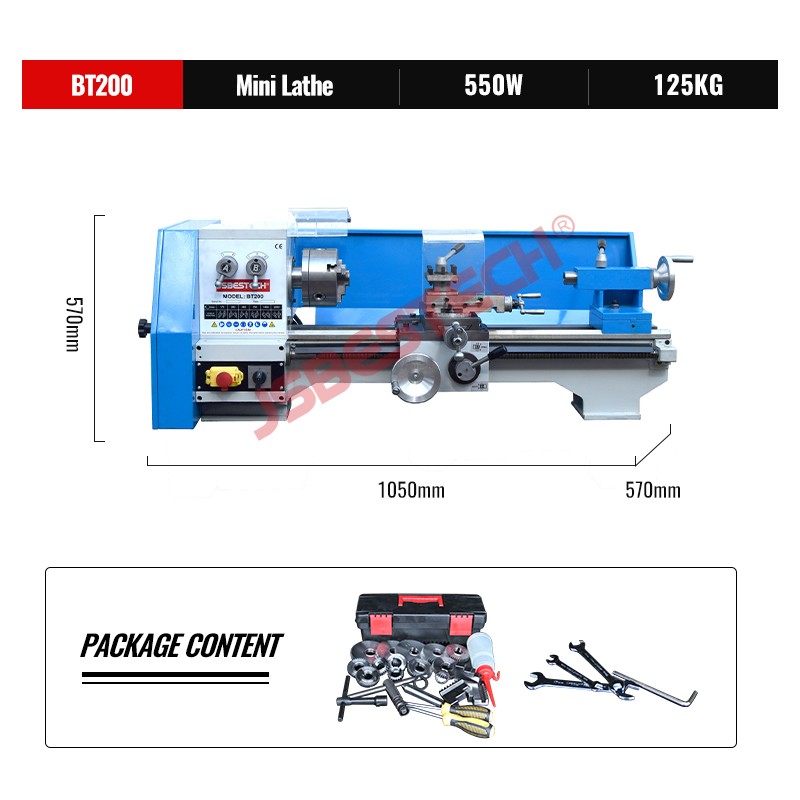

| Packing size | 1050x570x570mm |
Applications
The BT200 is ideal for turning, facing, threading, and drilling operations on metal workpieces. Its compact design and variable speed range make it a versatile choice for prototyping, repair work, and light production.
Why Choose the BT200?
Jiangsu Bestech Industrial Co., Ltd. manufactures the BT200 with a focus on reliability and ease of use. The machine features a rigid bed, precise spindle, and smooth operation, ensuring consistent results. Available in various sizes, colors, and weights to meet different requirements. Contact us for more information.
What is BT200 between centers 350mm metal lathe equipment?
The BT200 is a compact metal lathe designed for precision turning between centers, with a 350mm distance between centers (520mm optional). It features a 20mm spindle bore with MT3 taper, a 6-step spindle speed range of 140–1710rpm, and a 550W motor. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is suitable for small to medium-sized workshops, maintenance facilities, and educational settings.
Applications
- Precision turning of small metal parts between centers
- Workshop and maintenance facility machining tasks
- Educational and training purposes in metalworking
- Thread cutting with metric (0.4–3mm) and inch (8–32 T.P.I.) capabilities
- Light to medium-duty metalworking projects
FAQ
What is the maximum turning diameter of the BT200 lathe?
The BT200 has a maximum turning diameter of Ø200mm.
What is the spindle speed range of the BT200?
The spindle speed range is 140 to 1710rpm, with 6 steps.
What is the distance between centers for this lathe?
The standard distance between centers is 350mm, with an optional 520mm version available.
What is the motor power and voltage requirement?
The BT200 is equipped with a 550W motor and operates on 110V to 240V single-phase power.
What threading capabilities does the BT200 offer?
It can cut metric threads from 0.4 to 3mm and inch threads from 8 to 32 T.P.I.
