Description
| Turning diameter (Max.) | Ø360mm |
| Swing over cross slide | Ø223mm |
| Distance between centers | 1000mm |
| Center heigh | 179mm |
| Width of bed | 187mm |
| Spindle nose | D1-5 |
| Spindle bore | Ø52mm |
| Taper of spindle bore | MT6 |
| Spindle speed (8 steps) | 70~2000rpm |
| Top slide travel | 95mm |
| Cross slide travel | 160mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (26 kinds) | 0.4~7mm |
| Range of inch threads (34 kinds) | 4~56T.P.I |
| Lead screw diameter | Ø22mm |
| Lead screw thread | 3mm or 8T.P.I |
| Tailstock quill diameter | Ø32mm |
| Tailstock quill travel | 100mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5kw |
| Voltage/AC | 380V~440V (3PH) |

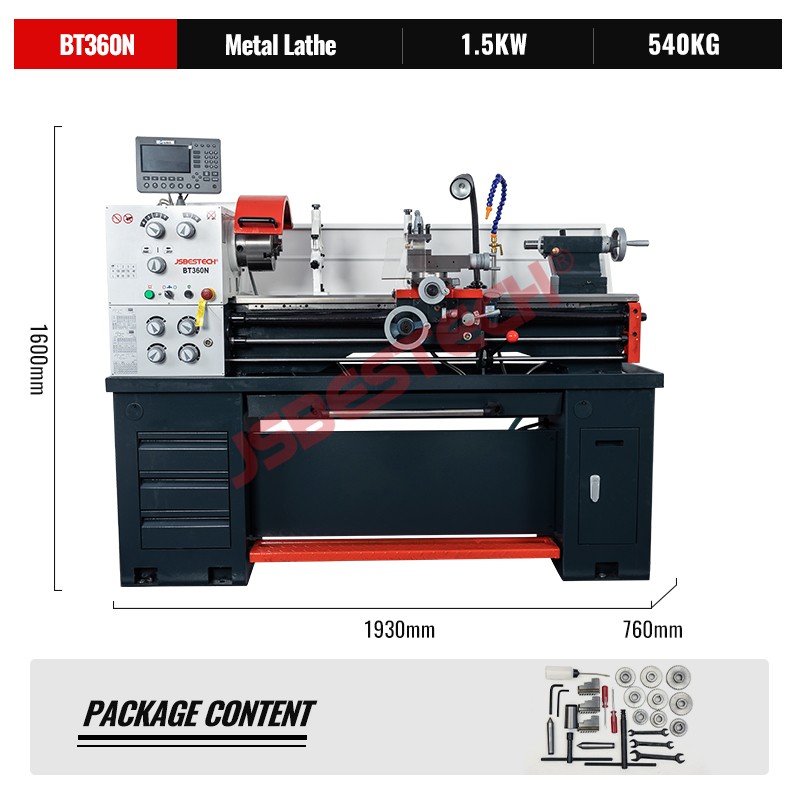

| Packing size | 1930x760x1600mm |
