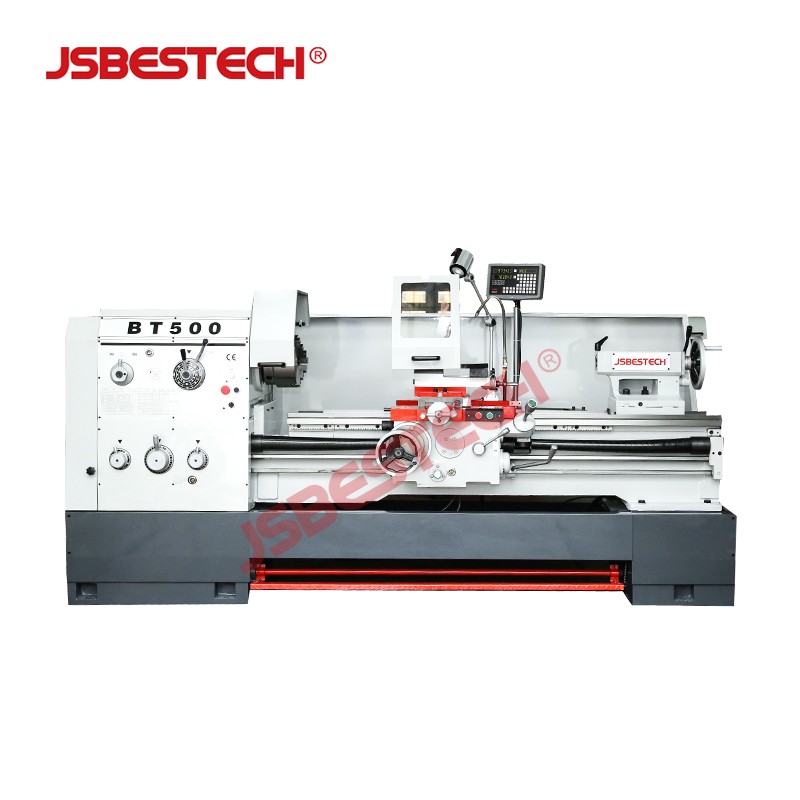

BT500 105mm Horizontal Metal Lathe with Big Spindle Bore
The BT500 is a horizontal metal lathe designed for workshops that need a large turning capacity and a wide spindle bore. With a maximum turning diameter from Ø500 mm to Ø770 mm (optional) and a spindle bore of Ø80 mm or Ø105 mm (optional), it handles long shafts, pipes, and large-diameter workpieces with ease. The machine is built on a 405 mm wide bed for stability during heavy cuts.

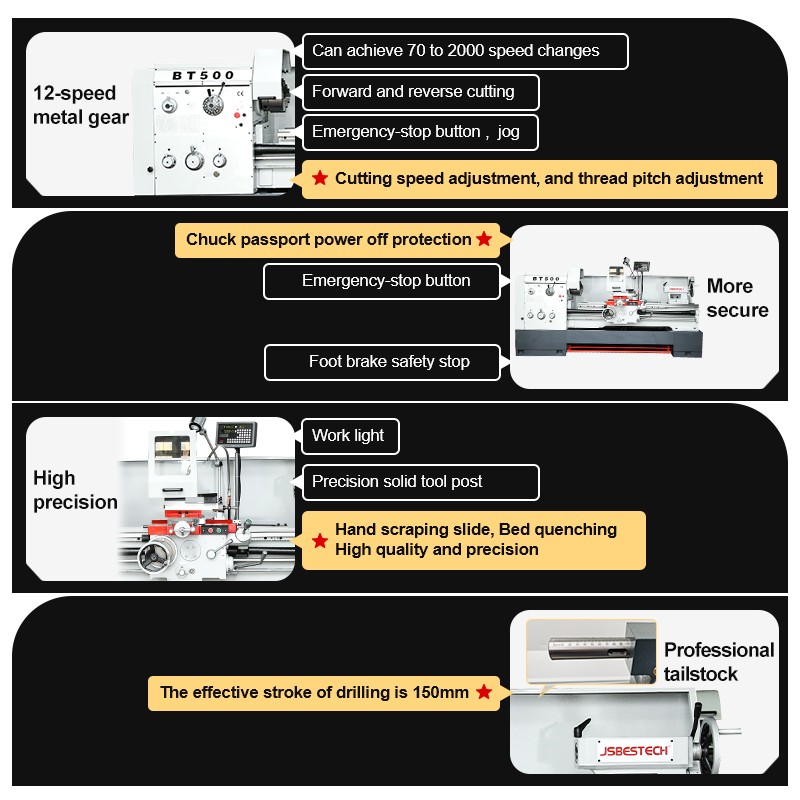

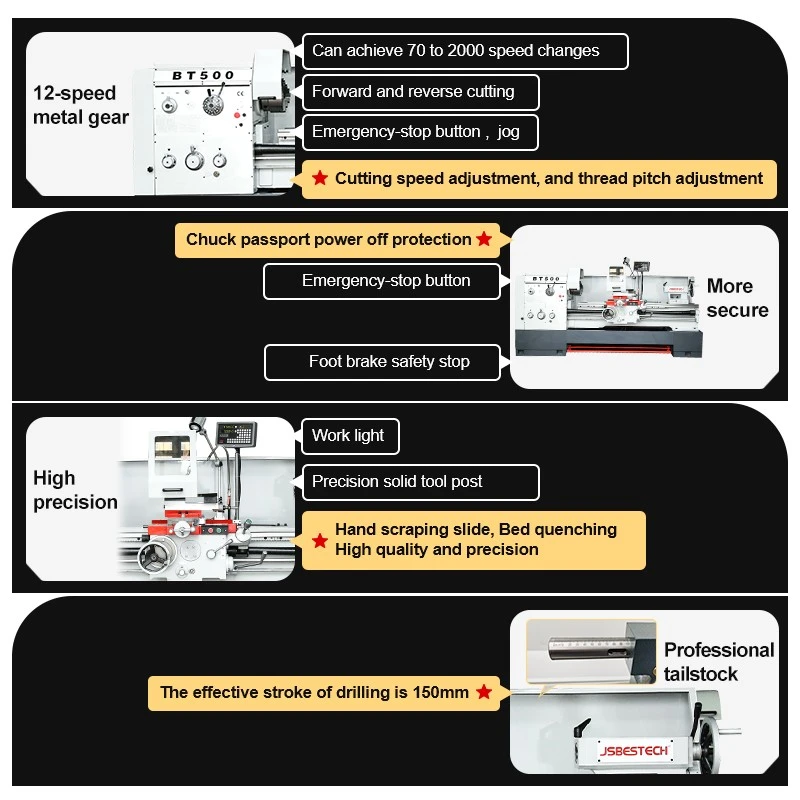

Key Features
- Large spindle bore: Ø80 mm or Ø105 mm (optional) for bar work and pipe machining
- Maximum turning diameter: Ø500 / 660 / 770 mm (optional)
- Swing over cross slide: Ø310 / 420 / 575 mm
- Distance between centers: 1000 / 1500 / 2000 / 3000 mm
- Spindle speed: 9–1600 rpm or 36–1600 rpm (24/12 steps)
- Threading capability: metric, inch, diametral, and module pitches
- Motor power: 7.5 kW; voltage: 380V–440V (3PH)
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø500 / 660 / 770 mm (Optional) |
| Swing over cross slide | Ø310 / 420 / 575 mm |
| Swing in gap diameter | Ø720 / 870 / 1050 mm |
| Valid length of gap | 230 mm |
| Distance between centers | 1000 / 1500 / 2000 / 3000 mm |
| Center height | 250 / 330 / 385 mm |
| Width of bed | 405 mm |
| Spindle nose | D1-8 |
| Spindle bore | Ø80 / 105 mm (Optional) |
| Taper of spindle bore | MT7 / Ø113 (1:20) |
| Spindle speed (24/12 steps) | 9–1600 / 36–1600 rpm |
| Top slide travel | 145 mm |
| Cross slide travel | 340 / 360 / 430 mm |
| Max. section of tools | 25 x 25 mm |
| Range of metric threads (22 kinds) | 1–14 mm |
| Range of inch threads (26 kinds) | 28–2 T.P.I |
| Threads diametral pitches (24 kinds) | 56–4 D.P |
| Threads module pitches (18 kinds) | 0.5–7 M.P |
| Tailstock quill diameter | Ø75 mm |
| Tailstock quill travel | 150 mm |
| Taper of tailstock quill | MT5 |
| Motor power | 7.5 kW |
| Coolant pump motor | 100 W |
| Voltage | 380V–440V (3PH) |

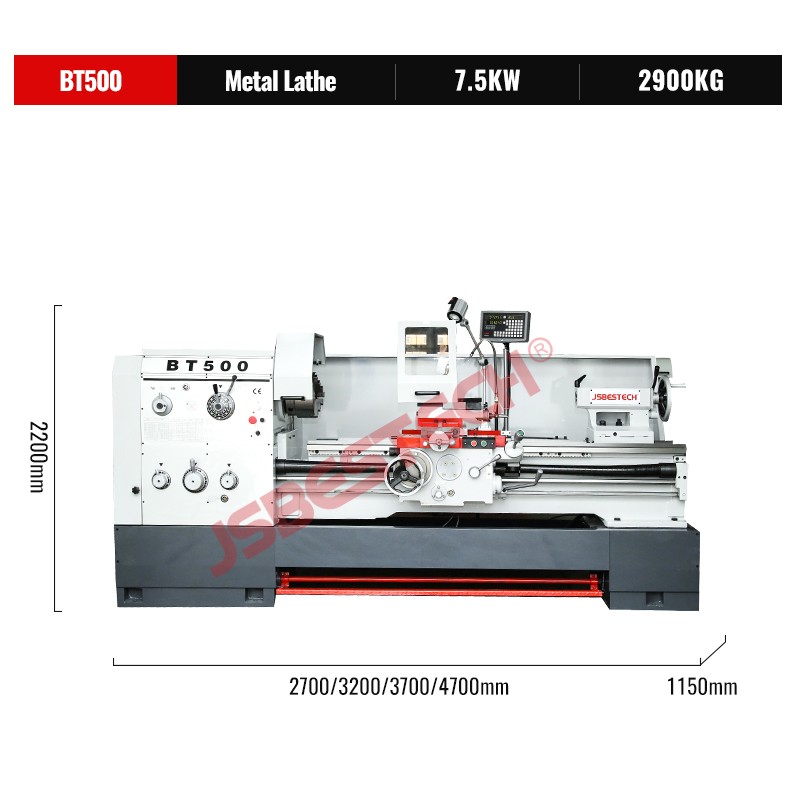

| Packing size | (2700 / 3200 / 3700 / 4700) x 1150 x 2200 mm |
Applications
The BT500 is suitable for general machining, repair shops, and production environments where large-diameter parts are common. The optional spindle bore of Ø105 mm allows feeding of longer bar stock, reducing setup time. The gap bed design permits turning of larger diameters when the gap piece is removed.
Options and Customization
Several parameters can be selected to match specific requirements: turning diameter, spindle bore, distance between centers, and center height. Please specify your needs when inquiring. Size, color, weight, and brand are also available as customizable properties.
For more information about the BT500 or other models, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT500 105mm Horizontal metal lathe machine with big spindle bore?
The BT500 is a horizontal metal lathe machine designed for heavy-duty turning operations, featuring a maximum turning diameter of Ø500/660/770mm (optional) and a spindle bore of Ø80/105mm (optional). It offers a distance between centers ranging from 1000mm to 3000mm and a spindle speed range of 9~1600/36~1600rpm (24/12 steps). Manufactured by Jiangsu Bestech Industrial Co., Ltd., this lathe is suitable for machining large-diameter workpieces and performing various threading operations.
Applications
- Turning large-diameter cylindrical metal parts
- Thread cutting with metric, inch, diametral, and module pitches
- Machining long shafts up to 3000mm between centers
- General metalworking in job shops and manufacturing facilities
- Facing and boring operations on medium to large workpieces
FAQ
What is the maximum turning diameter of the BT500 lathe?
The BT500 offers a maximum turning diameter of Ø500mm, Ø660mm, or Ø770mm, depending on the optional configuration.
What is the spindle bore size of this lathe?
The spindle bore is available in two optional sizes: Ø80mm or Ø105mm.
What is the distance between centers for the BT500?
The distance between centers can be 1000mm, 1500mm, 2000mm, or 3000mm, depending on the model.
What types of threads can the BT500 cut?
The BT500 can cut metric threads (22 kinds, 1~14mm), inch threads (26 kinds, 28~2 T.P.I), diametral pitches (24 kinds, 56~4 D.P), and module pitches (18 kinds, 0.5~7 M.P).
What is the spindle speed range of the BT500?
The spindle speed range is 9~1600rpm or 36~1600rpm, with 24 or 12 steps, depending on the configuration.
