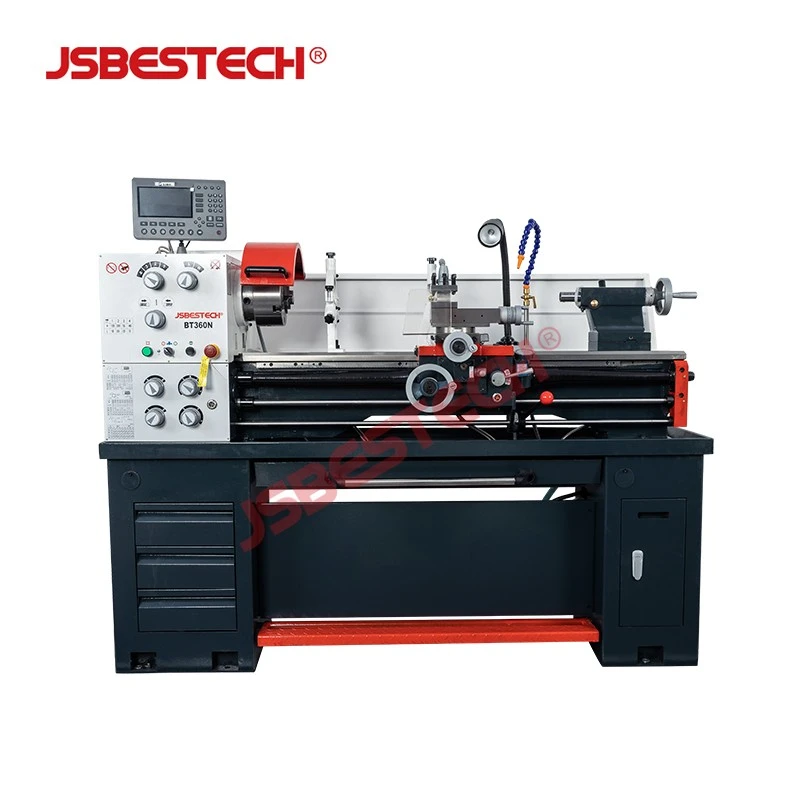

BT360N Manual Lathe Machine
The BT360N is a high-quality 360mm manual lathe designed for precision turning operations. With a maximum turning diameter of Ø360mm and a distance between centers of 1000mm, it handles a wide range of workpieces. Its robust construction and reliable performance make it suitable for workshops, maintenance facilities, and small-scale production.

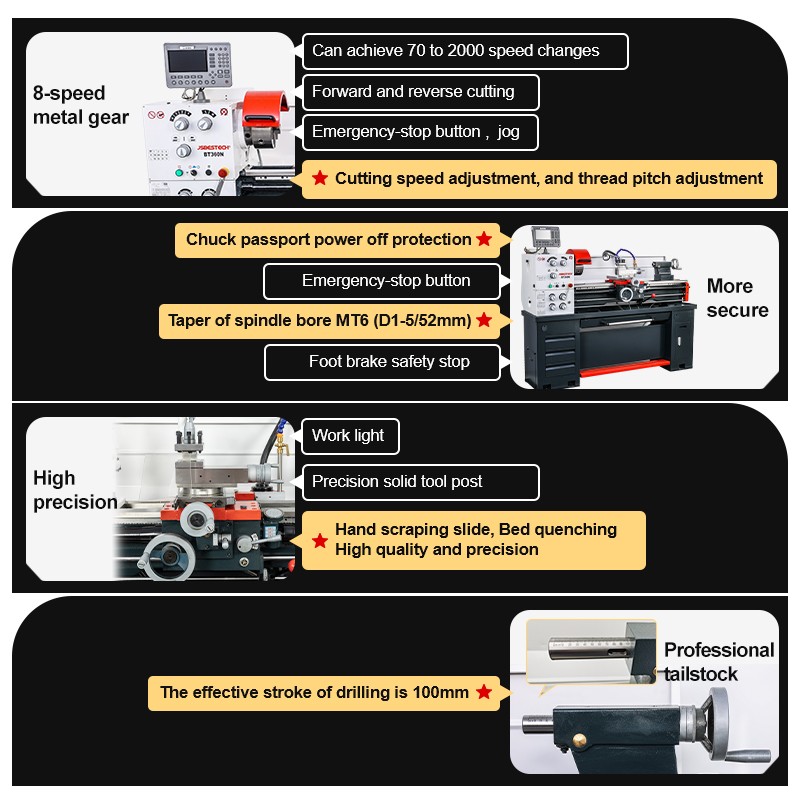

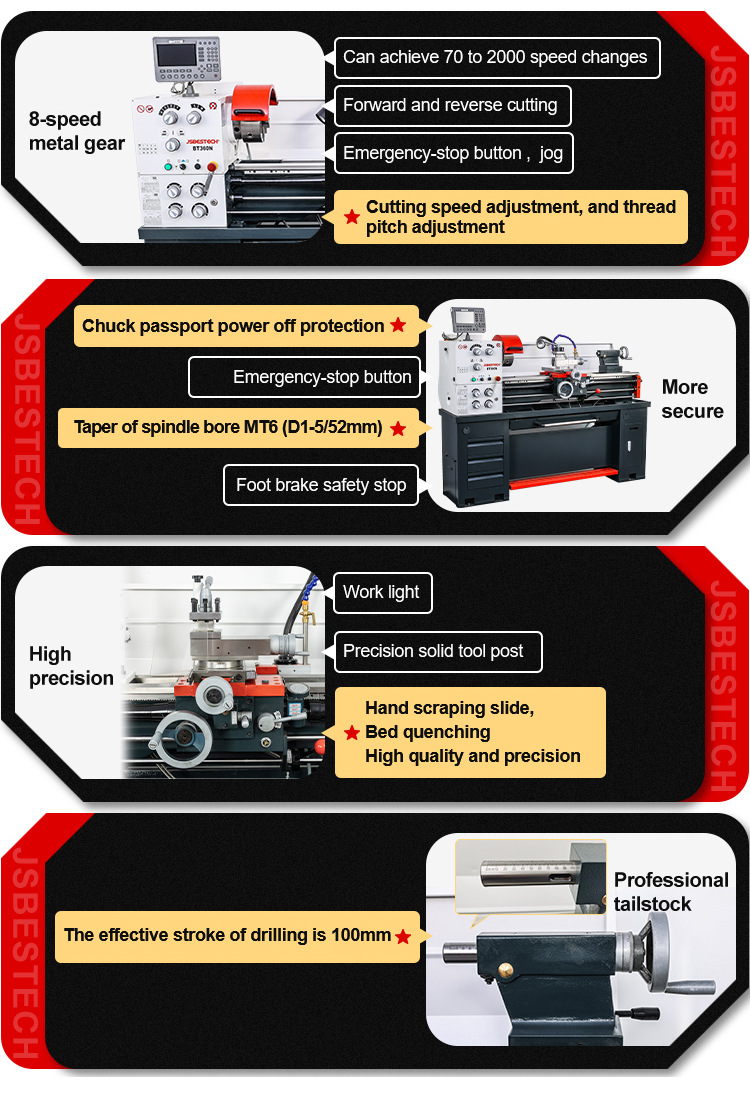

Key Features
- Maximum turning diameter: Ø360mm
- Swing over cross slide: Ø223mm
- Distance between centers: 1000mm
- Center height: 179mm
- Spindle bore: Ø52mm with MT6 taper
- 8 spindle speeds ranging from 70 to 2000 rpm
- Metric thread range: 0.4–7mm (26 kinds)
- Inch thread range: 4–56 T.P.I (34 kinds)
- Motor power: 1.5kW
Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø360mm |
| Swing over cross slide | Ø223mm |
| Distance between centers | 1000mm |
| Center height | 179mm |
| Width of bed | 187mm |
| Spindle nose | D1-5 |
| Spindle bore | Ø52mm |
| Taper of spindle bore | MT6 |
| Spindle speed (8 steps) | 70~2000rpm |
| Top slide travel | 95mm |
| Cross slide travel | 160mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (26 kinds) | 0.4~7mm |
| Range of inch threads (34 kinds) | 4~56T.P.I |
| Lead screw diameter | Ø22mm |
| Lead screw thread | 3mm or 8T.P.I |
| Tailstock quill diameter | Ø32mm |
| Tailstock quill travel | 100mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5kW |
| Voltage/AC | 380V~440V (3PH) |

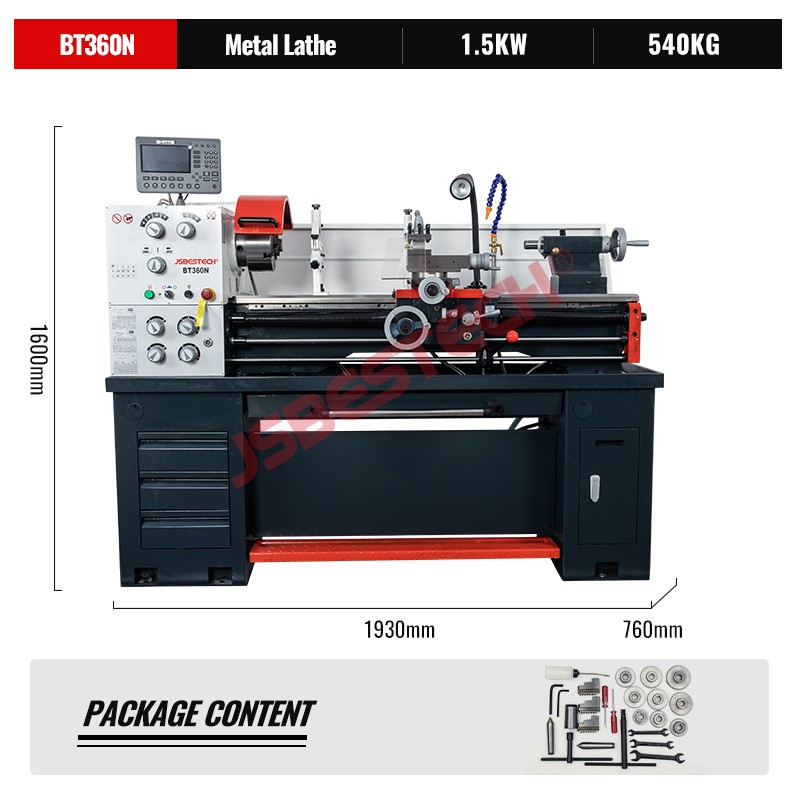

| Packing size | 1930x760x1600mm |
Manufactured by Jiangsu Bestech Industrial Co., Ltd., the BT360N combines durable construction with user-friendly operation. Its 1.5kW motor provides ample power for various turning tasks, while the 8-step spindle speed range allows for flexibility across different materials. The lathe includes a comprehensive threading capability, supporting both metric and inch threads.
For more information or to discuss your requirements, please contact us.
