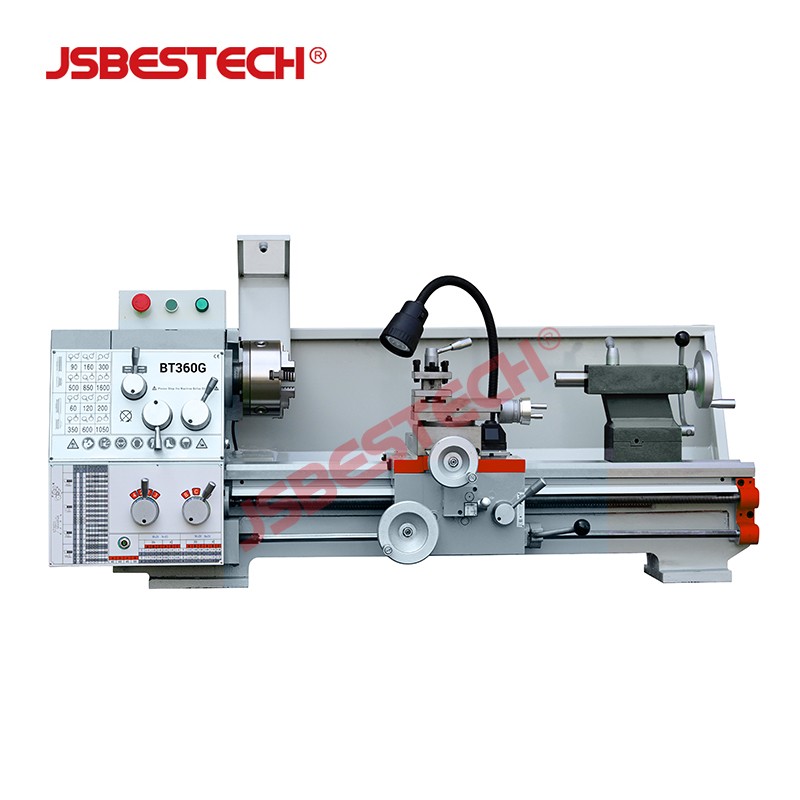

BT360G Bench 12 Step Belt Speed Lathe Machine
The BT360G is a bench-type lathe designed for workshops that need a compact machine with a practical turning capacity. It combines a 12-step belt speed drive with a rigid bed and a wide range of thread cutting options, making it suitable for general turning, facing, drilling and threading tasks.

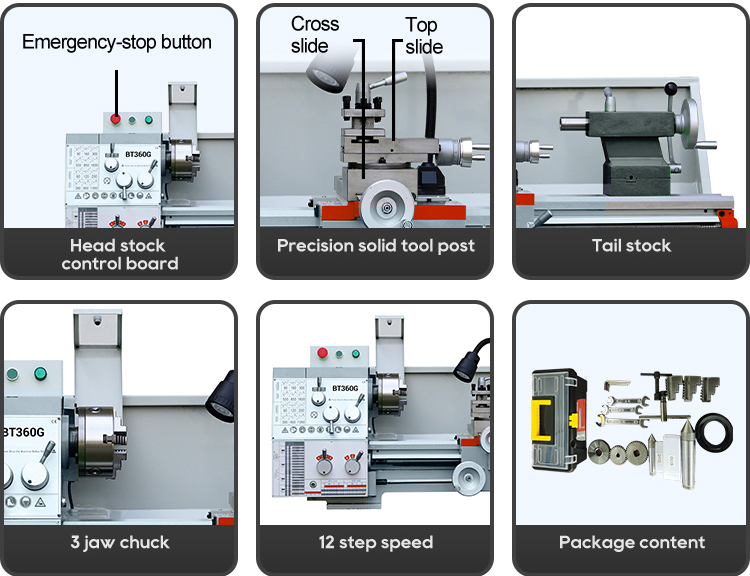

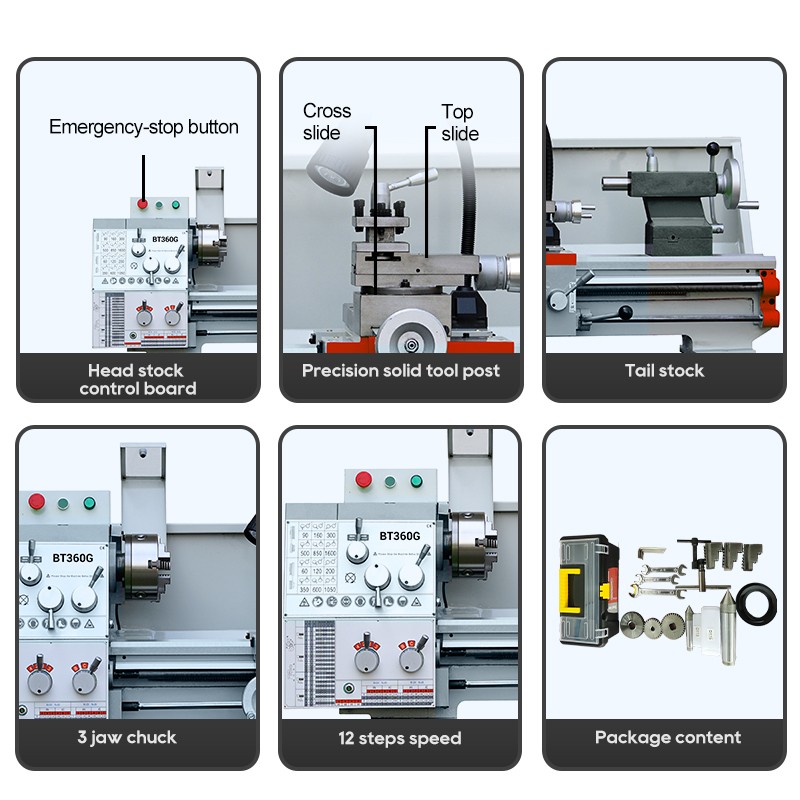

Key Features
- Max. turning diameter Ø360mm and swing over cross slide Ø230mm
- Distance between centers 750mm with 180mm center height
- 12-step belt speed spindle, 60~1600rpm, with variable speed optional
- Spindle bore MT5 with Ø38mm taper of spindle bore
- Metric threads: 22 kinds, 0.20~7mm; inch threads: 45 kinds, 4~48 T.P.I
- Double motor, 1.5kW, 380V~440V (3PH)
Specifications
| Turning diameter (Max.) | Ø360mm |
|---|---|
| Swing over cross slide | Ø230mm |
| Distance between centers | 750mm |
| Center height | 180mm |
| Width of bed | 210 |
| Spindle bore | MT5 |
| Taper of spindle bore | Ø38mm |
| Spindle speed (12 steps) | 60~1600rpm/variable (Optional) |
| Top slide travel | 100mm |
| Cross slide travel | 160mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (22 kinds) | 0.20~7mm |
| Range of inch threads (45 kinds) | 4~48T.P.I |
| Pitches of feed lead screws | Ø24mm |
| Tailstock quill diameter | Ø35mm |
| Tailstock quill travel | 90mm |
| Taper of tailstock quill | MT3 |
| Motor power (double motor) | 1.5kW |
| Voltage | 380V~440V (3PH) |

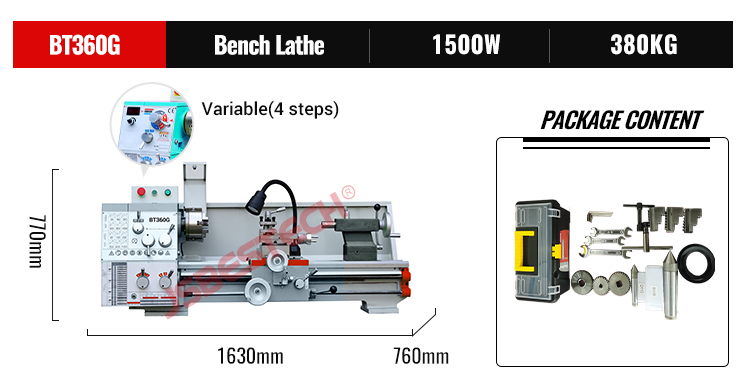

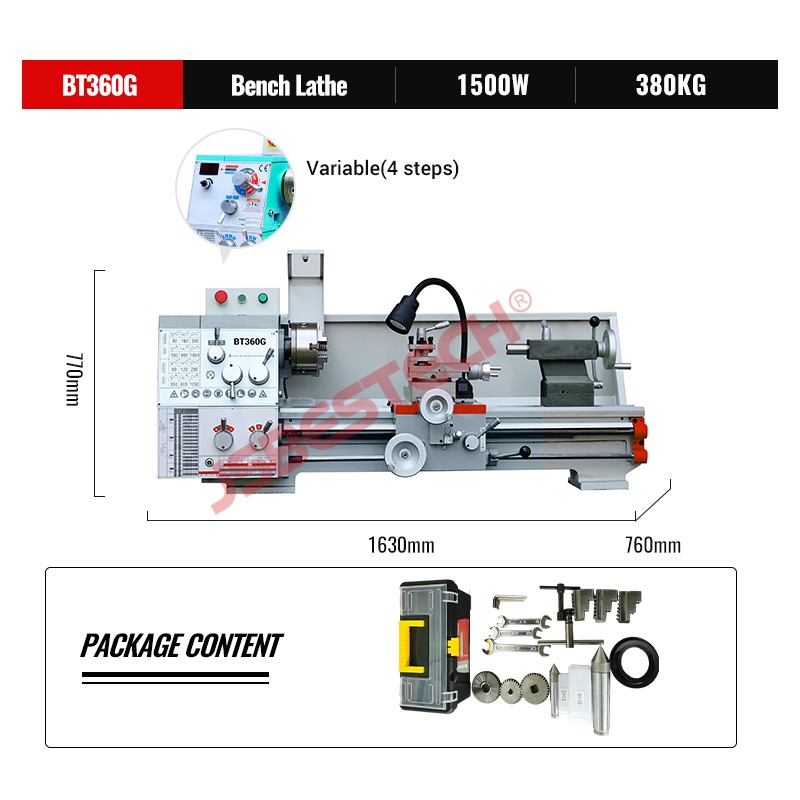

| Packing size | 1630x760x770mm |
Applications
The BT360G is suitable for turning shafts, sleeves, bushings and other cylindrical parts, as well as facing, drilling and thread cutting. Its bench design helps save floor space in small workshops, maintenance shops and training environments.
Manufacturer
Jiangsu Bestech Industrial Co., Ltd. supplies the BT360G and other lathe models. For more information about this machine, please contact the manufacturer directly.
What is BT360G Bench 12 Step Belt Speed Lathe Machine?
The BT360G Bench 12 Step Belt Speed Lathe Machine is a bench-mounted metalworking lathe designed for turning, facing, threading, and drilling operations. It offers a maximum turning diameter of Ø360mm, a swing over cross slide of Ø230mm, and a distance between centers of 750mm. The spindle features a Ø38mm bore with MT5 taper and provides 12 belt-driven speed steps from 60 to 1600 rpm, with variable speed available as an option. It supports both metric and inch threading, with ranges of 0.20–7mm and 4–48 T.P.I respectively.
Applications
- Turning and finishing cylindrical metal workpieces
- Thread cutting in metric and inch systems
- Facing and boring operations on small to medium parts
- Drilling and reaming using the tailstock
- Suitable for workshop, maintenance, and educational use
FAQ
What is the maximum turning diameter of the BT360G lathe?
The maximum turning diameter is Ø360mm.
What is the spindle speed range of this lathe?
The spindle speed range is 60 to 1600 rpm in 12 belt-driven steps, with variable speed available as an option.
What threading capabilities does the BT360G offer?
It can cut 22 kinds of metric threads from 0.20 to 7mm and 45 kinds of inch threads from 4 to 48 T.P.I.
What is the distance between centers?
The distance between centers is 750mm.
What is the spindle bore and taper?
The spindle bore is Ø38mm and the spindle taper is MT5.
