Description

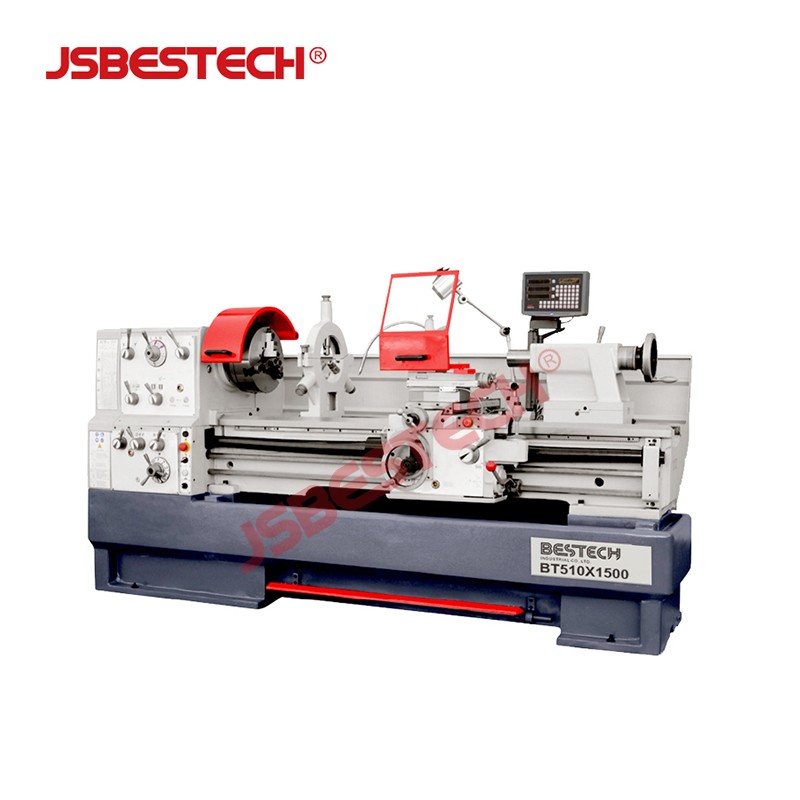

Lathe Machine BT510:
Apron box construction design patent with rapid movement
Automatic lubrication system
Apron box construction design patent with rapid movement
Automatic lubrication system
105mm spindle bore
|
Model |
BT510 |
|
Swing over bed |
510mm(20'') |
|
Swing over cross slide |
305mm(12'') |
|
Swing in gap diameter |
785mm(30-7/8'') |
|
Distance between centers |
1000mm/1500mm/2000mm/3000mm |
|
Valid length of gap |
170mm(6-11/16'') |
|
Width of bed |
350mm(13-13/16'') |
|
Spindle nose |
D1-8 |
|
Spindle bore |
105mm(4-1/8'') |
|
Net weight |
2070kg/2160kg/2435kg/2805kg |
|
Gross weight |
2460kg/2550kg/2840kg/3270kg |
|

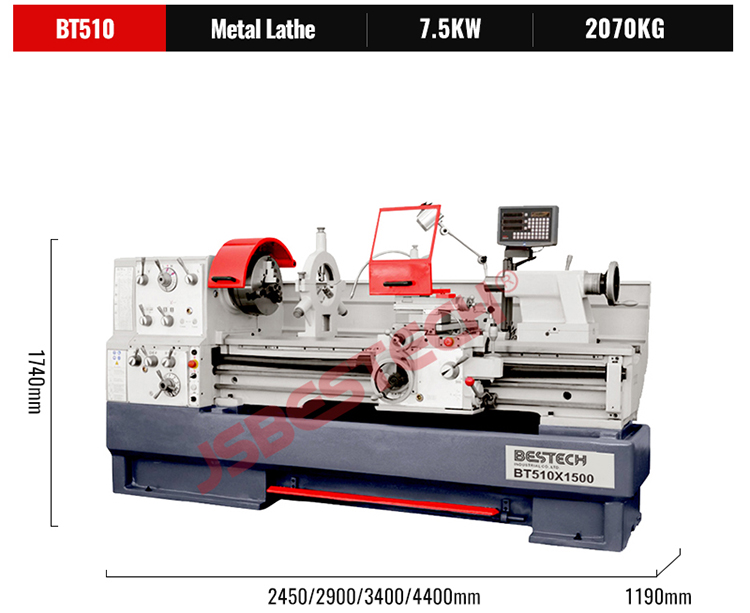

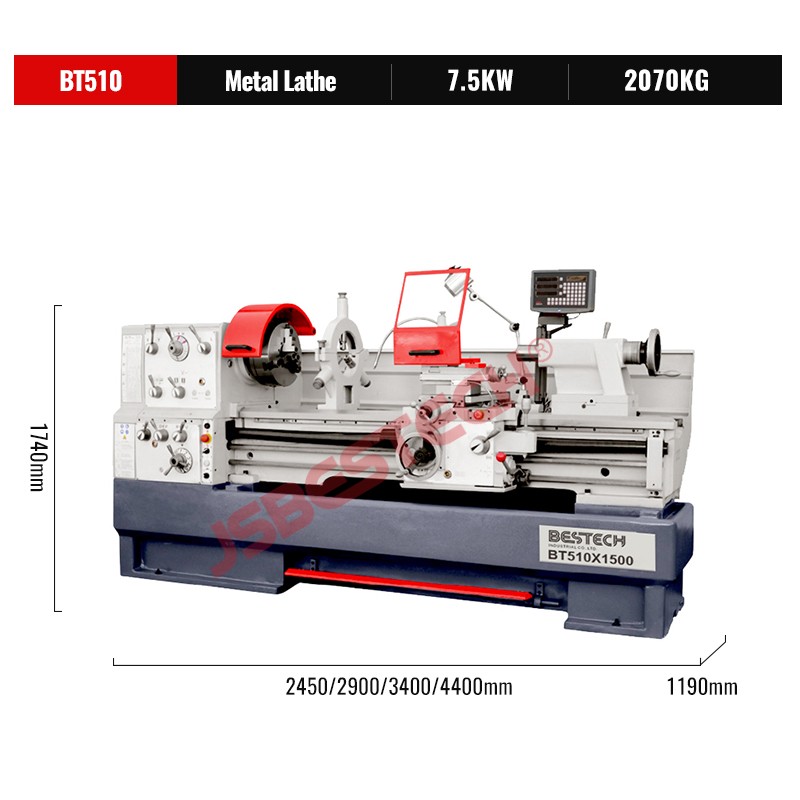

Packing size |
2450/2900/3400/4400x1190x1740mm |
|
Standard Accessories |
Optional Accessories |
|
1.Three- jaw chuck 2.For-jaw chuck 3.Centers 4.Splash guard 5.Steady rest 6.Follow rest 7.Face plate 9.8.Coolant system 10.Foot brake 11.Toolbox&tool 1 set |
1.Driving plate 2.Living center 3.Taper turning attachment 4.Drill chuck 5.Stopper and localizer 6.Quick change tool post 7.Digital readout(2 axis/3 axis) 8.Chuck cover 9.Leadscrew cover 10.Tool post cover |
