Ultra-fine Finish SGA2050AH 120kg Max. Loading Capacity of Table Surface Grinder for Mold Polishing

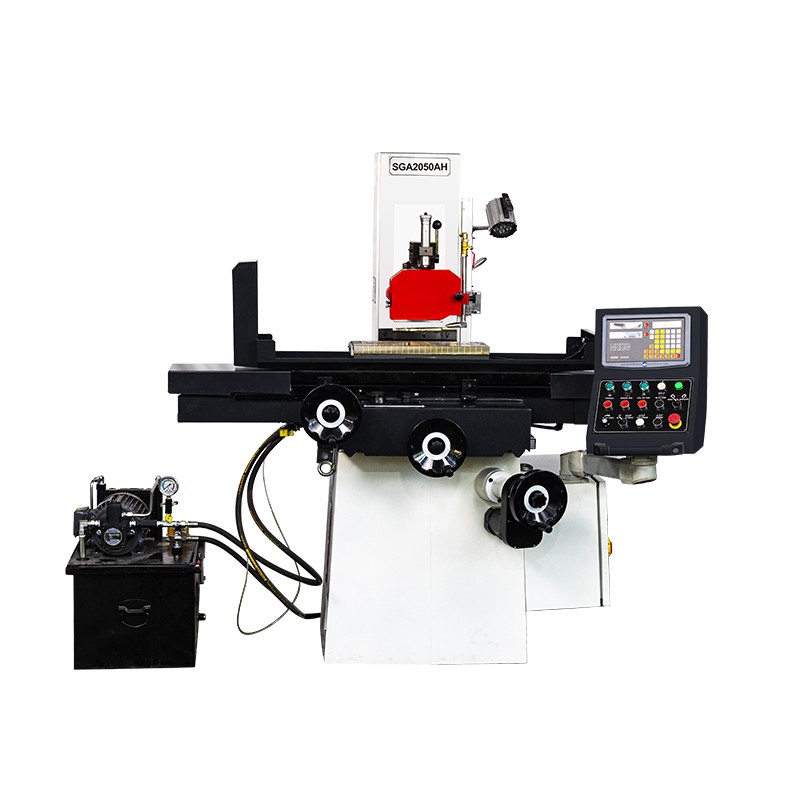

Ultra-fine Finish SGA2050AH Table Surface Grinder for Mold Polishing

The SGA2050AH is a table surface grinder engineered for ultra-fine finishing and mold polishing. With a maximum table load of 120 kg, it supports stable, precise grinding of molds, dies, and other components that demand a smooth surface finish.

Key Specifications

• Table size (W×L): 254 × 508 mm
• Max. longitudinal travel: 560 mm
• Cross travel: 275 mm
• Max. distance from spindle center to table: 450 mm
• Max. loading capacity of table surface: 120 kg

Applications

This surface grinder is suited for mold polishing and fine finishing tasks in tool rooms, mold shops, and production environments. The generous longitudinal and cross travel allows handling of medium-sized workpieces, while the 450 mm spindle-to-table distance provides clearance for various setups.

Features

• Ultra-fine finish capability for mold polishing
• 120 kg maximum table loading capacity
• Table dimensions: 254 × 508 mm
• Longitudinal travel up to 560 mm
• Cross travel up to 275 mm
• Spindle center to table distance: 450 mm

Why Choose the SGA2050AH

When surface quality and dimensional accuracy are critical, the SGA2050AH delivers consistent results. Its robust construction and precise movement controls make it a practical choice for mold polishing and general surface grinding. The machine is designed to handle daily use in industrial settings.

Additional Information

For more details on specifications, options, and availability, please contact Jiangsu Bestech Industrial Co., Ltd. Our team can assist with your specific requirements.
