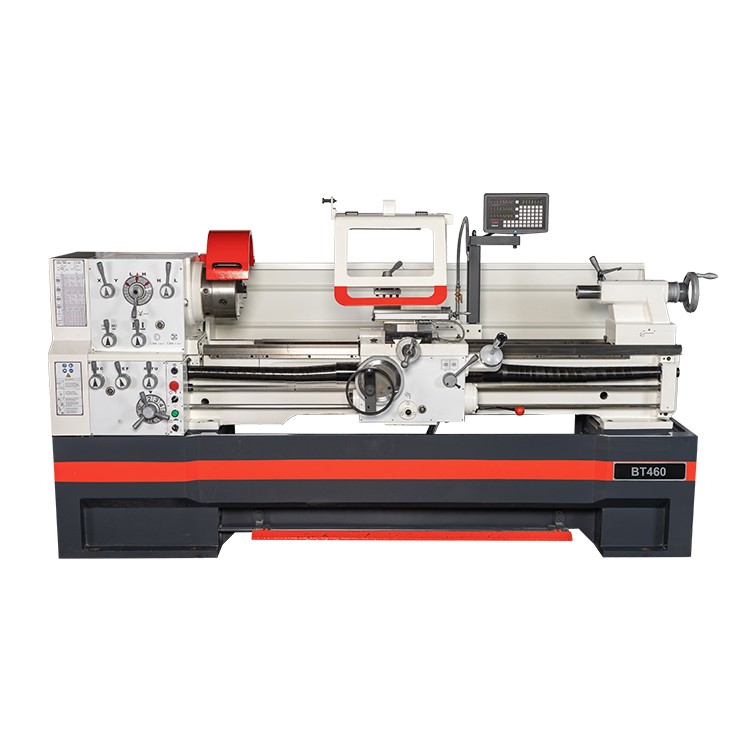

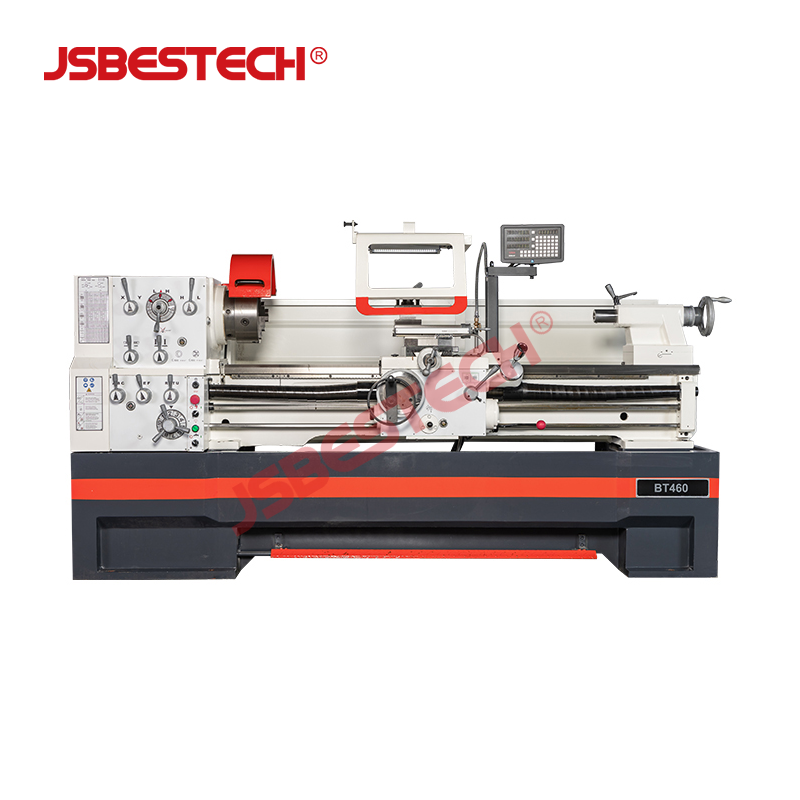

5.5KW MT7 BT460 Manual Lathe Machine for Metal Processing
The 5.5KW MT7 BT460 manual lathe is a top-selling model engineered for precision metal processing. Built by Jiangsu Bestech Industrial Co., Ltd., this lathe combines robust construction with user-friendly operation, making it a reliable choice for workshops, job shops, and manufacturing facilities.

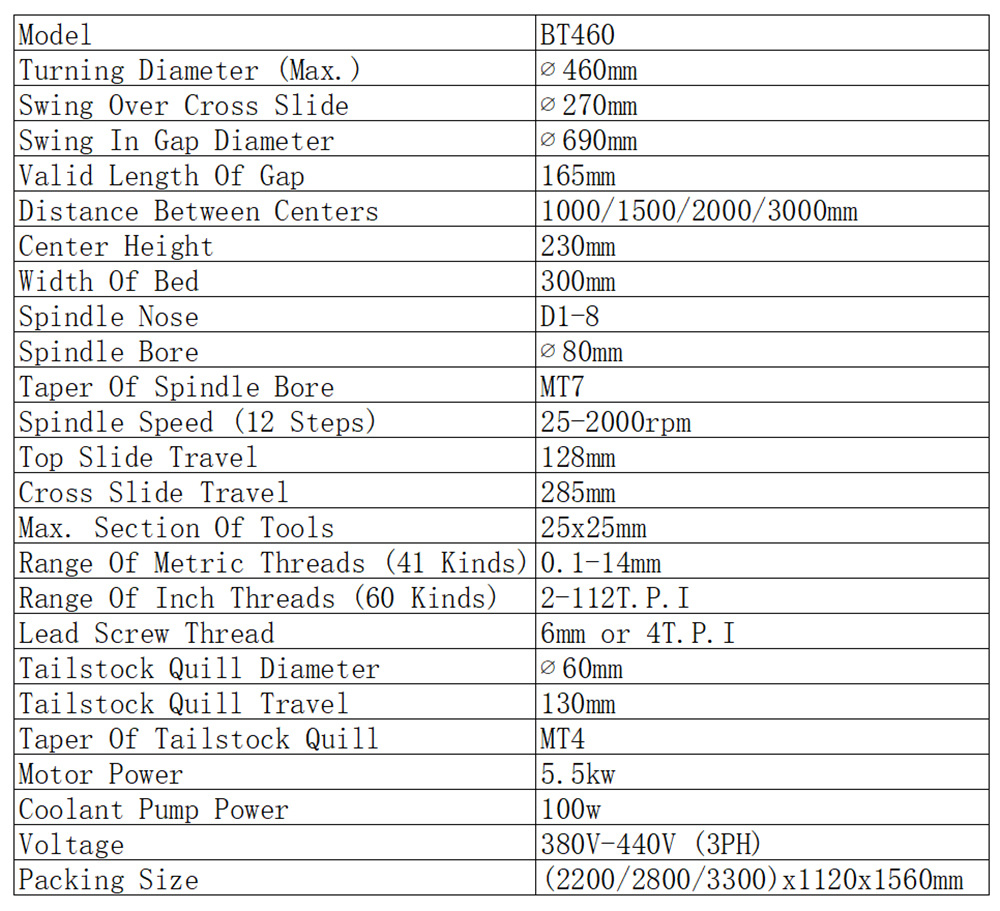

| Turning Diameter (Max.) |
Φ460mm |
| Swing Over Cross Slide |
Φ270mm |
| Swing In Gap Diameter |
Φ690mm |
|
Valid Length Of Gap |
165mm |
| Distance Between Centers |
1000/1500/2000/3000mm |
| Center Height |
230mm |
| Width Of Bed |
300mm |
| Spindle Nose |
D1-8 |
| Spindle Bore |
Φ80mm |
| Taper Of Spindle Bore |
MT7 |
| Spindle Speed (12 Steps) |
25~2000rpm |
| Top Slide Travel |
128mm |
| Cross Slide Travel |
285mm |
| Max. Section Of Tools |
25x25mm |
| Range Of Metric Threads (41 Kinds) |
0.1~14mm |
| Range Of Inch Threads (60 Kinds) |
2~112T.P.1 |
| Lead Screw Thread |
6mm or 4T.P.I |
| Tailstock Quill Diameter |
Φ60mm |
| Tailstock Quill Travel |
130mm |
|
Taper Of Tailstock Quill |
MT4 |
|
Motor Power |
5.5kw |
|
Coolant Pump Motor |
100w |
|
Voltage |
380V~440V(3PH) |
|

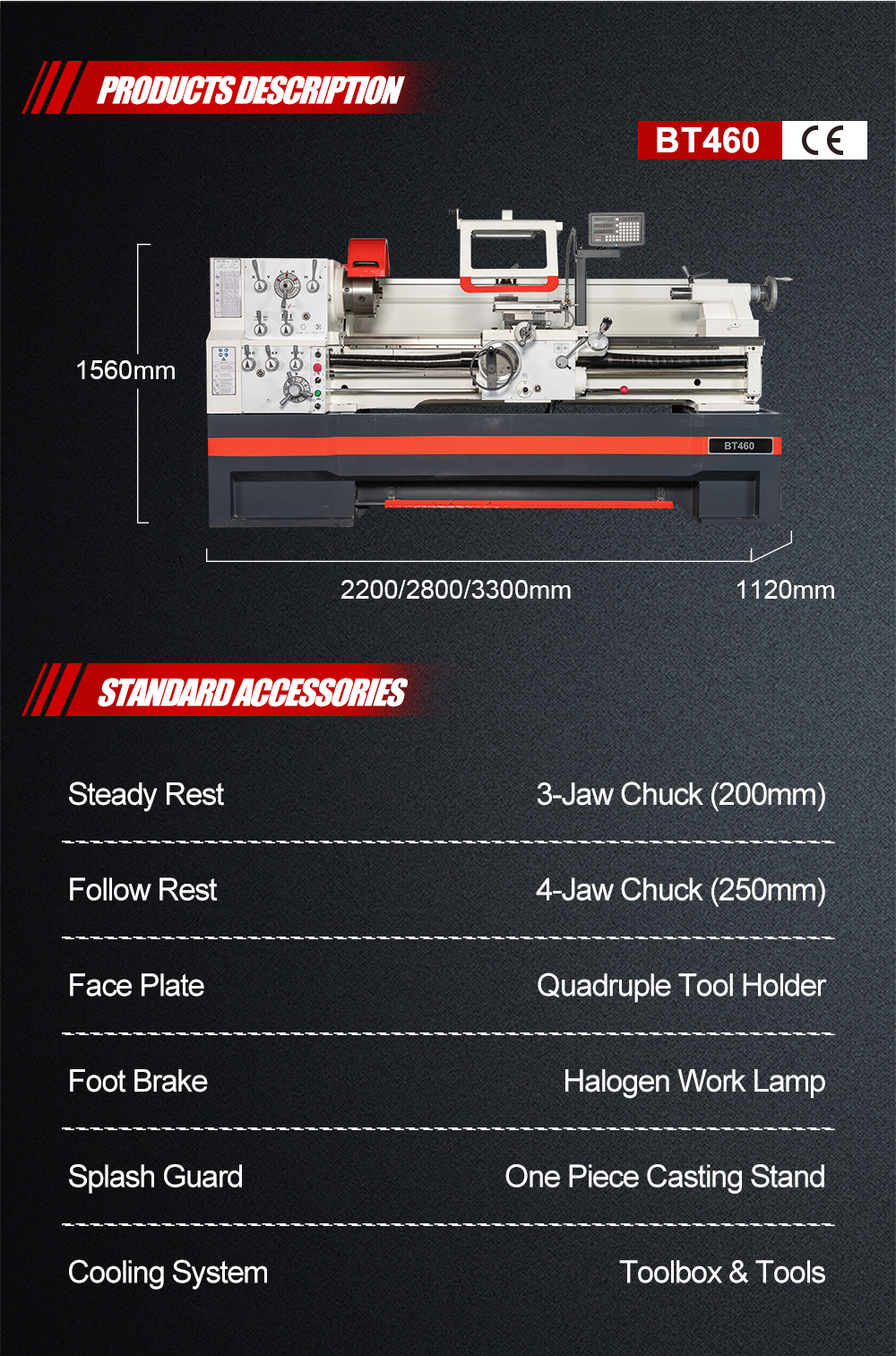

Packing Size |
(2200/2800/3300)x1120x1560mm |
- Swing over bed: 460 mm (18 in)
- Swing over cross slide: 270 mm (10-3/4 in)
- Swing in gap diameter: 690 mm (27-1/8 in)
- Length in gap: 165 mm
- Model: MT7 BT460
- Motor power: 5.5 KW
Applications
This manual lathe is ideal for turning, facing, threading, and boring a variety of metals. Its generous swing over bed and cross slide accommodates large-diameter workpieces, while the gap bed design allows for even larger diameters when the gap piece is removed. The 5.5 KW motor provides ample power for demanding cuts, ensuring efficient material removal and smooth finishes.

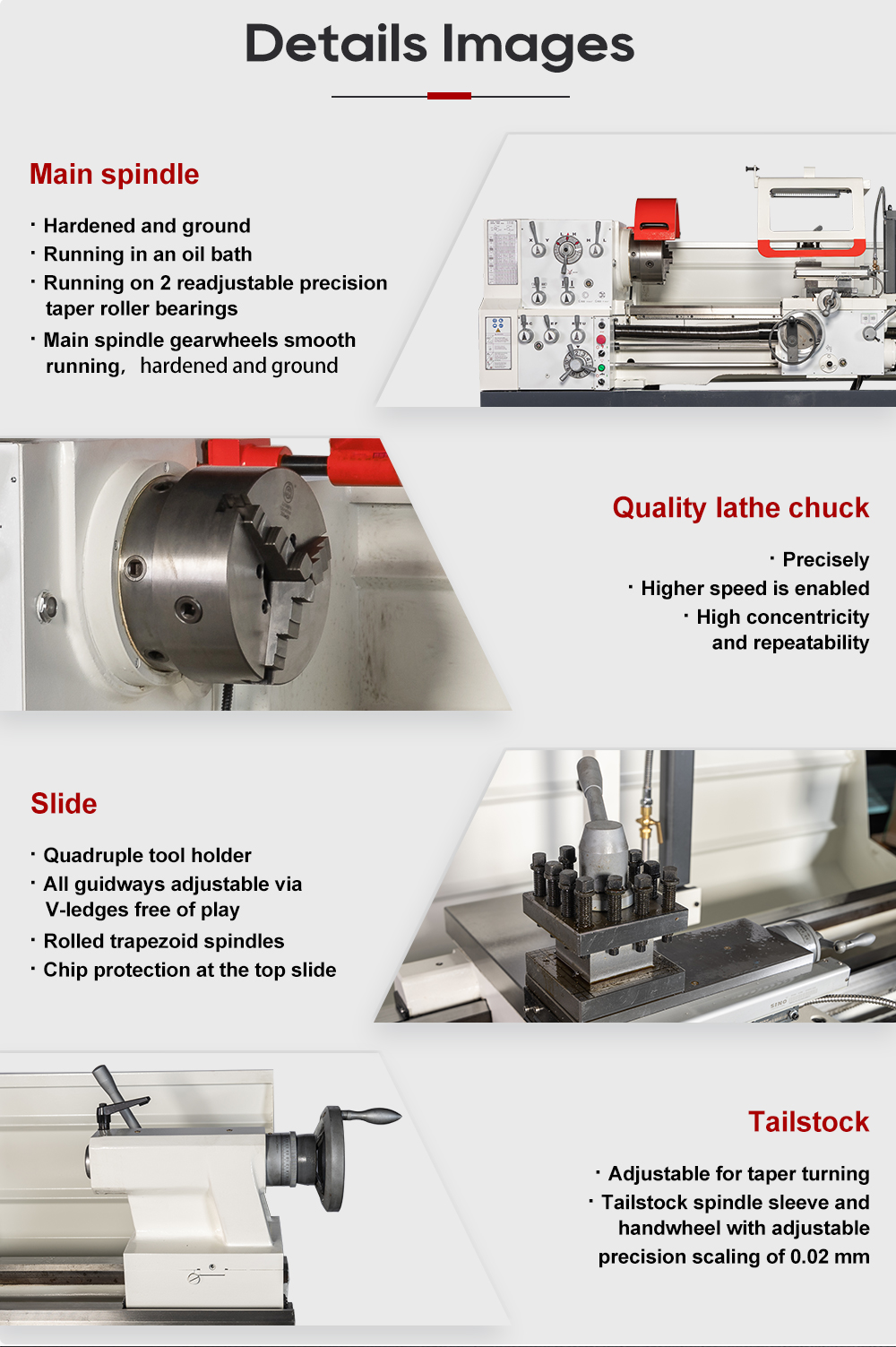

Features
- Heavy-duty cast iron bed for stability and vibration damping

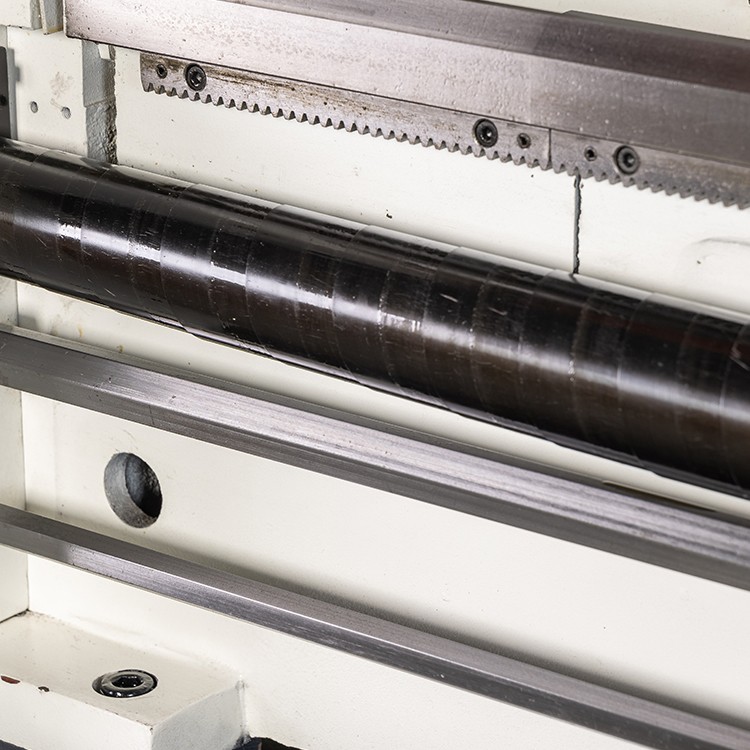

- Precision-ground guideways for accurate carriage movement
- MT7 spindle taper for secure tooling mounting
- Gap bed design for increased swing capacity
- Manual operation for full control over the machining process
Why Choose the BT460?
As a top-selling model, the BT460 offers a balance of capacity, power, and reliability. It is suitable for both small-scale production and maintenance tasks. The straightforward manual controls allow operators to adapt quickly to different jobs, while the sturdy construction ensures long-term durability.
For more information about the 5.5KW MT7 BT460 manual lathe, please contact Jiangsu Bestech Industrial Co., Ltd.
