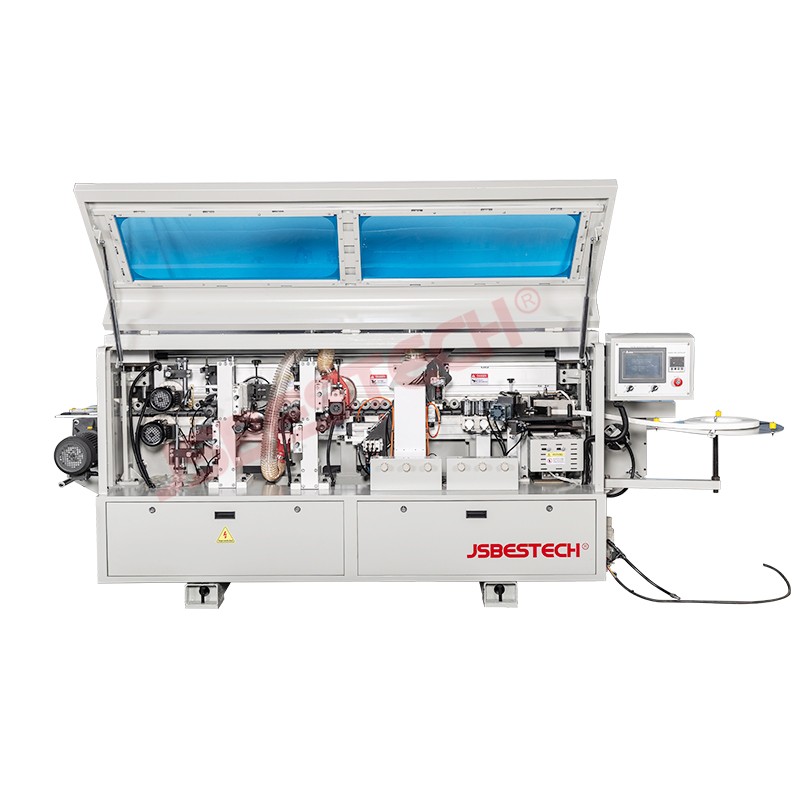

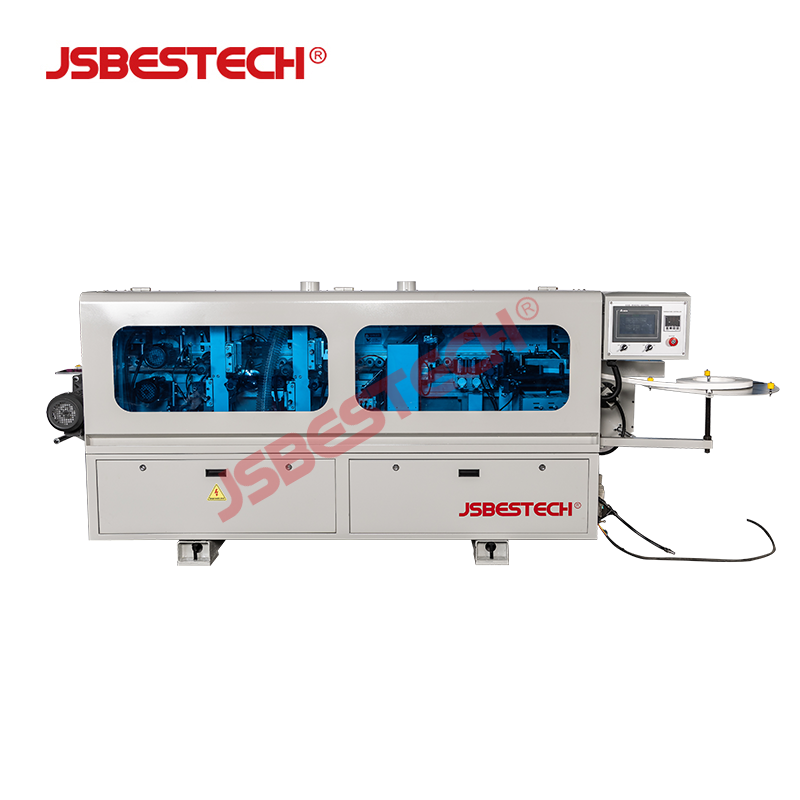

Stable Running BT-280 Edge Banding Machine for Panel Processing
The BT-280 is a reliable edge banding machine designed for panel processing. It handles panel thicknesses from 10 to 60 mm and edge band widths from 12 to 65 mm, making it suitable for a wide range of furniture and woodworking applications.
Key Specifications
- Model: BT-280
- Panel thickness: 10–60 mm
- Edge band width: 12–65 mm
- Edge band thickness: 0.4–3 mm
- Beam up and down: by hand
Features
- Stable running: The machine is engineered for consistent, vibration-free operation, ensuring clean and precise edge banding results.
- Wide thickness range: Accommodates panels from 10 mm to 60 mm, providing flexibility for various production needs.
- Edge band compatibility: Works with edge banding materials from 0.4 mm to 3 mm thick and 12 mm to 65 mm wide.

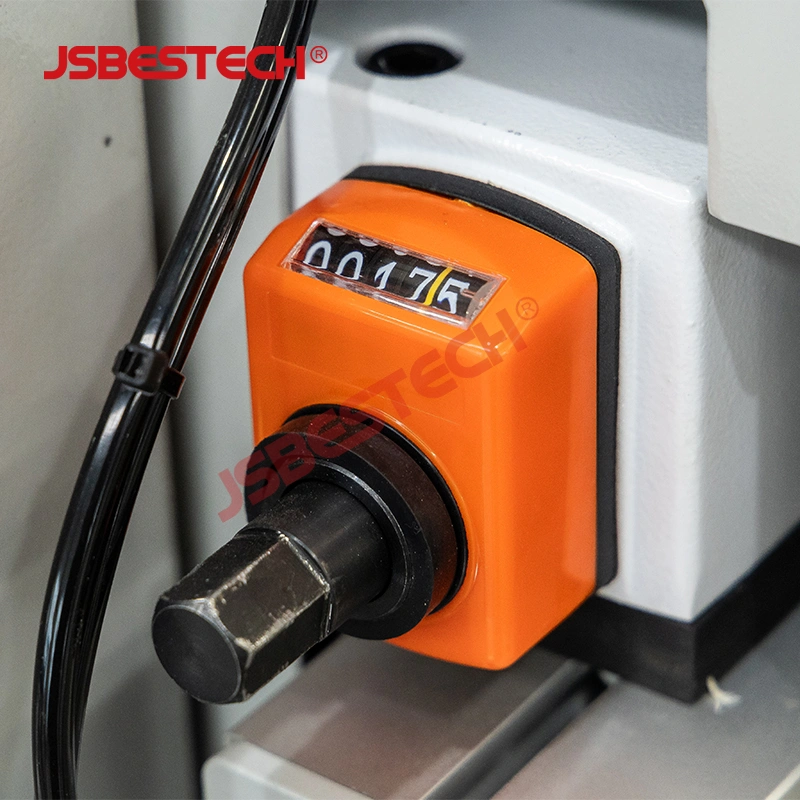

- Manual beam adjustment: The beam up and down movement is controlled by hand, offering simple and direct operation.
Applications
This edge banding machine is ideal for panel processing in furniture manufacturing, cabinet making, and other woodworking industries. It provides a dependable solution for applying edge banding to panels of varying thicknesses.
Product Images

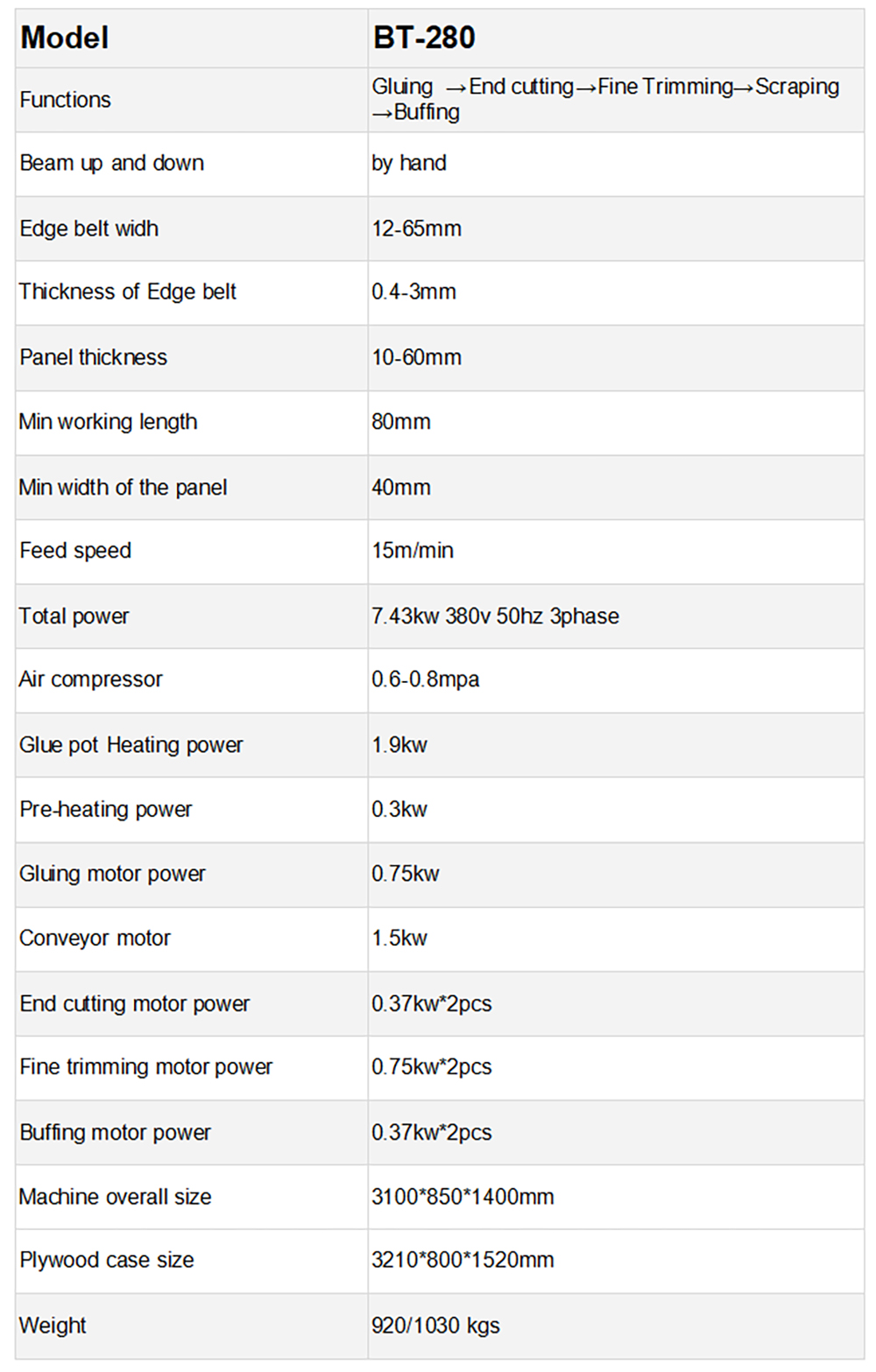

| Functions | Gluing - End cutting-Fine Trimming- Scraping->Buffing |
| Beam up and down | by hand |
| Edge belt widh | 12-65mm |
| Thickness of Edge belt | 0.4-3mm |
| Panel thickness | 10-60mm |
| Min working length | 80mm |
| Min width of the panel | 40mm |
|
Feed speed |
15m/min |
|
Total power |
7.43kw 380v 50hz 3phase |
|
Air compressor |
0.6-0.8mpa |
|
Glue pot Heating power |
1.9kw |
|
Pre-heating power |
0.3kw |
|
Gluing motor power |
0.75kw |
|
Conveyor motor |
1.5kw |
|
End cutting motor power |
0.37kw*2pcs |
|
Fine trimming motor power |
0.75kw*2pcs |
|
Buffing motor power |
0.37kw*2pcs |
|
Machine overall size |
3100*850*1400mm |
|
Plywood case size |
3210*800*1520mm |
|
Weight |
920/1030 kgs |
For more information about the BT-280 or other panel processing equipment, please contact Jiangsu Bestech Industrial Co., Ltd.
What is Stable Running BT-280 10-60mm Panel Thickness Edge Banding Machine for Panel Processing?
The Stable Running BT-280 is an edge banding machine designed for panel processing. It handles panel thicknesses from 10 to 60 mm and edge banding materials with widths from 12 to 65 mm and thicknesses from 0.4 to 3 mm. The beam up and down adjustment is performed manually. This machine is suitable for applying edge banding to various panels in woodworking and furniture production.
Applications
- Edge banding of particleboard, MDF, and plywood panels
- Furniture manufacturing for cabinets, tables, and shelves
- Production of custom kitchen and office furniture
- Woodworking workshops and industrial panel processing lines
- Edge finishing for doors and panel-based components
FAQ
What is the panel thickness range of the BT-280 edge banding machine?
The BT-280 can process panels with a thickness from 10 mm to 60 mm.
What edge banding materials can be used with this machine?
It accepts edge banding with a width of 12 to 65 mm and a thickness of 0.4 to 3 mm.
How is the beam adjusted on the BT-280?
The beam up and down adjustment is done manually.
What types of panels can be edge banded with the BT-280?
It is suitable for common panel materials such as particleboard, MDF, and plywood.
