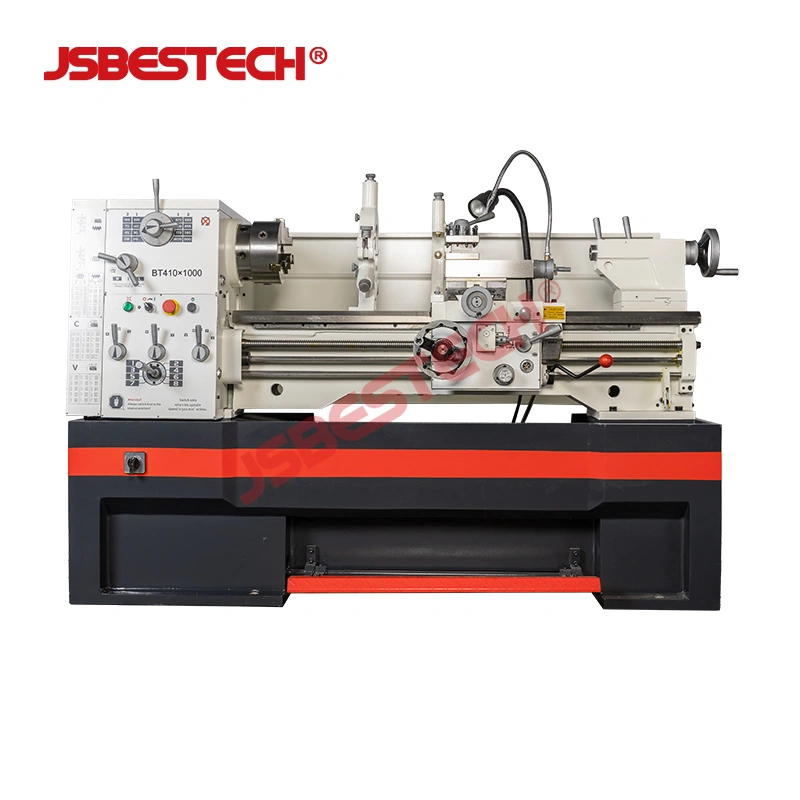

  • Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing - Image 1

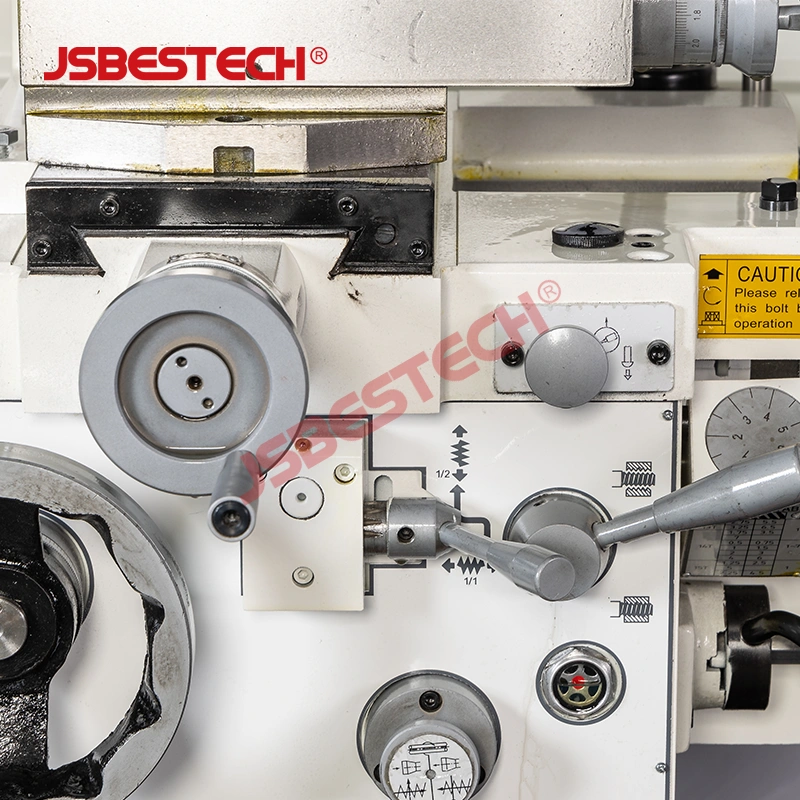

  • Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing - Image 2

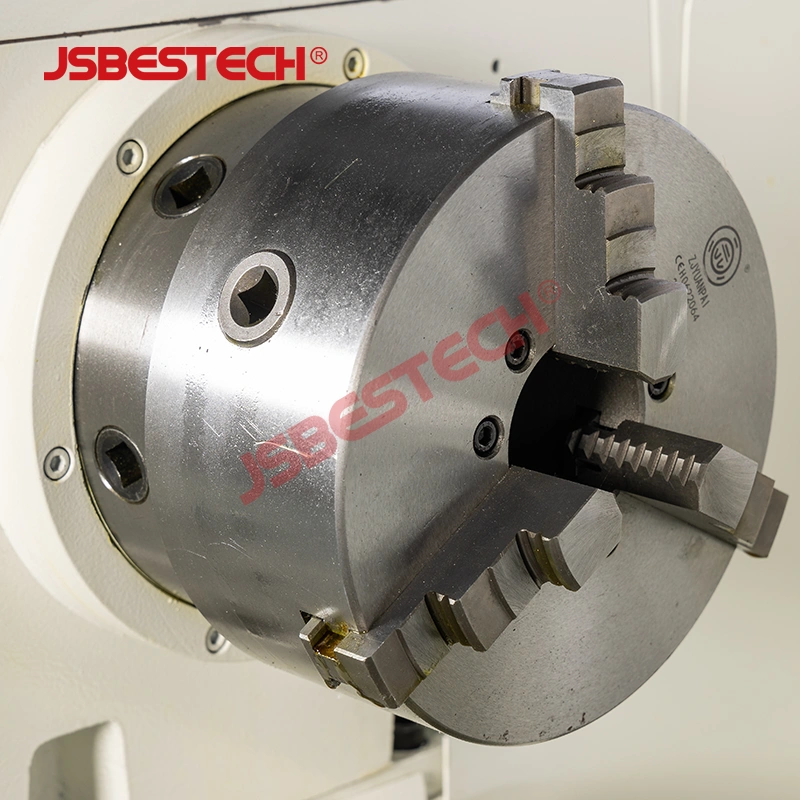

  • Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing - Image 3
Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing - Image 1Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing - Image 2Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing - Image 3

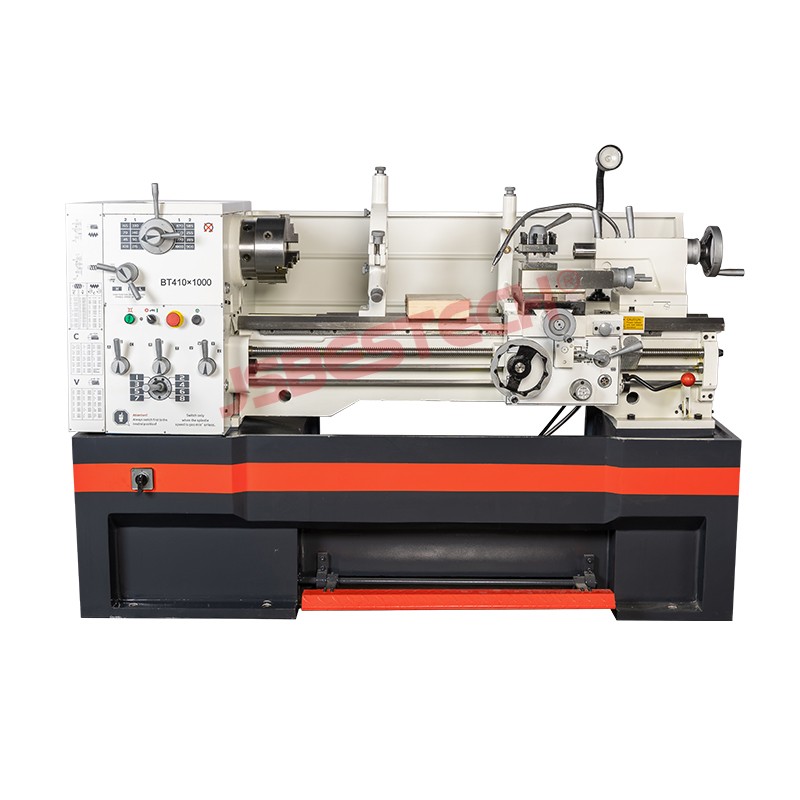

Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing

  • Max.swing over bed:410mm(16
  • Max.swing over cross slid:255mm(10
  • Swing in gap diameter:580(22
  • Height of center:205mm(8
    • torno lathe machine , Metal , turning lathe machine
    Inquiry Send Email


    Limited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve ProcessingLimited Discount High Precision Tailstock Manual Lathe Tool for Shaft Sleeve Processing

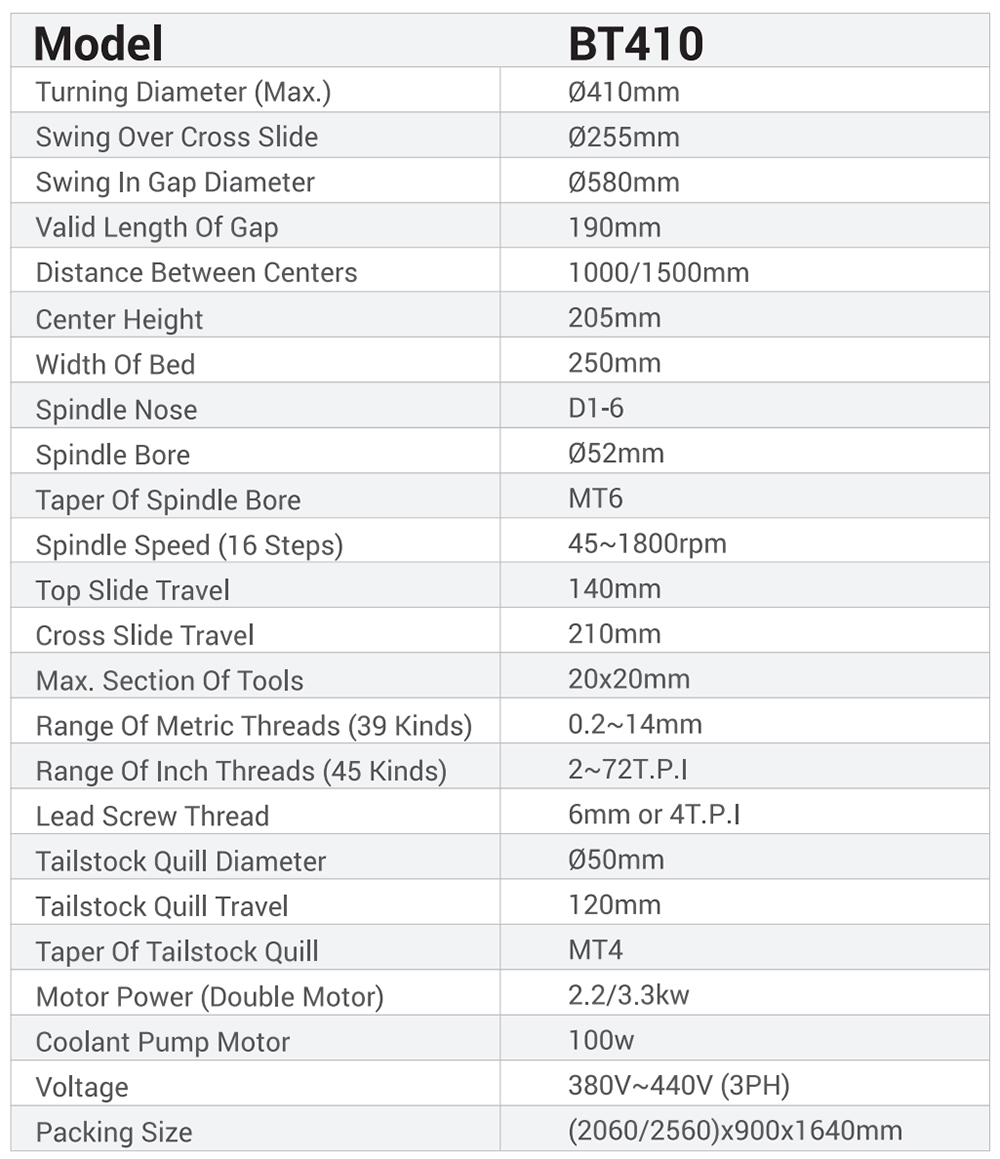

    Turning Diameter (Max.)
    		 Φ410mm
    Swing Over Cross Slide
    		 Φ255mm
    Swing In Gap Diameter
    		 Φ580mm
    Valid Length Of Gap
    		 190mm
    Distance Between Centers
    		 1000/1500mm
    Center Height
    		 205mm
    Width Of Bed
    		 250mm
    Spindle Nose
    		 D1-6
    Spindle Bore
    		 Φ52mm
    Taper Of Spindle Bore
    		 MT6
    Spindle Speed (16 Steps)
    		 45~1800rpm
    Top Slide Travel
    		 140mm
    Cross Slide Travel
    		 210mm
    Max. Section Of Tools
    		 20x20mm
    Range Of Metric Threads (39 Kinds)
    		 0.2~14mm
    Range Of Inch Threads (45 Kinds)
    		 2~72T.P.1
    Lead Screw Thread
    		 6mm or 4T.P.I
    Tailstock Quill Diameter
    		 Φ50mm
    Tailstock Quill Travel
    		 120mm
    Taper Of Tailstock Quill
    		 MT4
    Motor Power (Double Motor)
    		 2.2/3.3kw
    Coolant Pump Motor
    		 100w
    Voltage
    		 380V~440V(3PH)
    Packing Size
    		 (2060/2560)x900x1640mm
    Overview

    The Limited Discount High Precision Tailstock Manual Lathe Tool from Jiangsu Bestech Industrial Co., Ltd. is engineered for accurate shaft and sleeve processing. This manual lathe tool delivers reliable performance for workshops requiring precise turning operations.

    Key Specifications

    • Max. swing over bed: 410 mm (16 in)
    • Max. swing over cross slide: 255 mm (10 in)
    • Swing in gap diameter: 580 mm (22 in)
    • Height of center: 205 mm (8 in)

    Applications

    This lathe tool is ideal for processing shafts and sleeves, offering the rigidity and precision needed for consistent results. The tailstock design supports workpieces securely, making it suitable for a variety of manual turning tasks.

    Features

    • High precision construction for accurate machining
    • Manual operation for direct control
    • Tailstock assembly for stable workpiece support
    • Generous swing capacities accommodate larger diameters

    Why Choose This Lathe Tool?

    With its robust build and precise engineering, this manual lathe tool enhances productivity in shaft and sleeve processing. The limited discount offers an opportunity to acquire a high-quality tool at a reduced cost.

    For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
