Description

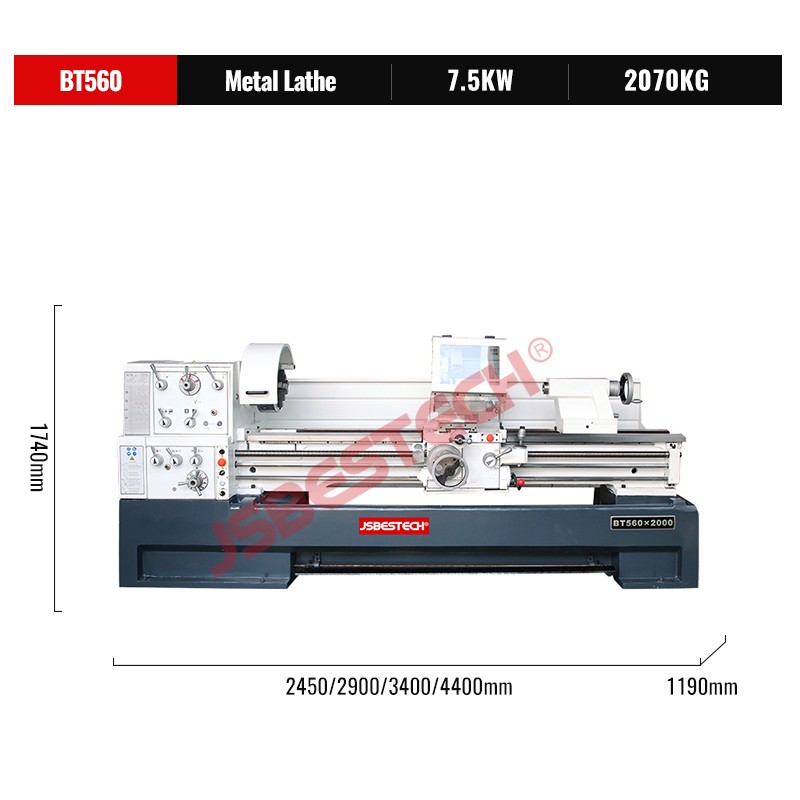

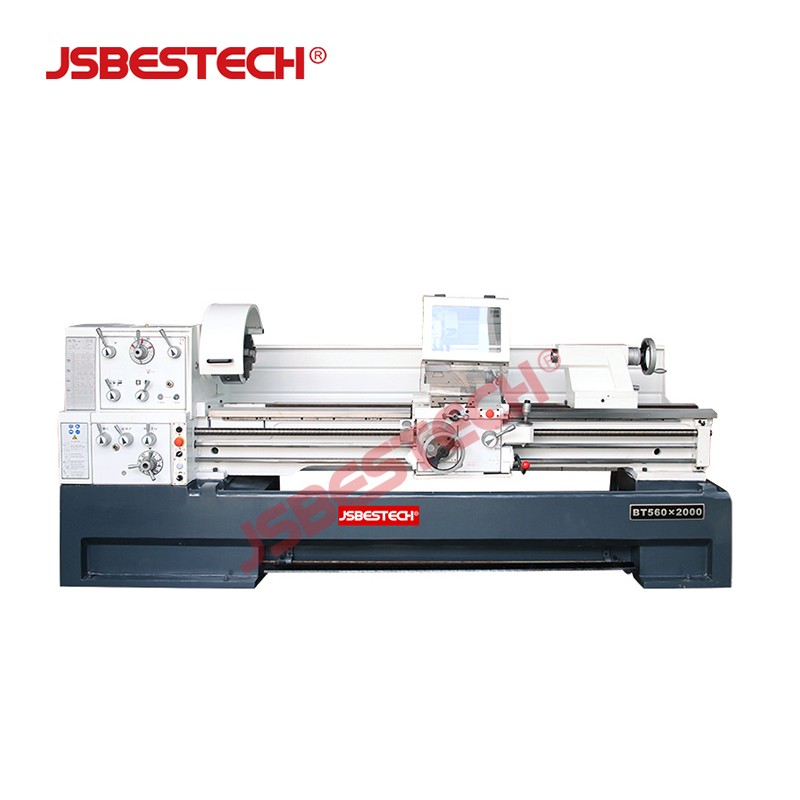

bench Lathe Machine used metal lathe machine specification of lathe machine BT560

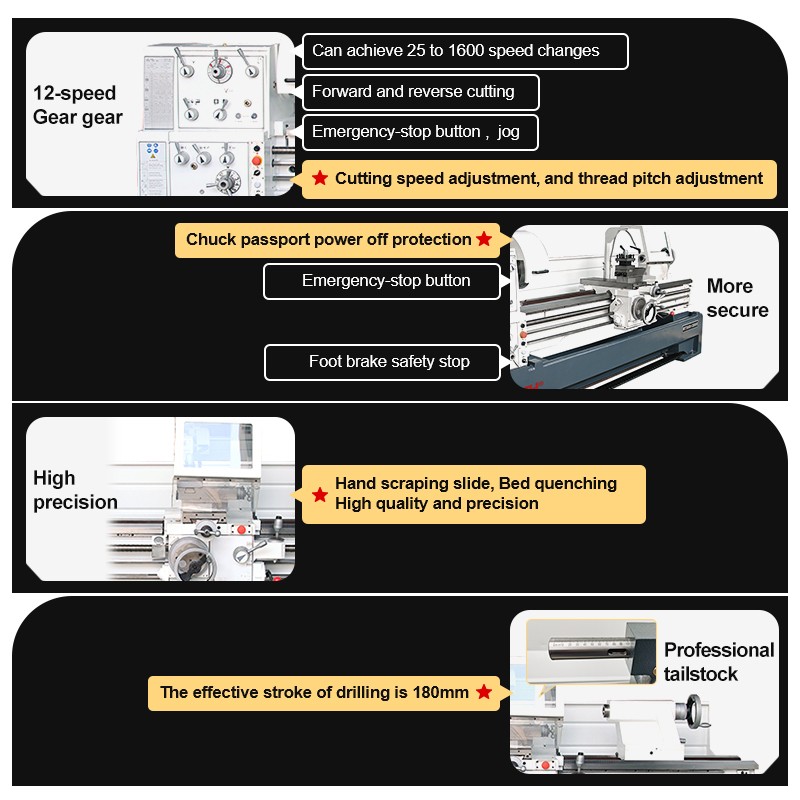

Feature:
1)Widely useful, like home hobby, Education, Factory use ect, operation easy.
2)Various speeds and thread cutting function are avaiable with gear box.
3)Induction-hardened and ground prismatic bed made from cast iron.
4)High precision and hardened spindle.
5)Safety magnetic and lock key European-standard switch.
Feature:
1)Widely useful, like home hobby, Education, Factory use ect, operation easy.
2)Various speeds and thread cutting function are avaiable with gear box.
3)Induction-hardened and ground prismatic bed made from cast iron.
4)High precision and hardened spindle.
5)Safety magnetic and lock key European-standard switch.
6)Cost-efficient,precise and stable value.
Model
BT560
Swing over bed
560mm(22'')
Swing over cross slide
355mm(14'')
Swing in gap diameter
785mm(30-7/8'')
Distance between centers
1000mm/1500mm/2000mm/3000mm
Valid length of gap
170mm(6-11/16'')
Width of bed
350mm(13-13/16'')
Spindle nose
D1-8
Net weight
2070kg/2160kg/2435kg/2805kg
Gross weight
2460kg/2550kg/2840kg/3270kg
Packing size
2450/2900/3400/4400x1190x1740mm
Standard Accessories
Optional Accessories
1. Dead centers
2. Foot brake
3. Steady rest
4. Follow rest
5. Face plate
6. Chuck cover
7. Coolant system
8. Splash guard
9. Toolbox&tool 1 set
10. 3- jaw chuck(315mm)
11. 4- jaw chuck(350mm)
1. Drill chuck
2. Driving plate
3. Living center
4. Tool post cover
5. Leadscrew cover
6. Stopper and localizer
7. Quick change tool post
8. 2-axis Digital readout
9. 3-axis Digital readout
10.Taper turning attachment
