Description
|

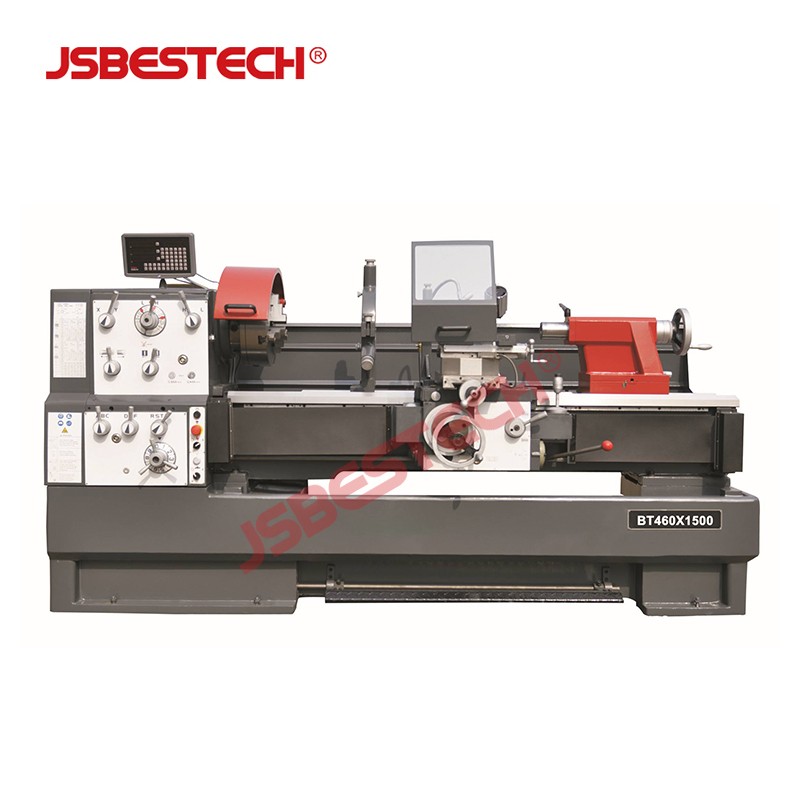

Model |
BT460 |
|
Swing over bed |
460mm(18’’) |
|
Swing over cross slide |
270mm(10-3/4’’) |
|
Swing in gap diameter |
690mm(27-1/8’’) |
|
Distance between centers |
1000mm(40'') / 1500mm(60'') / 2000mm(80'') |
|
Valid length of gap |
165mm(6-1/12'') |
|
Width of bed |
300mm(11-13/16'') |
|
Spindle nose |
D1-8 |
|
Spindle bore |
58mm(2-1/4'') or 80mm(3-1/8'') |
|
Taper of spindle bore |
MT7 |
|

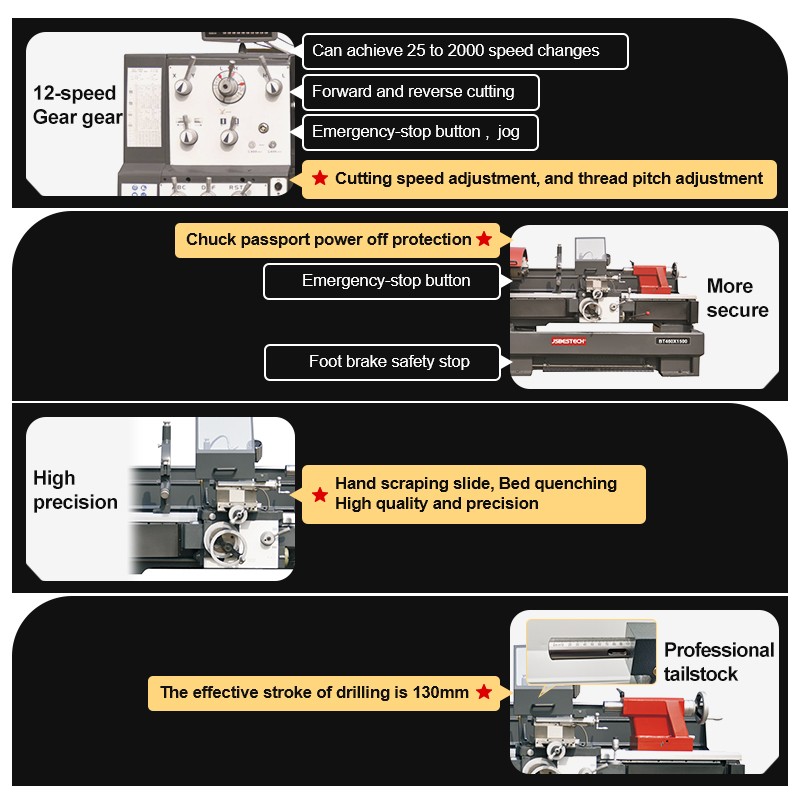

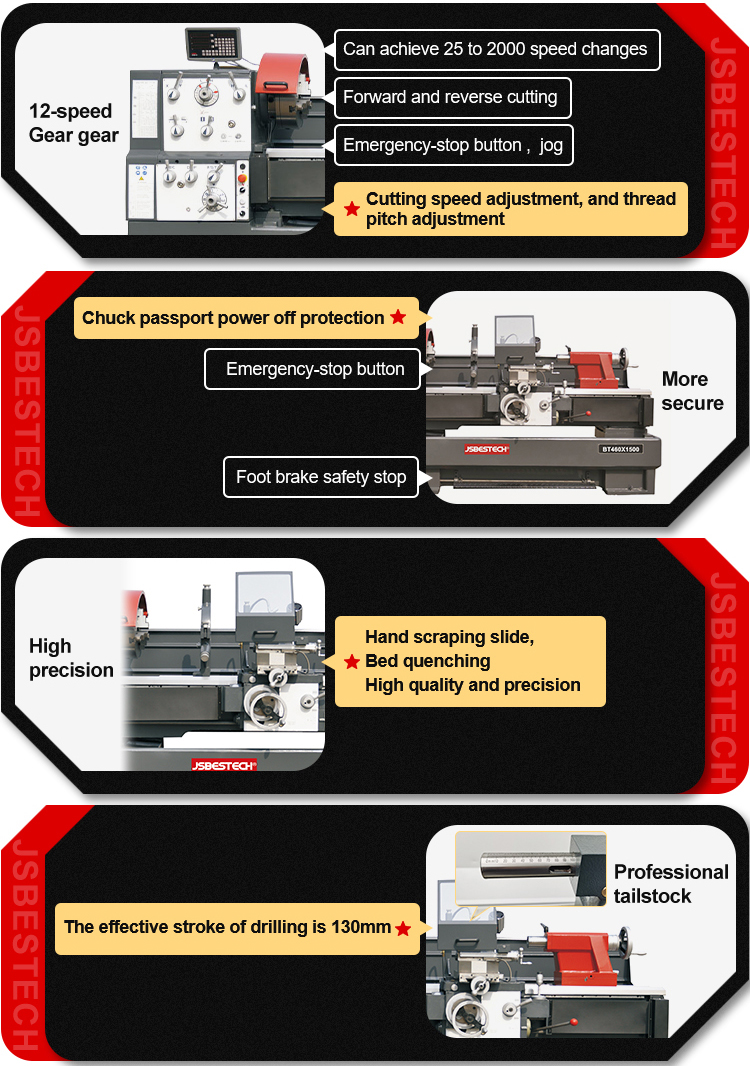

Range of spindle speed |
12changes,25-2000r/min |
|
Compound rest travel |
128mm(5'') |
|
Cross slide travel |
285mm(11-1/4'') |
|
Max.Section of tool |
20x20mm(1''x1'') |
|
Lead screw thread |
6mm or 4T.P.I |
|
Longitudinal feeds range |
42kinds,0.031-1.7mm/rev(0.0011''-0.0633''/rev) |
|
Cross feeds range |
42kinds,0.014-0.784mm/rev(0.00033''-0.01837''/rev) |
|
Threads metric pitches |
41kinds,0.1-14mm |
|
Threads imperial pitches |
60kinds,2-112T.P.I |
|
Threads diametral pitches |
50kinds,4-112DP |
|
Threads module pitches |
34kinds,0.1-7MP |
|
Quill diameter |
60mm(2-5/16'') |
|
Tailstock travel |
130mm(5'') |
|
Tailstock taper |
MT4 |
|
Main motor power |
5.5kw(7.5HP)3PH |
|
Coolant pump power |
0.1kw(1/8HP)3PH |
|
Gross weight |
1910/2115/2295kg |
|

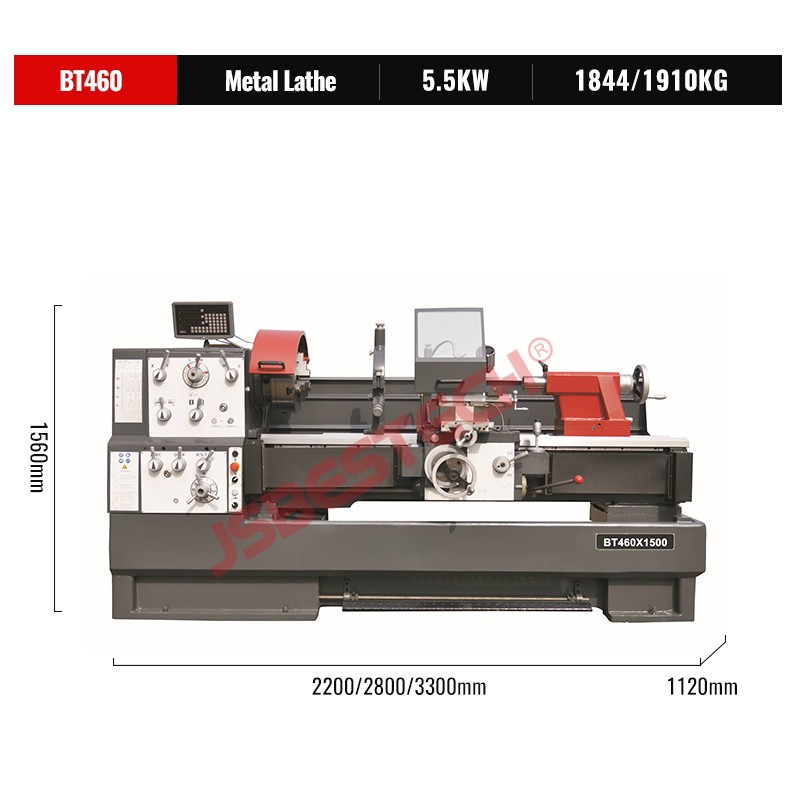

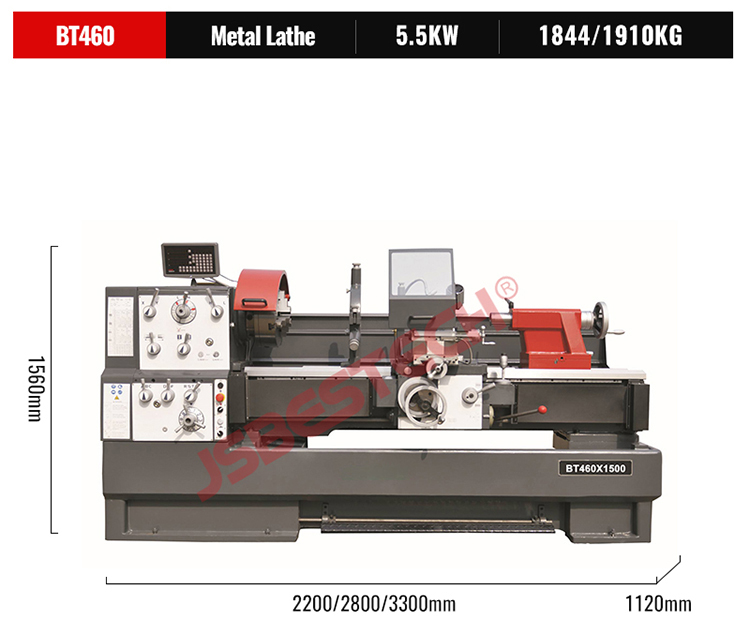

Packing size |
2200/2800/3300x1120x1560mm |
