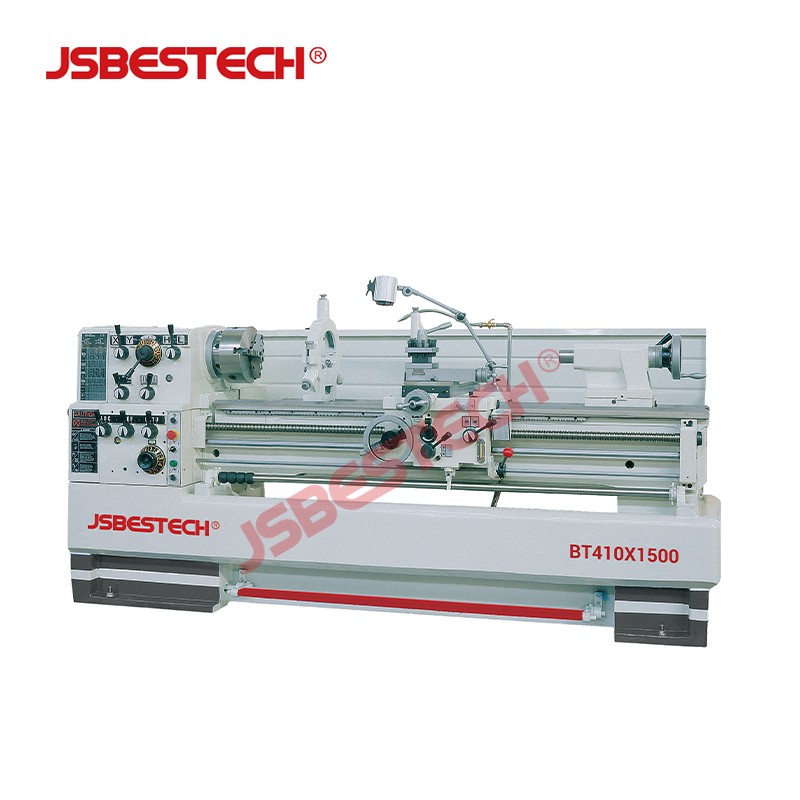

BT410A Manual Lathe Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT410A manual lathe machine, a robust and versatile solution for precision turning operations. Designed for workshops and manufacturing environments, this lathe offers reliable performance and ease of operation.

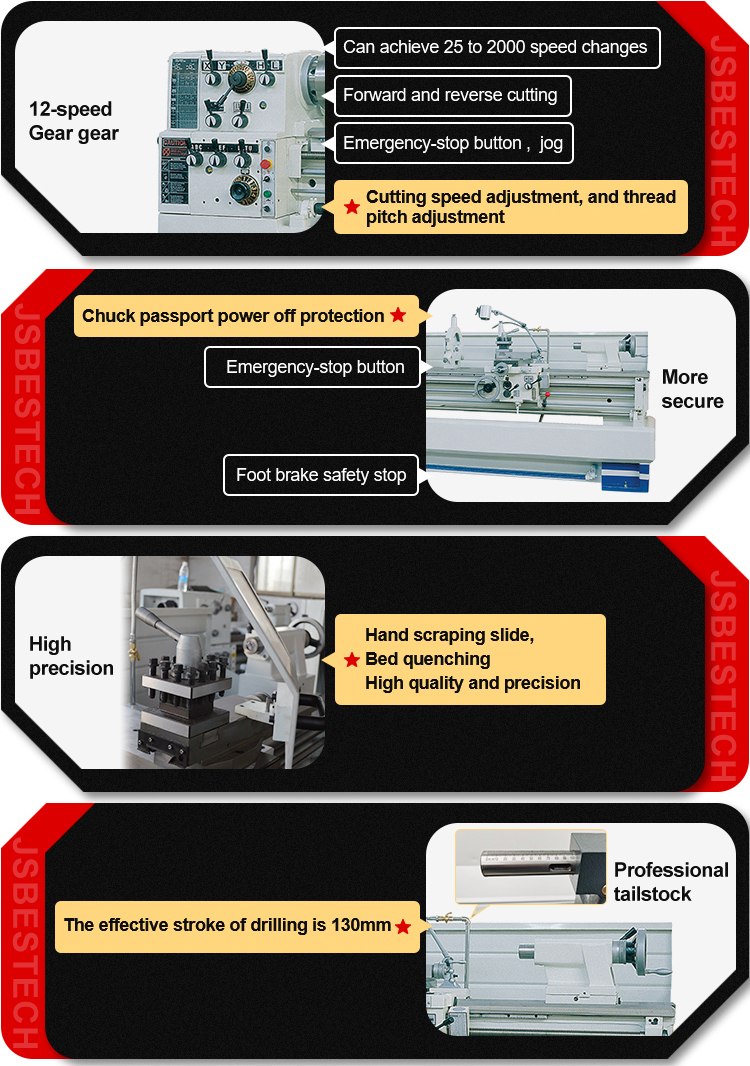

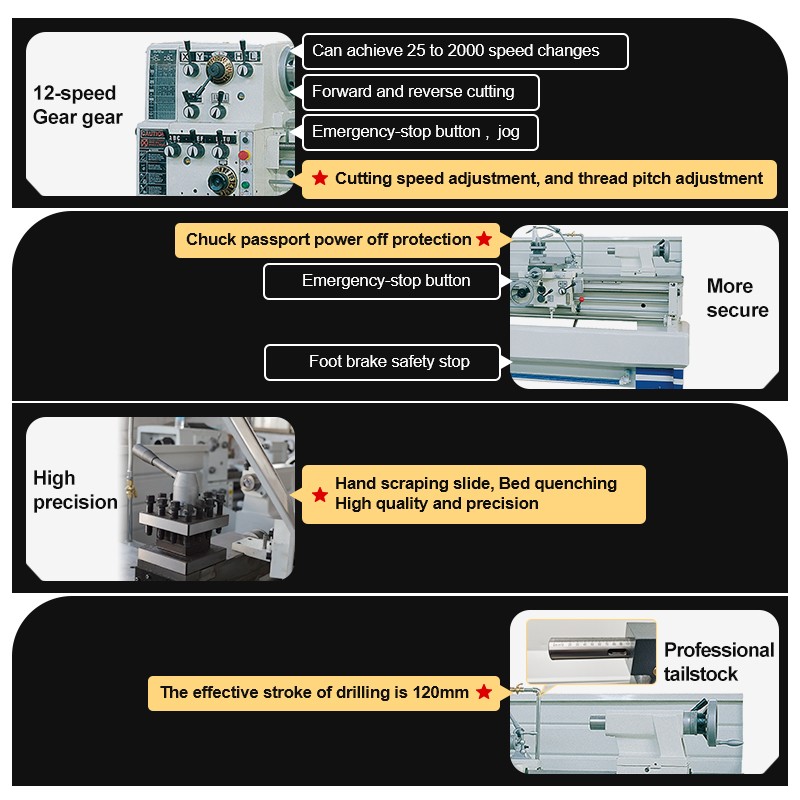

Key Features
- Maximum turning diameter of Ø410mm for handling large workpieces
- Swing over cross slide of Ø220mm
- Swing in gap diameter of Ø640mm with a valid gap length of 165mm
- Distance between centers available in 1000mm, 1500mm, 2000mm, and 3000mm options
- Center height of 205mm and bed width of 300mm for stability
- Spindle nose D1-6 with a spindle bore of Ø58mm and MT6 taper

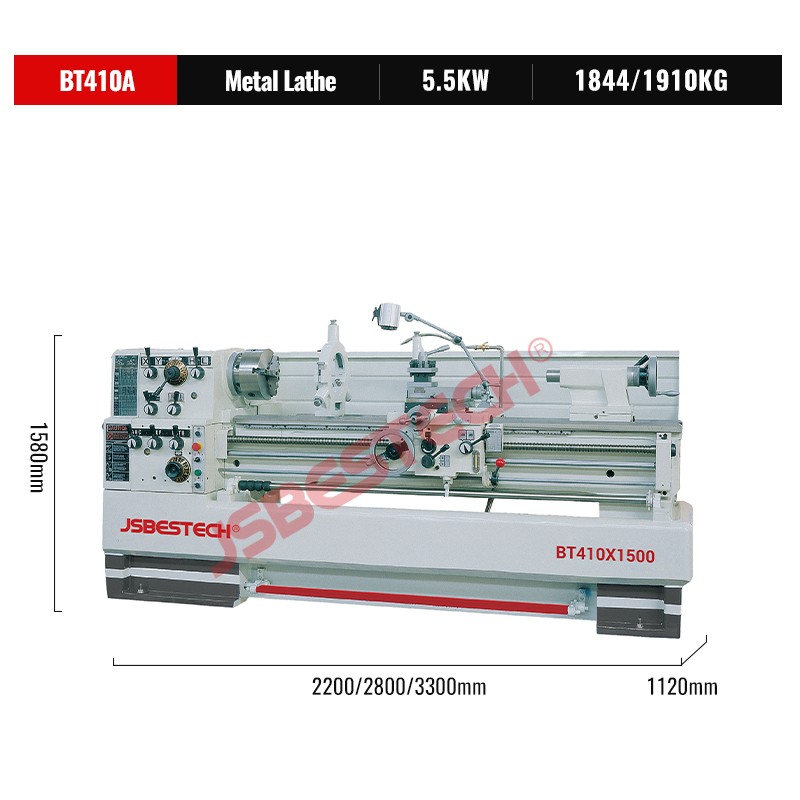

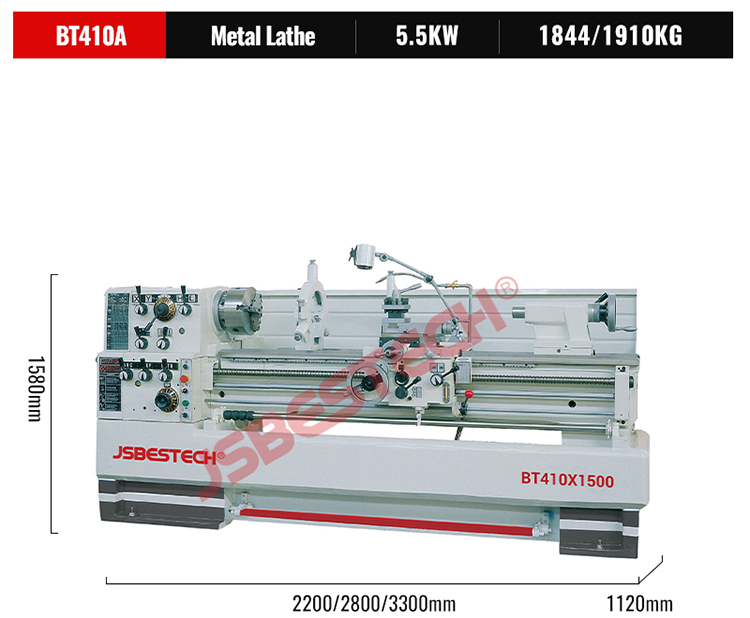

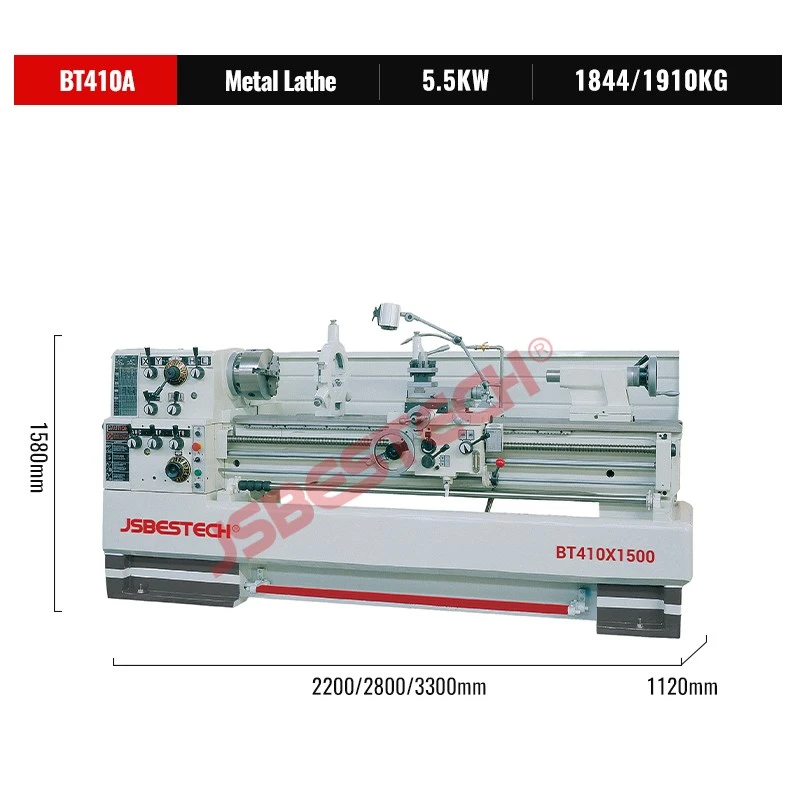

Technical Specifications
| Model | BT410A |
|---|---|
| Turning diameter (Max.) | Ø410mm |
| Swing over cross slide | Ø220mm |
| Swing in gap diameter | Ø640mm |
| Valid length of gap | 165mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Center height | 205mm |
| Width of bed | 300mm |
| Spindle nose | D1-6 |
| Spindle bore | Ø58mm |
| Taper of spindle bore | MT6 |
For more information about the BT410A manual lathe machine, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT410A Manual Lathe Machine?
The BT410A Manual Lathe Machine is a metalworking lathe with a maximum turning diameter of Ø410mm and a swing over cross slide of Ø220mm. It features a spindle bore of Ø58mm with an MT6 spindle taper, and is available with distance between centers of 1000mm, 1500mm, 2000mm, or 3000mm. The lathe has a center height of 205mm and a bed width of 300mm, and includes a gap for larger diameter work. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is designed for manual turning operations.
Applications
- Turning and facing of cylindrical metal workpieces
- Machining of stepped shafts and axles
- Thread cutting and boring operations
- Production of small to medium-sized batches
- General maintenance and repair workshops
- Fabrication of custom parts in job shops
FAQ
What is the maximum turning diameter of the BT410A manual lathe?
The maximum turning diameter is Ø410mm.
What is the spindle bore and taper of the BT410A?
The spindle bore is Ø58mm and the spindle taper is MT6.
What distance between centers options are available for the BT410A?
The BT410A is available with distance between centers of 1000mm, 1500mm, 2000mm, or 3000mm.
What is the swing over cross slide of the BT410A?
The swing over cross slide is Ø220mm.
Who manufactures the BT410A manual lathe?
The BT410A manual lathe is manufactured by Jiangsu Bestech Industrial Co., Ltd.
