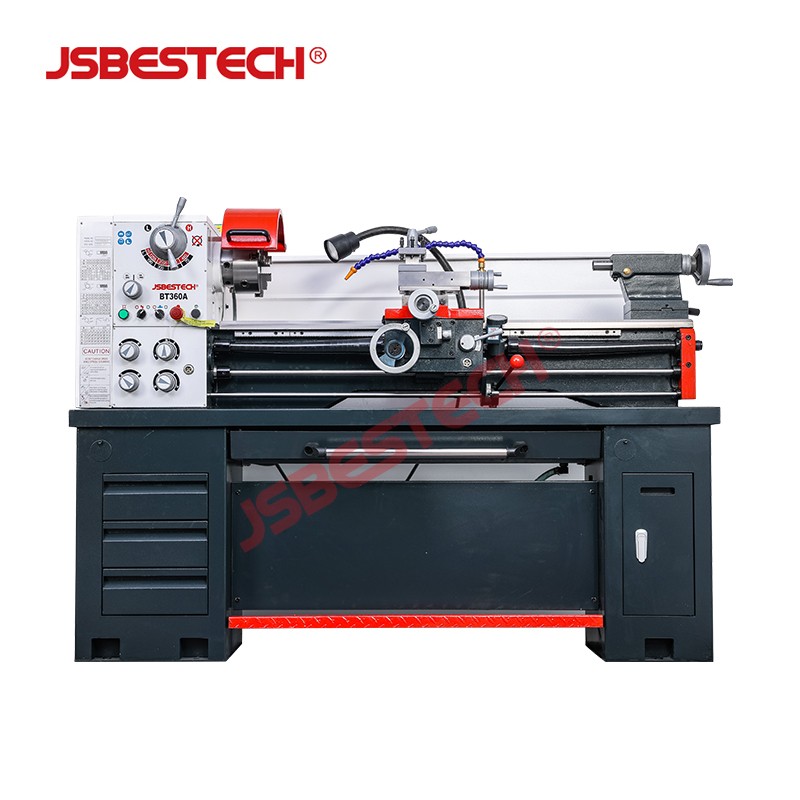

BT360A High Precision Automatic Bench Lathe
The BT360A is a high precision automatic bench lathe engineered for accurate turning, threading and general machining of small to medium workpieces. Built by Jiangsu Bestech Industrial Co., Ltd., it combines a rigid bed, a wide speed range and a compact bench-top footprint, making it suitable for workshops, maintenance departments, training facilities and light production lines.

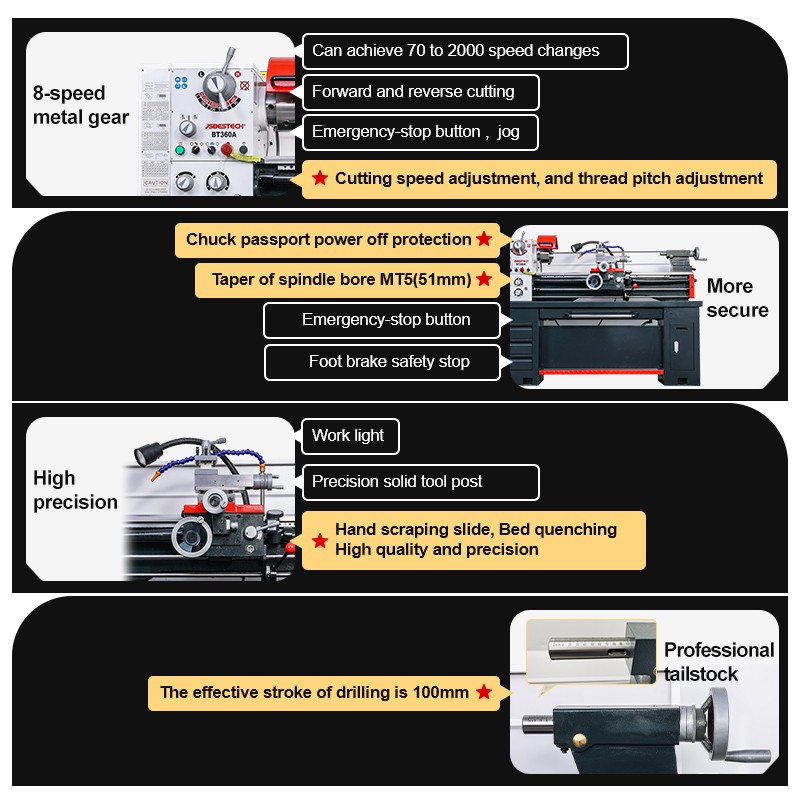

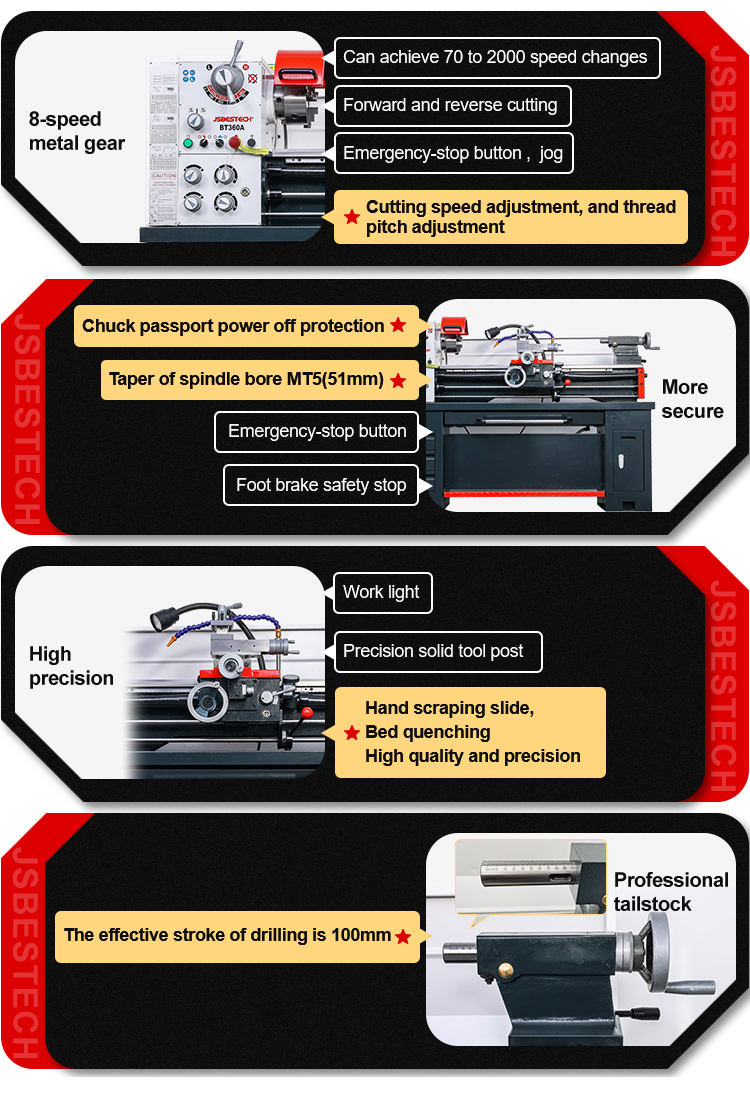

Key Features
- Maximum turning diameter of Ø360 mm for versatile workpiece sizes
- Swing over cross slide of Ø224 mm
- Distance between centers: 1000 mm
- 8-step spindle speed range from 70 to 2000 rpm
- Spindle bore Ø38 mm, with Ø51 mm optional
- Metric thread range 0.4–7 mm (26 kinds) and inch thread range 4–56 T.P.I (34 kinds)
- Motor power 1.5 kW, voltage 380V–440V (3PH)
Construction and Accuracy
The machine features a 187 mm wide bed and a center height of 179 mm, providing a stable foundation for precise cutting. The spindle nose is available in D1-4/D1-5, and the spindle bore taper is MT5. The top slide travel is 95 mm and the cross slide travel is 170 mm, allowing flexible tool positioning. The maximum tool section is 16 x 16 mm.
Threading and Feeding
Threading capability is a core strength of the BT360A. It cuts 26 kinds of metric threads from 0.4 mm to 7 mm and 34 kinds of inch threads from 4 to 56 T.P.I. The lead screw has a diameter of Ø22 mm with a thread of 3 mm or 8 T.P.I, supporting consistent feed and thread accuracy.
Tailstock
The tailstock quill has a diameter of Ø32 mm and a travel of 100 mm, with an MT3 taper. This supports drilling, reaming and center work with reliable alignment.
Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø360 mm |
| Swing over cross slide | Ø224 mm |
| Distance between centers | 1000 mm |
| Center height | 179 mm |
| Width of bed | 187 mm |
| Spindle nose | D1-4/D1-5 |
| Spindle bore | Ø38 mm / Ø51 mm (Optional) |
| Taper of spindle bore | MT5 |
| Spindle speed (8 steps) | 70–2000 rpm |
| Top slide travel | 95 mm |
| Cross slide travel | 170 mm |
| Max. section of tools | 16 x 16 mm |
| Range of metric threads (26 kinds) | 0.4–7 mm |
| Range of inch threads (34 kinds) | 4–56 T.P.I |
| Lead screw diameter | Ø22 mm |
| Lead screw thread | 3 mm or 8 T.P.I |
| Tailstock quill diameter | Ø32 mm |
| Tailstock quill travel | 100 mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5 kW |
| Voltage | 380V–440V (3PH) |

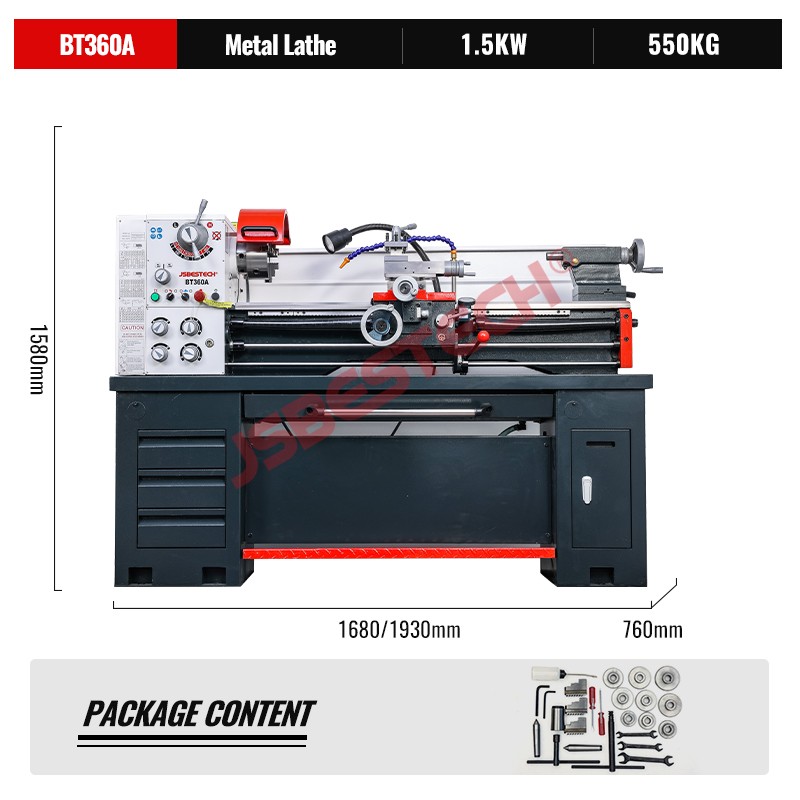

| Packing size | (1680/1930) x 760 x 1580 mm |
Applications
The BT360A is suited to turning shafts, bushings, pins and threaded parts in job shops, vocational training and maintenance operations. Its automatic feed and broad threading range reduce setup time for repetitive work, while the bench design saves floor space.
Ordering Information
For details on configuration, optional spindle bore, voltage and packing, please contact Jiangsu Bestech Industrial Co., Ltd. Specifications are subject to change without notice.
