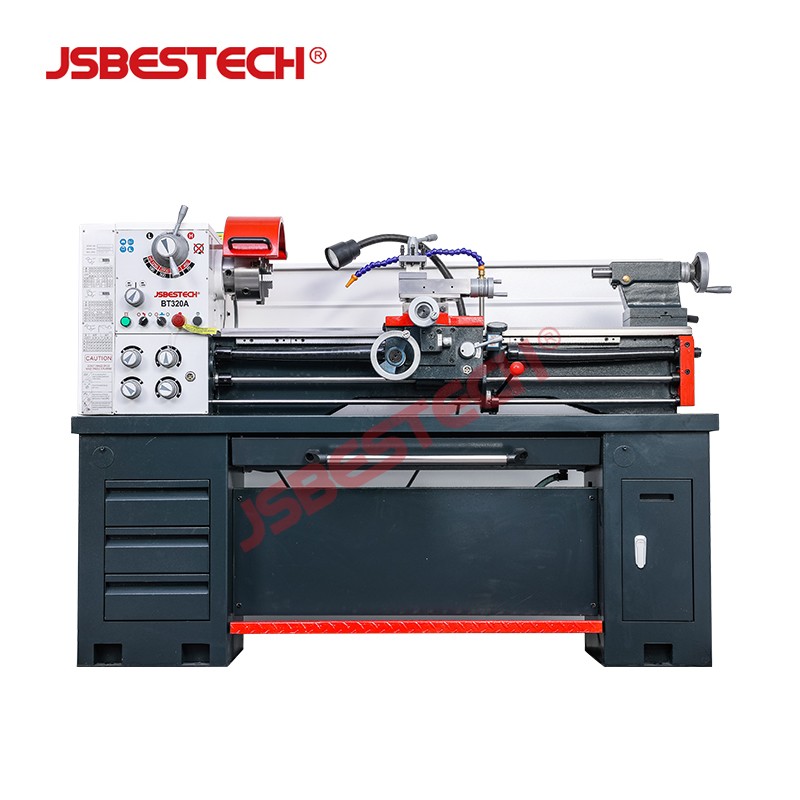

BT320A Series Universal Horizontal Lathe Machine
The BT320A Series is a universal horizontal lathe designed for general turning work in workshops, maintenance facilities and light production environments. It combines a rigid bed structure with a wide spindle speed range, making it suitable for both external and internal turning, facing, threading and drilling operations.
Key Features
- Maximum turning diameter of Ø330mm for a broad range of workpiece sizes
- Distance between centers: 1000mm

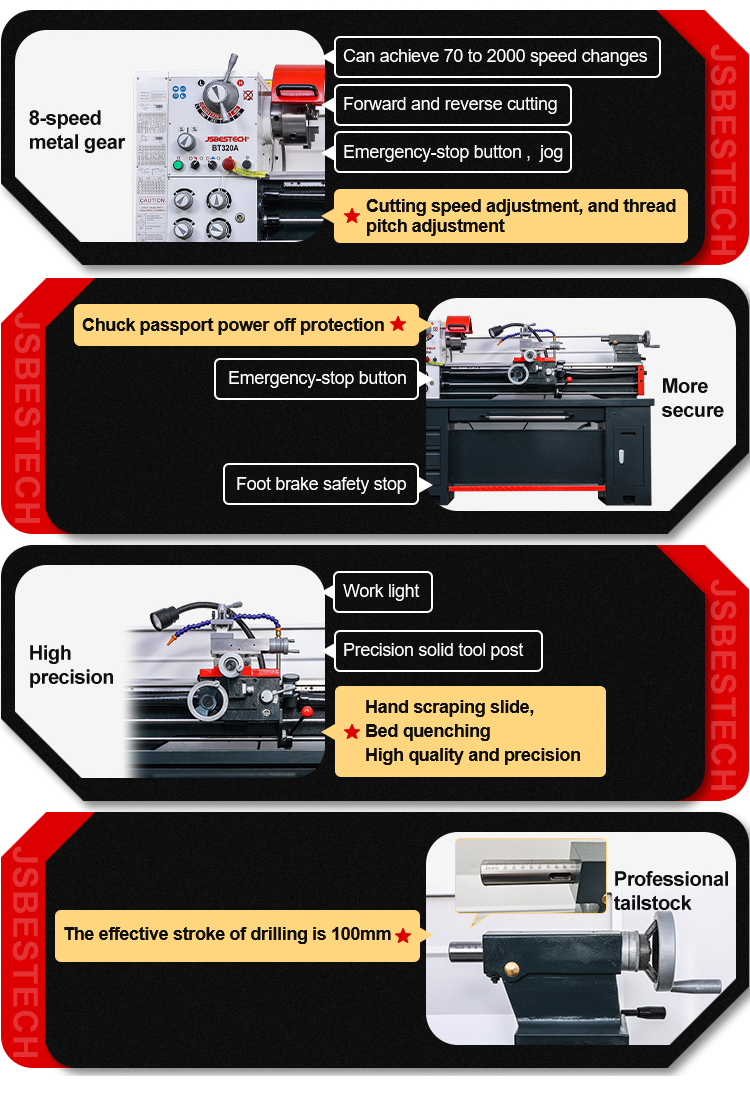

- 8-step spindle speed range from 70 to 2000rpm
- Spindle bore options of Ø38mm or Ø51mm (optional)
- Metric thread range of 0.4~7mm (26 kinds) and inch thread range of 4~56 T.P.I (34 kinds)
- Motor power: 1.5kW
- Voltage: 380V~440V (3PH)
Specifications
| Turning diameter (Max.) | Ø330mm |
|---|---|
| Swing over cross slide | Ø198mm |
| Distance between centers | 1000mm |
| Center height | 166mm |
| Width of bed | 187mm |
| Spindle nose | D1-4/D1-5 |
| Spindle bore | Ø38mm/51mm (Optional) |
| Taper of spindle bore | MT5 |
| Spindle speed (8 steps) | 70~2000rpm |
| Top slide travel | 95mm |
| Cross slide travel | 170mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (26 kinds) | 0.4~7mm |
| Range of inch threads (34 kinds) | 4~56 T.P.I |
| Lead screw diameter | Ø22mm |
| Lead screw thread | 3mm or 8T.P.I |
| Tailstock quill diameter | Ø32mm |
| Tailstock quill travel | 100mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5kW |
| Voltage | 380V~440V (3PH) |

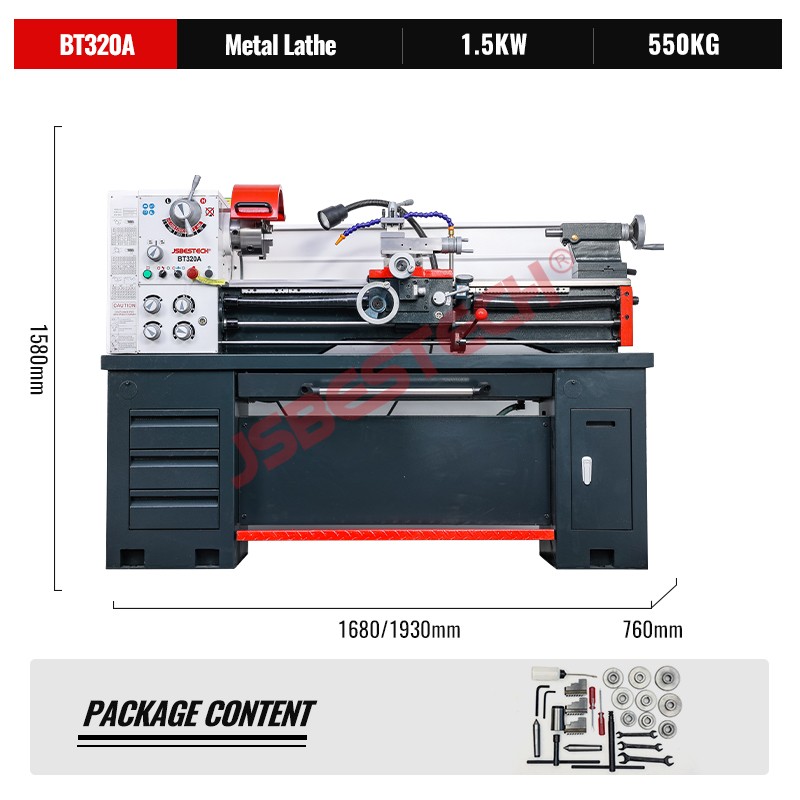

| Packing size | (1680/1930)x760x1580mm |
Applications
The BT320A Series is suitable for general machining tasks such as turning shafts, bushings, discs and threaded components. Its universal design supports a variety of tooling setups, making it a practical choice for job shops, repair workshops and educational settings.
Manufacturer
Jiangsu Bestech Industrial Co., Ltd. manufactures the BT320A Series universal horizontal lathe machine. For further information regarding specifications, options or availability, please contact the manufacturer directly.
