Description

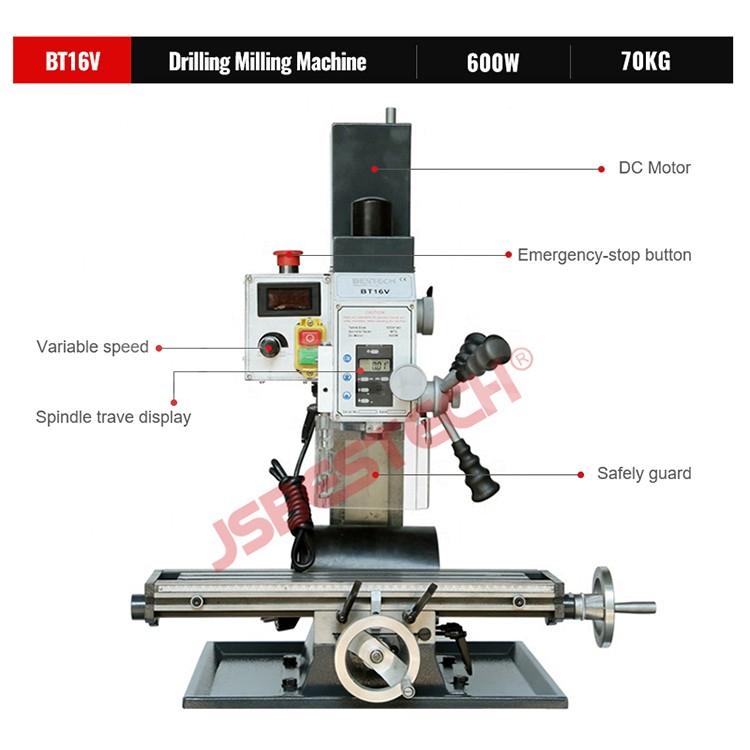

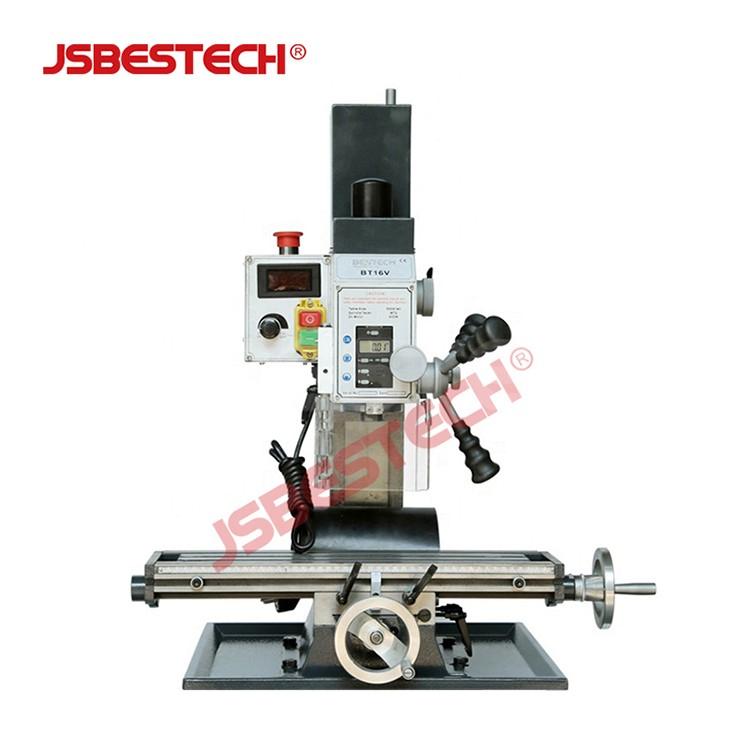

Mini Table Bench Top Drilling MIlling Machine
1.Widely range of applications
2.Two-step gear multiplication
3.Upright laterally adjustable for further applications
4.Possibility of fixing for all travels
5.Height-adjustable screening grid
6.All travels are readable from scales
1.Widely range of applications
2.Two-step gear multiplication
3.Upright laterally adjustable for further applications
4.Possibility of fixing for all travels
5.Height-adjustable screening grid
6.All travels are readable from scales
Model:BT16V
Max. Drilling Capacity:16mm
Max. End Milling Capacity:12mm
Max. Face Milling Capacity:50mm
Table Size:500×140mm
Cross Travel:160mm
Longitudinal Travel:220/320mm
Vertical Travel Z:210mm
T Slot Size:10mm
Spindle Taper:MT2
Spindle Stroke:50mm
Number of Spindle Speeds:Variable
Spindle Speed:50-2250rpm

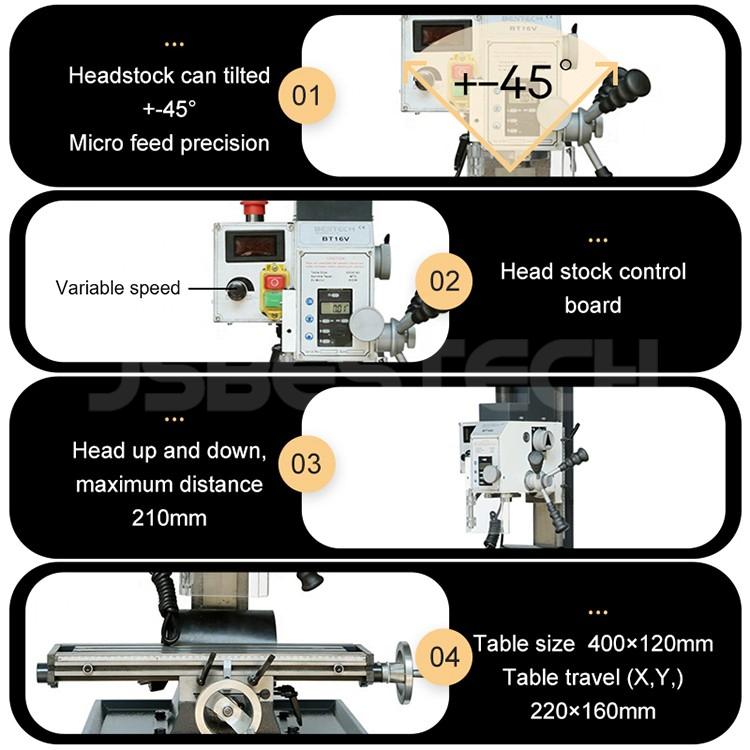

Headstock Tilt Left and Right:90°
Motor:600w
N.W/G.W:78/95kg
Packing Size:670x550x760mm
|
Standard Accessories |
Optional Accessories |
|
1.Drill chuck 2.Draw bar MT2/M10 3.Arbor MT2/B16 4.Digital depth ruler 5.Toolbox & tools 6.Speed display |
1.Keyless drill chuck 3-16mm 2.ER25 6pcs collect chucks 3.Vice 4.Stand Chip tray 5.58pcs clamping kits M8mm 6.End mill 7pcs 4-16mm 7.X-axis power feed for 500mm table 8.Digital readout |
