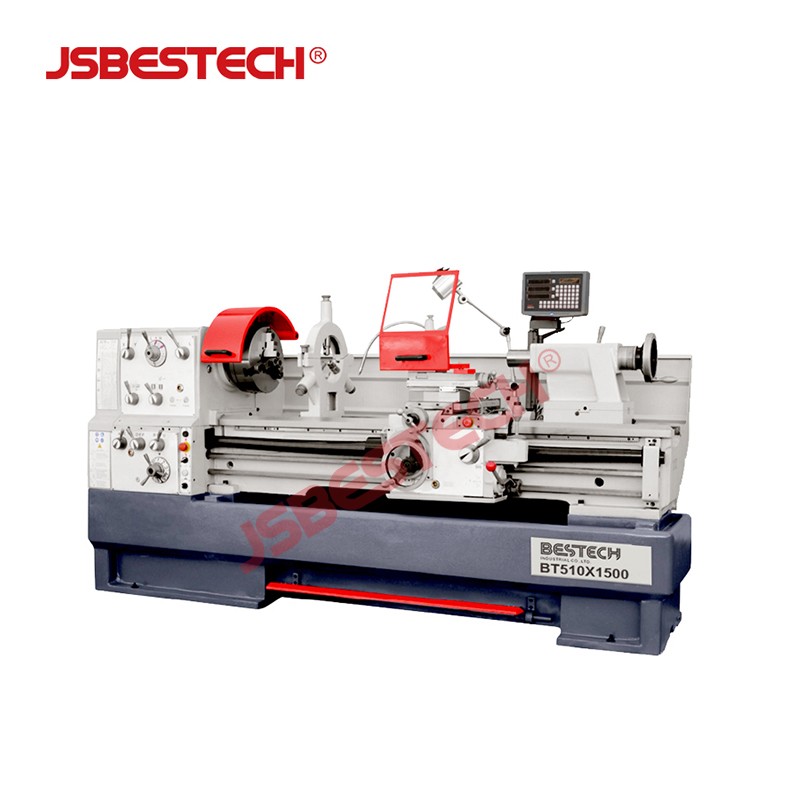

BT510 Heavy Duty Lathe Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT510, a heavy duty lathe machine engineered for demanding metalworking applications. With a large spindle bore and robust construction, this lathe delivers reliable performance for industrial turning operations.
Key Features
- Large spindle bore: Ø80mm standard, Ø105mm optional
- Heavy-duty bed width: 350mm for stability

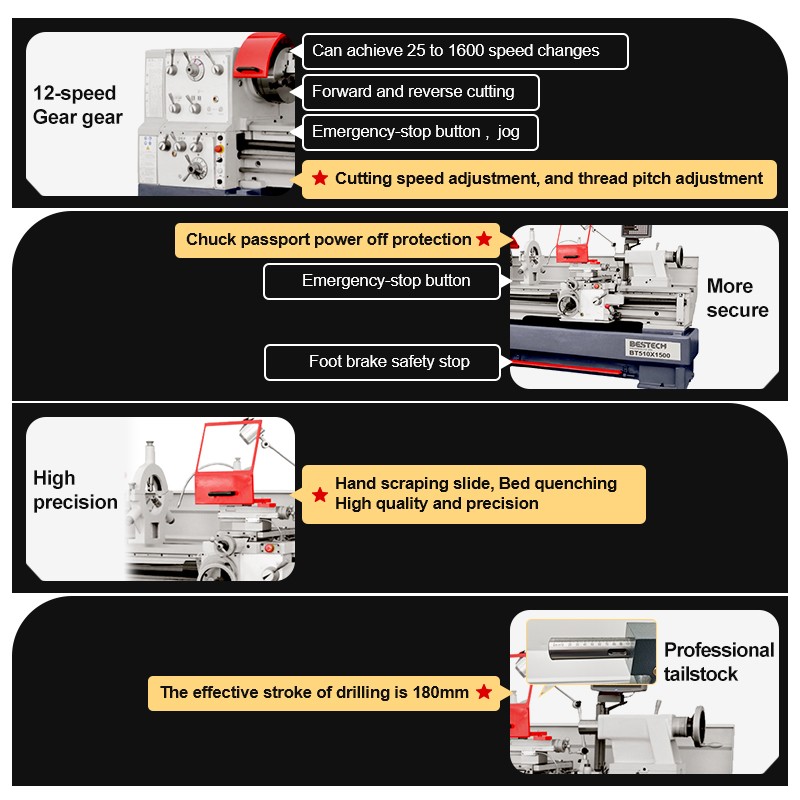

- 12-step spindle speed range: 25~1600rpm
- Metric and inch thread cutting capabilities
- Robust tailstock with Ø75mm quill
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø510mm |
| Swing over cross slide | Ø305mm |
| Swing in gap diameter | Ø735mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Center height | 255mm |
| Width of bed | 350mm |
| Spindle nose | D1-8 |
| Spindle bore | Ø80mm/105mm (Optional) |
| Taper of spindle bore | MT7/113(1:20) (Optional) |
| Spindle speed (12 steps) | 25~1600rpm |
| Top slide travel | 130mm |
| Cross slide travel | 316mm |
| Max. section of tools | 25x25mm |
| Range of metric threads (47 kinds) | 0.2~14mm |
| Range of inch threads (60 kinds) | 2~112T.P.I |
| Lead screw thread | 6mm or 4T.P.I |
| Tailstock quill diameter | Ø75mm |
| Tailstock quill travel | 180mm |
| Taper of tailstock quill | MT5 |
| Motor power | 7.5kw |
| Coolant pump motor | 100w |
| Voltage | 380V~440V (3PH) |

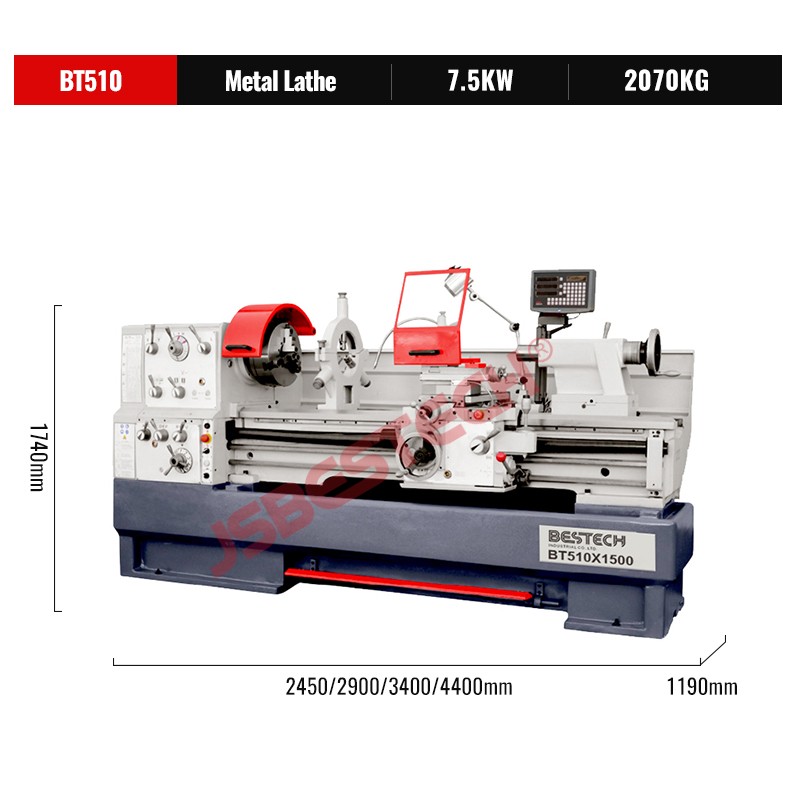

| Packing size | (2450/2900/3400/4400)x1190x1740mm |
Applications
The BT510 is suitable for a wide range of turning operations, including cylindrical turning, facing, threading, and drilling. Its heavy-duty design makes it ideal for workshops, repair facilities, and manufacturing plants requiring a reliable lathe for large workpieces.
Optional Configurations
To meet specific machining requirements, the BT510 can be equipped with an optional larger spindle bore (Ø105mm) and corresponding spindle taper. Please consult with our technical team for customization options.
For more information about the BT510 heavy duty lathe machine, please contact Jiangsu Bestech Industrial Co., Ltd.
What is With big spindle BT510 Taiwan heavy duty lathe machine?
The With big spindle BT510 Taiwan heavy duty lathe machine is a metalworking lathe designed for heavy-duty turning operations. It features a maximum turning diameter of Ø510mm, a swing over cross slide of Ø305mm, and a swing in gap diameter of Ø735mm. The machine is equipped with a large spindle bore of Ø80mm (optional Ø105mm) and offers 12 spindle speed steps ranging from 25 to 1600rpm. It is suitable for machining large and heavy workpieces in various industrial settings.
Applications
- Heavy-duty turning of large shafts, rolls, and cylinders
- Machining of flanges, discs, and large-diameter parts
- Thread cutting including metric and inch threads
- General metalworking in job shops and manufacturing plants
- Maintenance and repair operations in heavy industries
FAQ
What is the maximum turning diameter of the BT510 lathe?
The maximum turning diameter is Ø510mm.
What is the spindle bore size of this lathe?
The standard spindle bore is Ø80mm, with an optional Ø105mm.
What is the range of spindle speeds?
The spindle speed range is 25 to 1600rpm with 12 steps.
What is the motor power of the BT510 lathe?
The main motor power is 7.5kW.
What is the distance between centers available?
The distance between centers options are 1000mm, 1500mm, 2000mm, and 3000mm.
