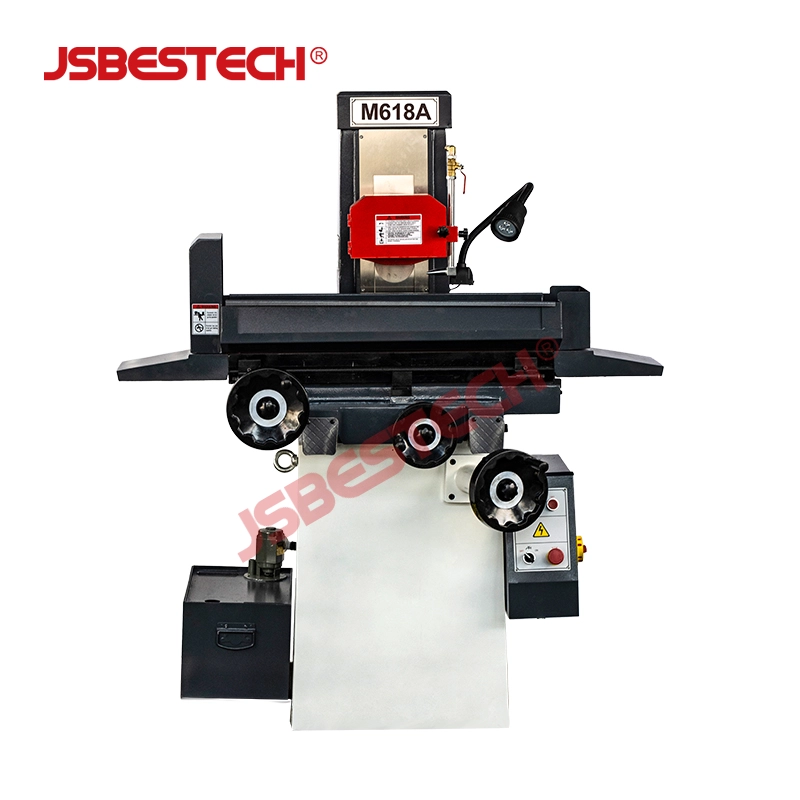

High-Precision M618A Surface Grinder for Mold Fine Machining
The M618A surface grinder from Jiangsu Bestech Industrial Co., Ltd. is engineered for high-precision mold fine machining. With a compact 460×180mm table and robust construction, it delivers reliable performance for tool rooms and production environments.
Key Specifications
- Table Size: 460×180mm
- Max. Distance from Table to Spindle Center: 335mm
- Maximum Load Capacity (including suction cups): 100kg
- Maximum Travel Front and Back: 190mm
Applications
This surface grinder is ideal for mold fine machining, where precision and surface finish are critical. It is suitable for grinding various materials, including hardened steel, carbide, and non-ferrous metals. The M618A ensures accurate dimensional control and smooth surface finishes, making it a valuable asset for mold makers and precision engineers.
Design and Construction
The M618A features a rigid cast iron base and column, providing excellent vibration damping and thermal stability. The table moves on precision-ground guideways, ensuring smooth and accurate movement. The spindle is supported by high-precision bearings, delivering consistent grinding results even under heavy loads.
Why Choose the M618A?
- High-precision grinding for mold and die applications
- Compact table size (460×180mm) for small to medium workpieces
- Maximum load capacity of 100kg (including suction cups)
- Generous spindle center distance (335mm) for versatile setups
- 190mm front-to-back travel for flexible positioning
Jiangsu Bestech Industrial Co., Ltd. is a leading manufacturer and exporter of surface grinders and industrial machinery. The M618A is built to meet the demands of precision machining, with a focus on durability, accuracy, and ease of operation.
For more information about the M618A surface grinder or to discuss your specific requirements, please contact our sales team.
What is High-precision M618A 460x180mm Table Size Surface Grinder for Mold Fine Machining?
The M618A is a high-precision surface grinder with a 460×180 mm table, designed for fine machining of molds and precision parts. It offers a maximum distance of 335 mm from table to spindle center and a maximum table load capacity of 100 kg (including suction cups). The machine provides a maximum longitudinal travel of 190 mm, supporting accurate surface grinding operations.
Applications
- Fine grinding of mold components and inserts
- Precision surface finishing of metal workpieces
- Tool room and die maintenance operations
- Small to medium batch production of flat parts
- Grinding of hardened steel and similar materials
FAQ
What is the table size of the M618A surface grinder?
The table size is 460×180 mm.
What is the maximum load capacity of the workbench?
The maximum load capacity of the workbench is 100 kg, including suction cups.
What is the maximum distance from the table to the spindle center?
The maximum distance from the table to the spindle center is 335 mm.
What is the maximum travel before and after?
The maximum travel before and after is 190 mm.
