Description
| Model | BT460 |
| Turning diameter (Max.) | Ø460mm |
| Swing over cross slide | Ø270mm |
| Swing in gap diameter | Ø690mm |
| Valid length of gap | 165mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Center heigh | 230mm |
| Width of bed | 300mm |
| Spindle nose | D1-8 |
| Spindle bore | Ø80mm |
| Taper of spindle bore | MT7 |

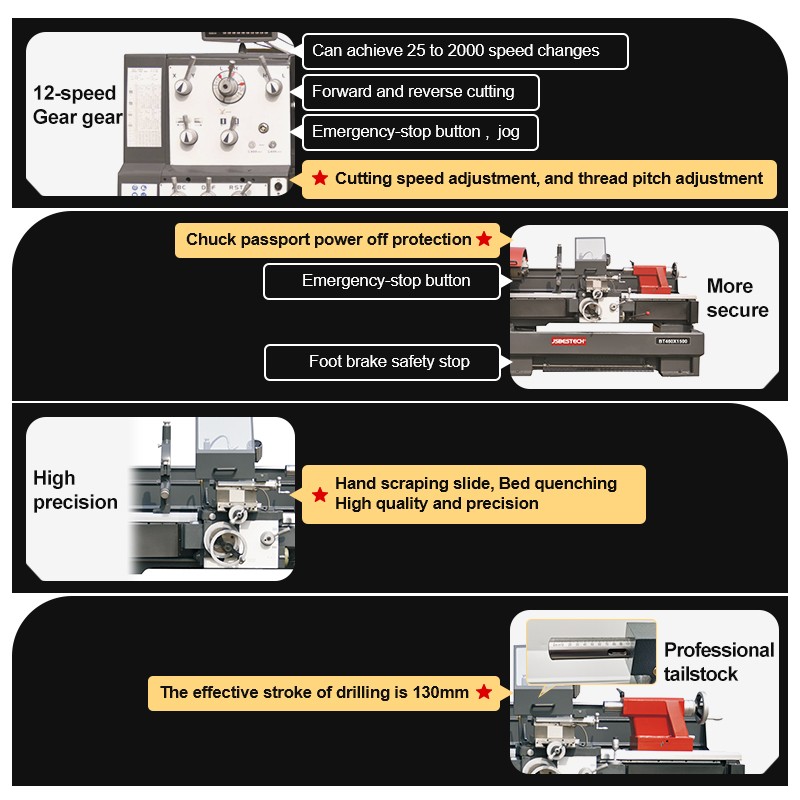

| Spindle speed (12 steps) | 25~2000rpm |
| Top slide travel | 128mm |
| Cross slide travel | 285mm |
| Max. section of tools | 25x25mm |
| Range of metric threads (41 kinds) | 0.1~14mm |
| Range of inch threads (60 kinds) | 2~112T.P.I |
| Lead screw thread | 6mm or 4T.P.I |
| Tailstock quill diameter | Ø60mm |
| Tailstock quill travel | 130mm |
| Taper of tailstock quill | MT4 |
| Motor power | 5.5kw |
| Coolant pump power | 100w |
| Voltage | 380V~440V (3PH) |

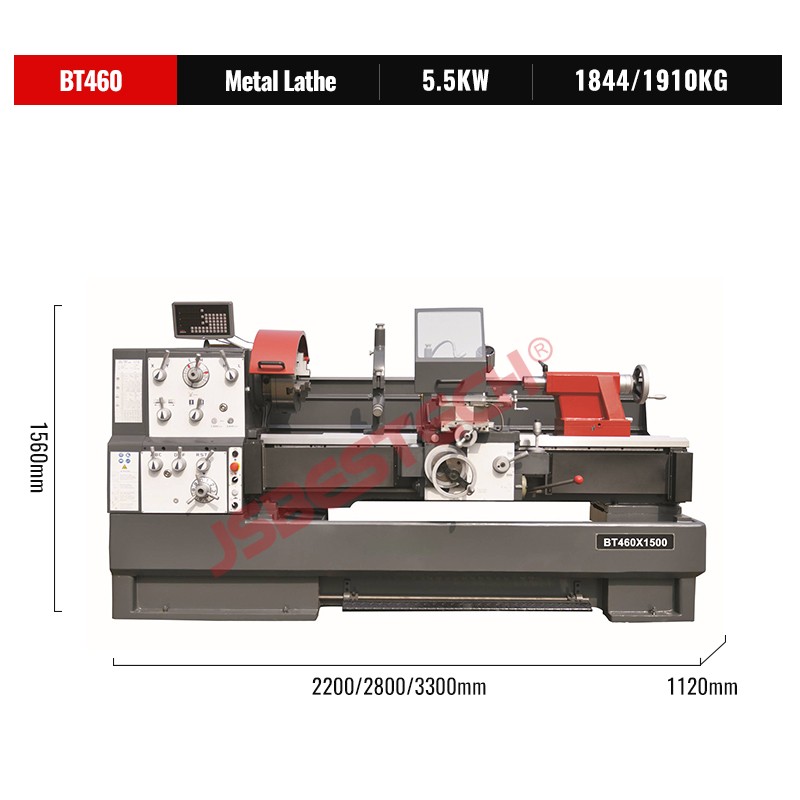

| Packing size | (2200/2800/3300)x1120x1560mm |
