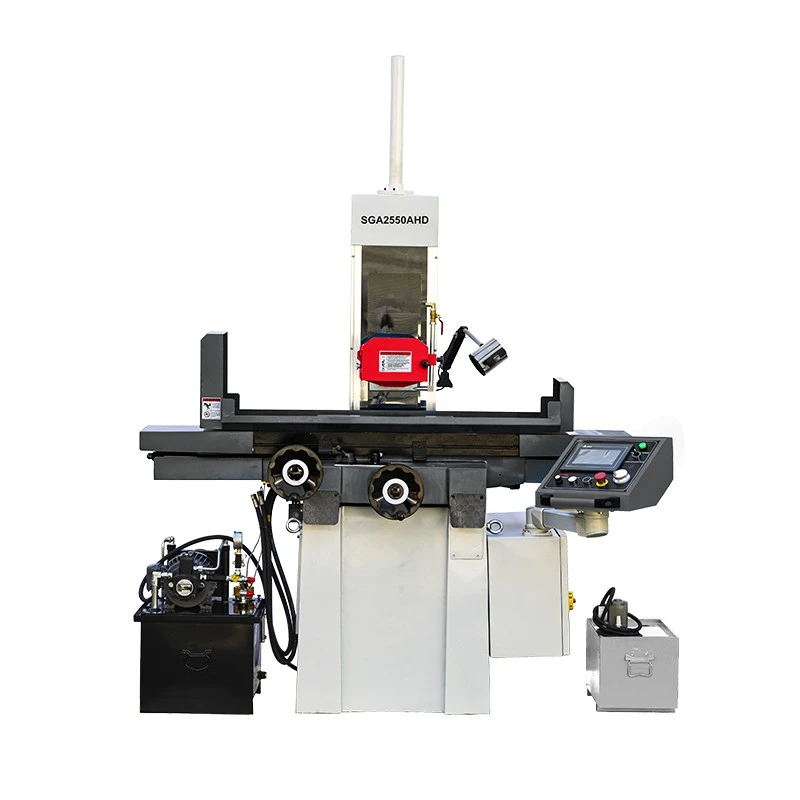

Anti-deformation Precision SGA2550AHD Up and Down Servo Automatic Control Surface Grinder
Jiangsu Bestech Industrial Co., Ltd. presents the SGA2550AHD, a precision surface grinder engineered for tungsten carbide workpiece grinding. This model combines an up and down servo automatic control system with a robust anti-deformation structure, delivering stable and accurate grinding performance for demanding industrial applications.
Key Features
- Anti-deformation design: The machine structure is optimized to minimize deformation during operation, ensuring consistent grinding results even under continuous use.
- Up and down servo automatic control: The vertical feed axis is driven by a servo motor with automatic control, providing precise and repeatable downfeed for precise material removal.
- Precision surface grinding: Ideal for tungsten carbide workpieces, the grinder delivers fine surface finishes and tight tolerances.
- Sturdy construction: Built with high-quality materials to withstand rigorous industrial environments.
Technical Specifications
- Table size (W×L): 254 × 508 mm
- Max. longitudinal travel: 560 mm
- Cross travel: 275 mm
- Max. distance from spindle center to table: 450 mm
Additional attributes such as size, color, weight, and brand can be customized or specified according to customer requirements. For detailed information, please refer to the product documentation or contact our sales team.
Applications
The SGA2550AHD is particularly suited for grinding tungsten carbide workpieces, but its precision and reliability also make it suitable for a wide range of surface grinding tasks in tool rooms, mold shops, and production environments.
With its combination of anti-deformation construction and servo-controlled downfeed, this surface grinder offers a reliable solution for achieving high-precision results. Jiangsu Bestech Industrial Co., Ltd. is committed to providing quality grinding machines that meet the needs of modern manufacturing.
What is Anti-deformation Precision SGA2550AHD Up and Down Servo Automatic Control Surface Grinder for Tungsten Carbide Workpiece Grinding?
The SGA2550AHD is a precision surface grinder with servo-controlled up and down automatic feed, designed for grinding tungsten carbide workpieces. It features a 254×508 mm table, 560 mm maximum longitudinal travel, 275 mm cross travel, and a maximum spindle center-to-table distance of 450 mm. Its anti-deformation structure helps maintain accuracy during demanding grinding operations. The machine is manufactured by Jiangsu Bestech Industrial Co., Ltd.
Applications
- Precision grinding of tungsten carbide workpieces
- Surface finishing of hardened tooling components
- Flat grinding of dies and molds
- Grinding of cutting tools and inserts
- Production grinding requiring automatic vertical feed control
FAQ
What is the table size of the SGA2550AHD surface grinder?
The table size is 254 mm × 508 mm (width × length).
What is the maximum longitudinal travel of this machine?
The maximum longitudinal travel is 560 mm.
What is the cross travel of the SGA2550AHD?
The cross travel is 275 mm.
What is the maximum distance from the spindle center to the table?
The maximum distance from the spindle center to the table is 450 mm.
What type of control does the SGA2550AHD use?
It uses servo automatic control for up and down feed.
