Description

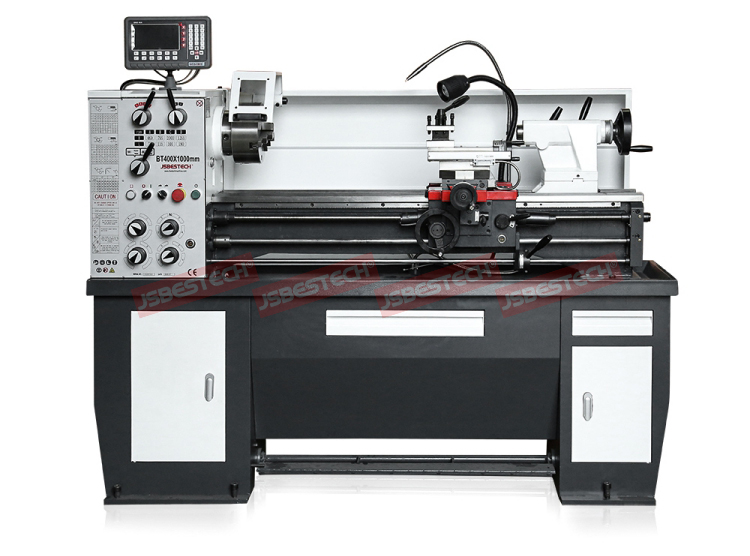

BT400 Heavy duty metal torno Lathe Machine
. Ideal for processing of steel, non-ferrous metals and plastics
· Electro-magnetic foot brake reduces downtime
· Hardened and polished toothed gears also in feed drive
· Practical, solid machine featuring a lead screw and feed rod
· Grey cast-iron machine bed, inductively hardened and precisely polished
· State-of-the-art spindle bedding with high-quality, angular ball bearings
· Machine base in heavy cast iron construction
· Easy, smooth and precisely adjustable speed and feed settings
· Pull-out chip tray allows for minimum space requirements
· Removable bridge for processing of work pieces with a large diameter
· Serially equipped with slip clutch
Model |
BT400 |
Max.swing over bed |
400 |
Max.swing over cross slid |
248mm |
Swing in gap diameter |
560mm |
Height of center |
200mm |
Admist between |
1000mm |
Width of bed |
205mm |
Cutting tool max section |
16*16mm |
Cross slide width |
140mm |
Cross slide travel |
208mm |
Spindle bore |
52mm |
Spindle morse taper in bore |
D1-5 |
Spindle taper |
MT6 |
Spindle speed range |
70-2000R.P.M.(35-2000R.P.M.);30-2500R.P.M |
motor |
3HP,3PH |
Coolant pump motor |
1/8 HP,3PH |
Packing size(LxWxH) |
1940x800x1600mm |
Machine size(LxWxH) |
1930x800x1258mm |
Net weight |
690kg |
Gross weight |
820kg |
