Description

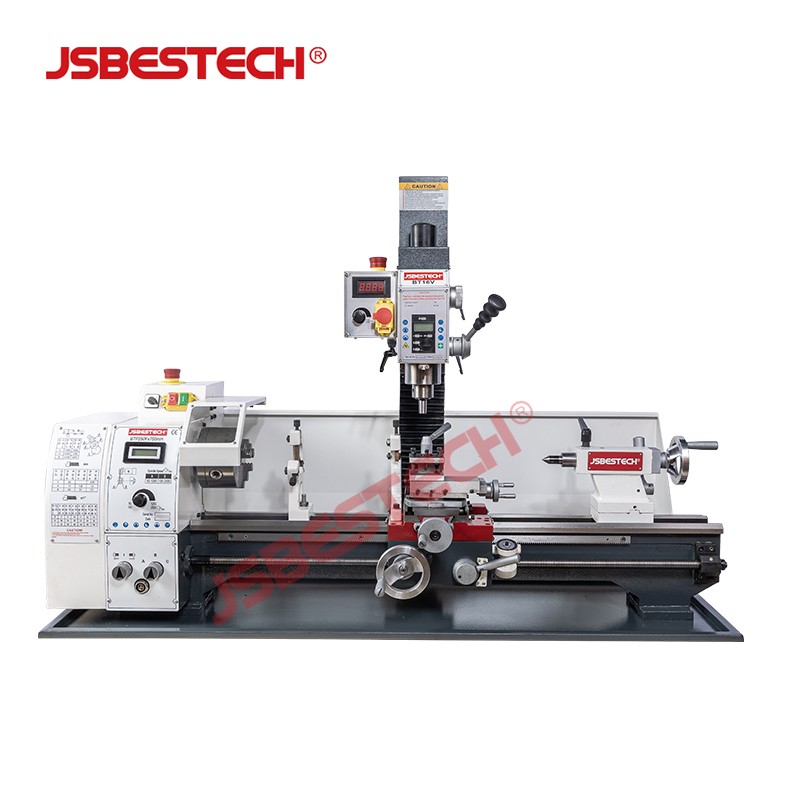

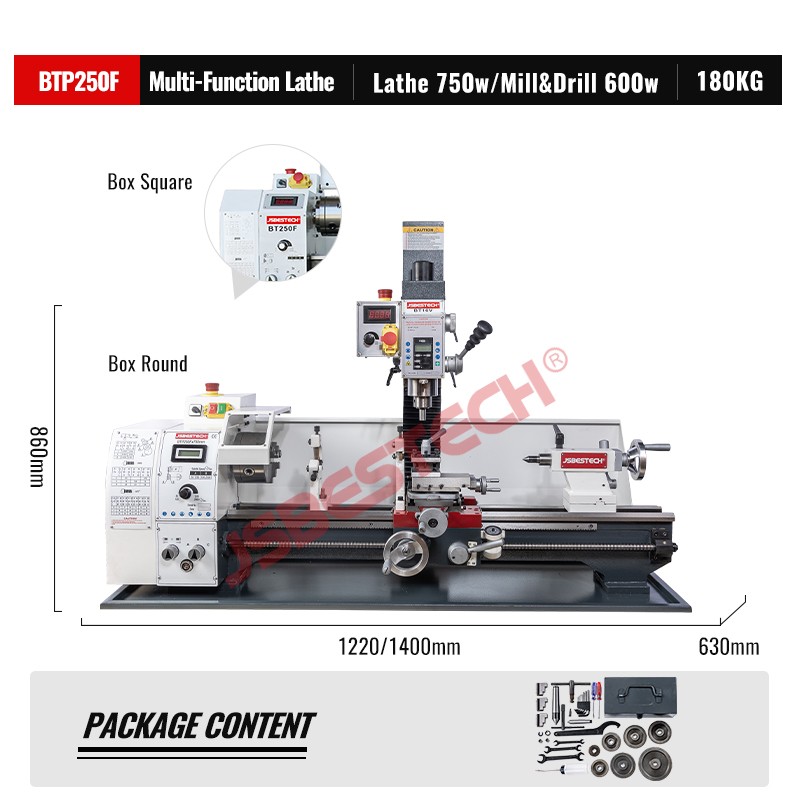

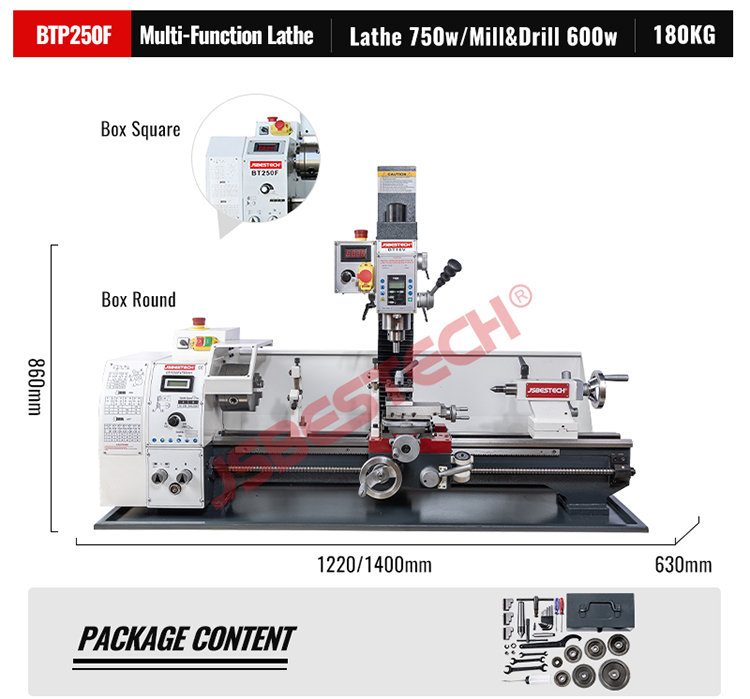

BTP250F Lathe Milling Combo Machine Technical Date | ||
Lathe Machine Dates | Electrical Connection | 110V--380V / 50--60Hz |
Lathe Motor Power | 750W | |
MIlling Machine Dates | Drill Motor Power | 600W |
Max. drilling capacity | Max. Ø16 | |
Milling cap of end mill cutting head | Max. 52mm | |
Taper of spindle bore | MT2 (Stroke 52mm) | |
Spindle speed | 50~2250r.p.m. | |
Working Areas | Centre Height | 125mm |
Turning Diameter (Max.) | 250mm | |
Bed Width | 135mm | |
Distance Between Centers | 750mm | |
Lathe Speeds | Electronically adjustable speed | 50--2500 r.p.m. |
Headstock | Spindle Taper | MT 3 |
Spindle Drilling | φ26mm | |
Slide | Travel Top Slide | 65mm |
Travel Cross Slide | 115mm | |
Range Of Metric Threads | 0.2-3.5mm | |
Range Of Inch Threads | 8-56T.P.l | |
Tool Holder Seat Height | MAX.12mmX12mm | |
Tailstock | Tailstock Taper | MT 2 |
Tailstock Sleeve Travel | 60mm |

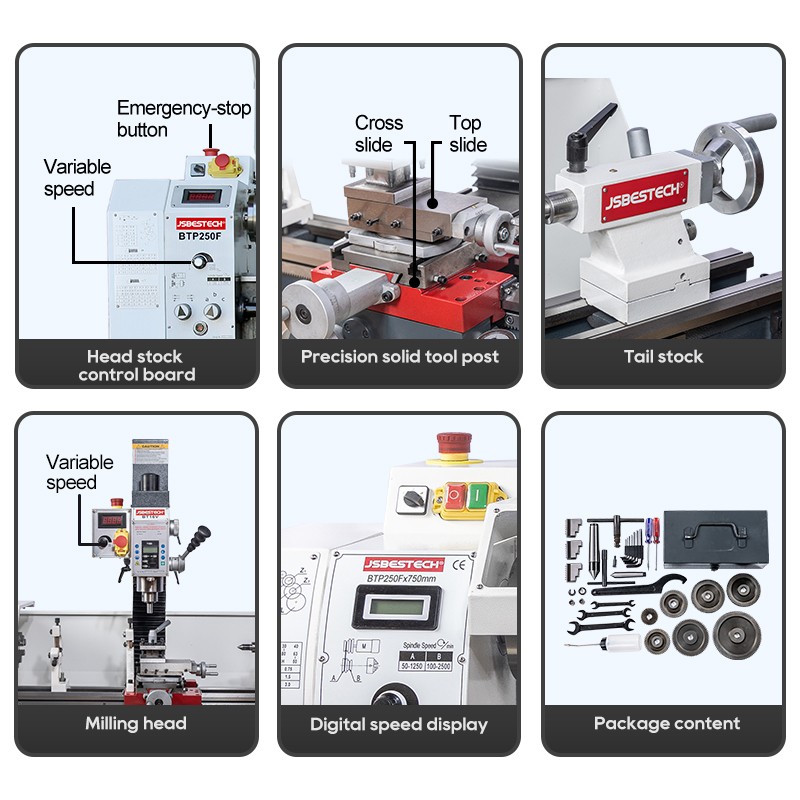

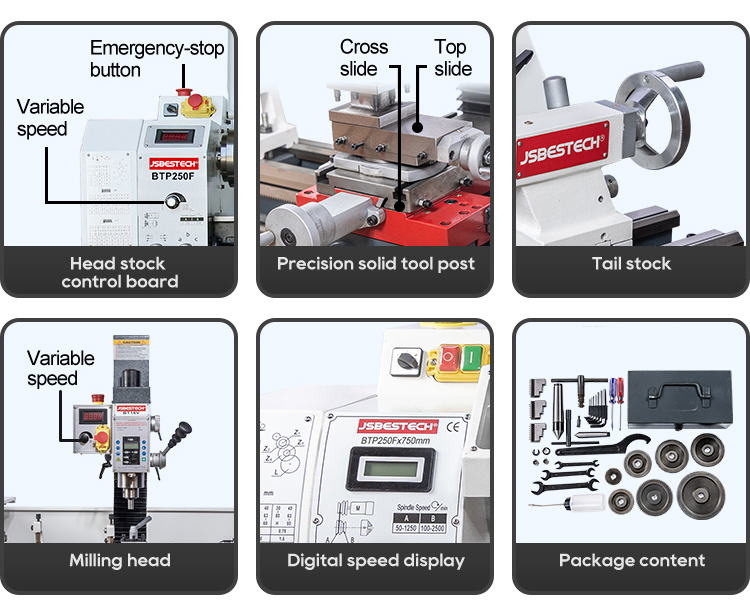

Standard Accessories |
Optional Accessories |
1. Oil can 2. Chip tray 3. Wrench set 4. 3-jaw chuck 5. Splash guard 6. Toolbox &tools 7. Change gear set 8. MT2 Dead center |
1. Stand 2. Face plate 3. 4-jaw chuck 4. Follow rest 5. Steady rest 6. Rolling center 7. Tool post cover 8. Lead screw cover 9. Rolling center 10. Stand 11. Keyless chuck 1-13mm 12. Collect chuck 13. Working lamp |
Jiangsu Bestech Industrial Co, Ltd. is a professional machine tool supplier with 15 years experience.We are concentrated in
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, Milling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
